Aluratek ADMPF310F Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 15 Minuten

Einleitung

This guide will walk you through how to replace the screen to your digital frame. This is one of the most simplest guides and doesn't take a lot of time at all.

  1. lGJUlhMQZQWPCDZU
    lGJUlhMQZQWPCDZU
    SkSZWDtqUU5FddBJ
    CfXUpSFiYLGTpPBr

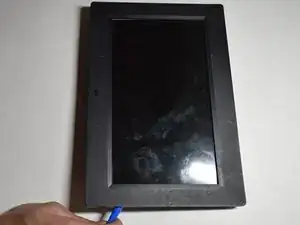

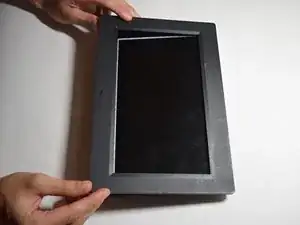

    • Using the plastic opening tool, pry off the clips all around the frame. You will hear a popping sound for every clip

    • Be sure not to pry to hard because you could crack or break the plastic facing of the device.

  2. TTYHZwsTBJZ1IUmA

    • Lift screen out of place so you can access the plugs that connect it.

    • Be careful not to pull the screen to far away when placing to the side, many fragile wires are connected.

  3. WWthWcQAY1aMkH1T
    WWthWcQAY1aMkH1T
    DoagvK2wsRiDwDtS

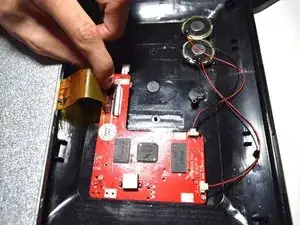

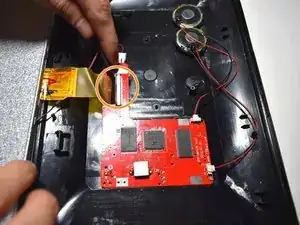

    • Using the plastic spudger tool lift the plastic zif(zero instertion force) connector clip up.

    • Pull the ribbon cable away from the motherboard.

    • Be careful as this clip is very frail.

  4. mpXLhQmil6pQ2owN

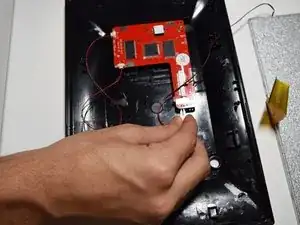

    • Disconnect the red and black cable connecting the screen to the motherboard by just pulling it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
