Amazon Echo Dot 3rd Generation Speaker Replacement

Geschrieben von: Elaina Moore
  • Kommentare: 1
Amazon Echo Dot 3rd Generation Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

If the speaker of your Amazon Echo Dot 3rd Generation sounds muffled or is distorted in any way, the speaker may need to be replaced. Follow this guide to do so.

The cone shape of your Echo Dot allows your speaker to transmit Alexa's voice in an echo that should ideally carry through the room your device is in.

Check the speaker for other potential causes of sound disruption. Potential causes may include the mesh surrounding your Echo Dot being clouded with debris. Your Echo Dot could also be too close to another device such as a microwave that will cause interference.

Before attempting, make sure the Echo Dot is turned off and unplugged from the external power source.

  1. dFICfdfqoVdEJqU1
    dFICfdfqoVdEJqU1
    B12OPUxDHXYHy5LU
    MRxkiTpSEqRQGPjg

    • Turn your Echo Dot over so that the barcode is facing upward.

  2. 4HUUFqCUIHV5BcZN
    4HUUFqCUIHV5BcZN
    gvNdaeAWcoqAfWlw

    • Use a spudger to lift the adhesive connecting the device and the cover.

  3. ulqiD6dvaoHc4VIf

    • Remove the four silver 7.2 mm screws using a T6 Torx screwdriver.

  4. 3SM4WjyvR2BEwuYs
    3SM4WjyvR2BEwuYs
    ljGiOa1wNfqIsxhK

    • Lift the casing of the Echo Dot to separate it from the rest of the device.

  5. KcMRAQm5MlLB4UMC

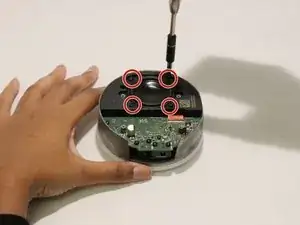

    • Remove the four black 8.4 mm screws surrounding the speaker using a JIS #1 screwdriver.

  6. cyfyAuvVuZxPQMg2
    cyfyAuvVuZxPQMg2
    DcBbwRnQ56YNlnUy
    ZKM6aLGUeMELTu1S

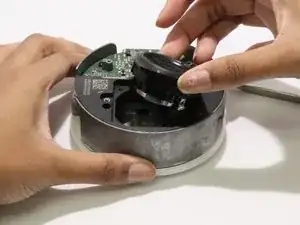

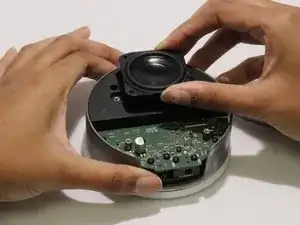

    • Use a spudger to pry the speaker out of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
