Amazon Echo Show 2nd Gen Button Replacement

Geschrieben von: Kara Funke
  • Kommentare: 6
Amazon Echo Show 2nd Gen Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 Minuten

Einleitung

This is a step-by-step guide to removing the buttons from an Amazon Echo Show 2nd Gen. For the purpose of cleaning the buttons, and removing any debris. This process can be done in just a few simple steps with the help of a screw driver!

  1. uSv4flpLwneJcOJV
    uSv4flpLwneJcOJV

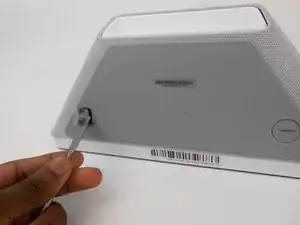

    yVIvh21eANgYgtrD

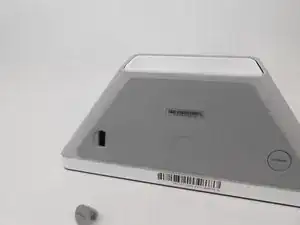

    mMBLJhLWROSKGi3a

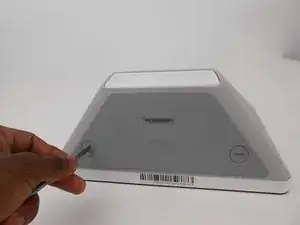

    • Make sure the device is unplugged and powered off.

    • Turn the two screw plugs counterclockwise with a metal spudger until they are 90 degrees from their original position.

    • Pull each of the plugs out.

    Since you didn’t use prerequisites, my comments on these steps have not transferred. Please be sure to see where I gave feedback and apply here.

    Alex Watkins -

  2. 5EIcsHXw2aKIBaIA
    5EIcsHXw2aKIBaIA

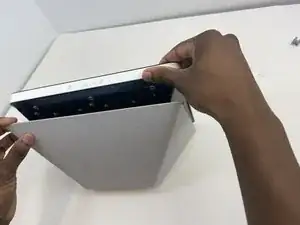

    3LoGPyISbHoHjONn

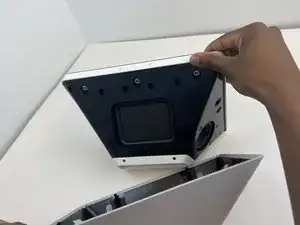

    PPQ63DiSUvyRuAQb

    • Use the metal spudger to pry and create space between the sound foam and the frame.

    • Once you have sufficiently pried the foam from the frame on each side, detach the sound foam from the frame with your hands.

  3. KMsXdBOdr6UXL25I
    KMsXdBOdr6UXL25I
    RLaD2jEIjjIAnwbK

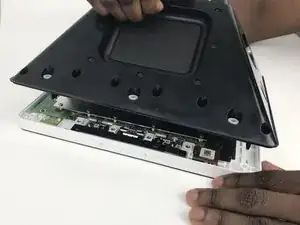

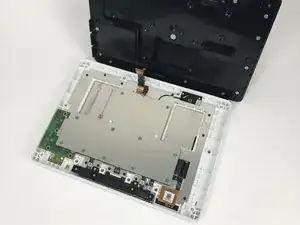

    • Firmly grasp the white trim of the front piece with one hand while the other pulls back on the black back portion of the device.

    How should I remove it? Try to avoid using nonspecific verbs (like remove) for actions that can be performed multiple ways. Remove is good for screws—there’s only way to remove them. Here, though, I need more detail.

    Alex Watkins -

  4. CC4vKicJMyVgdeHy
    CC4vKicJMyVgdeHy

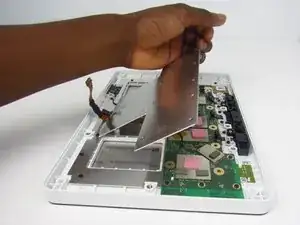

    ObnYTeDnwGfFLfM1
    RXFdtZearimkhKaY

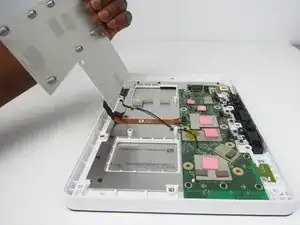

    • Remove all of the red 2 mm screws using a T5 torx screwdriver.

    • Carefully lift away the metal plate.

    Be sure to follow ROYGBIV order for markup.

    Alex Watkins -

  5. AoLK31wKASwmQCis
    AoLK31wKASwmQCis
    Fb5DG1vFtetU5lLI

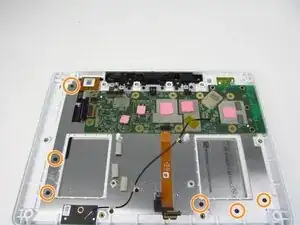

    • Using a T5 torx screwdriver, remove all 2 mm screws from the motherboard.

    • Remove all orange marked screws from the second metal plate.

    Each step should restart with ROYGBIV order. Be sure to check for all guides.

    Alex Watkins -

    Be sure to measure the length of all screws and include for each guide.

    Alex Watkins -

  6. bhGRtXjPCqnAuhYi
    bhGRtXjPCqnAuhYi

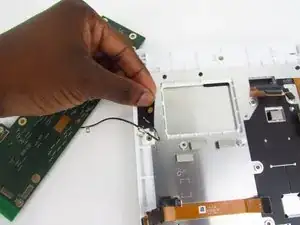

    yAISGTN5YyMZBXkG
    II1tCLYS6RKUCVXA

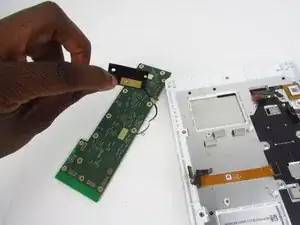

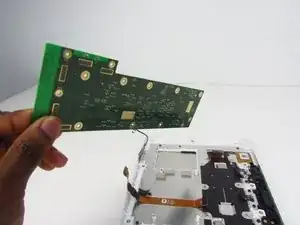

    • Remove the motherboard from the device. Be sure to be careful when removing the black adhesive.

  7. ZS3RJkIWrCbU6bt3

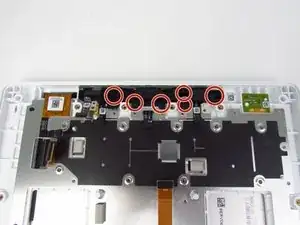

    ZS3RJkIWrCbU6bt3
    HZQ5SWbVHoLMBNKP

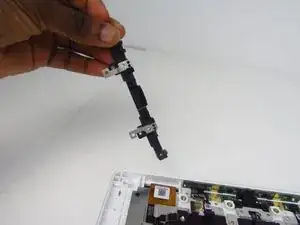

    I3shqMeHxEY25Ult

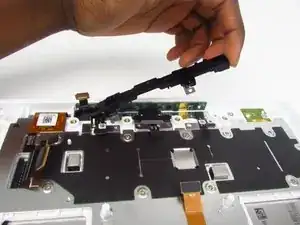

    • Remove all 2 mm screws that are attached to the black plastic button casing.

    • Remove the case that holds the buttons. Buttons should now be free to remove.

    Here, I think you can delete “length.” Also, why did they have to remove all the screws from the silver plate when it’s still reattached in this picture? I would also add pictures and a step of you actually removing the buttons.

    Alex Watkins -

Abschluss

To reassemble your device, follow these instructions in reverse order.
