Einleitung
Most replacement guides will require you to open up the Alexa to access components, so following this guide will let you access the internal components quickly and safely.
Werkzeuge
-
-

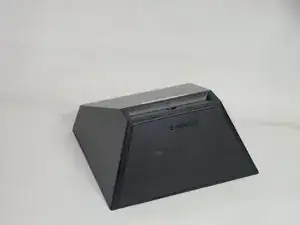

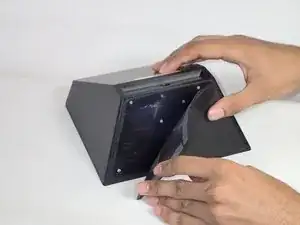

Carefully peel off the bottom pad to expose the fastening screws.
-

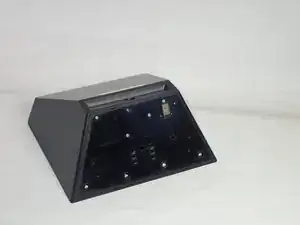

Remove three silver 1.4 T5 Torx screws on the top row.
-
Remove one green 1mm T5 Torx screw in the middle.
-
Remove a black 1.5mm T5 screw.
-
Remove three green 1mm T5 screws from the bottom row.
-
-
-

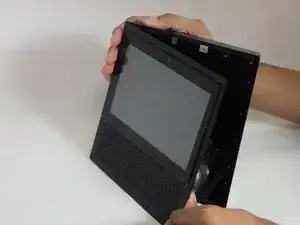

After the screws are removed, grip the front panel and remove, using a plastic opening tool if necessary. This will expose the inside of the device.
-
-
-

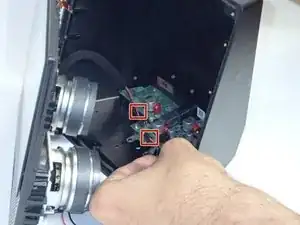

Use tweezers or your hands to carefully disconnect the red wires connecting the speakers to the power supply board.
-

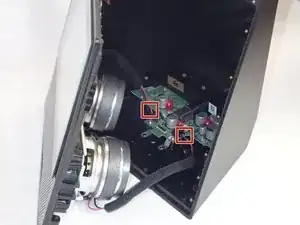

Repeat this step for the other speaker, and lay the front section flat with the facing down.
-
To reassemble your device, follow these instructions in reverse order.
