If your Amazon Echo Show's audio is crackly or muffled, you might need to replace the speakers. Follow the prerequisite guide listed at the top--"Opening The Show". This guide tells you how to open up the device so you can access the speakers.
Before starting this guide, gather a T4, T5, and T6 Torx screwdriver. Steps requiring a tweezer can instead be used with your hands carefully.
Werkzeuge
-
-
Carefully peel off the bottom pad to expose the fastening screws.
-
Remove three silver 1.4 T5 Torx screws on the top row.
-
Remove one green 1mm T5 Torx screw in the middle.
-
Remove a black 1.5mm T5 screw.
-
Remove three green 1mm T5 screws from the bottom row.
-
-
-

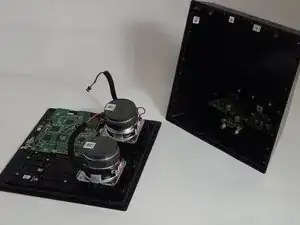

After the screws are removed, grip the front panel and remove, using a plastic opening tool if necessary. This will expose the inside of the device.
-
-
-
Use tweezers or your hands to carefully disconnect the red wires connecting the speakers to the power supply board.
-
Repeat this step for the other speaker, and lay the front section flat with the facing down.
-
-
-

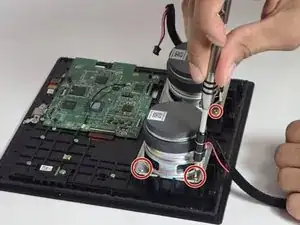

Use a non-magnetic T-6 screwdriver to unscrew the four 6mm screws on the speaker mount.
-

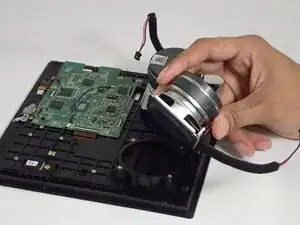

Repeat this step for the other speaker.
-
To reassemble your device, follow these instructions in reverse order.
