Amazon Echo Studio Light Board Replacement

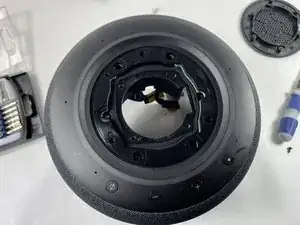

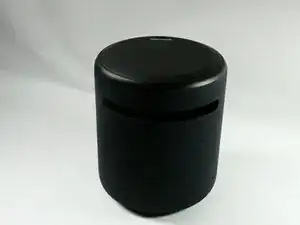

Flip the device upside down.

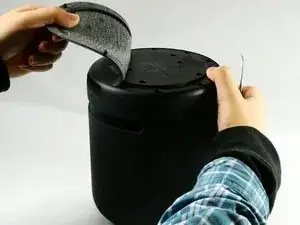

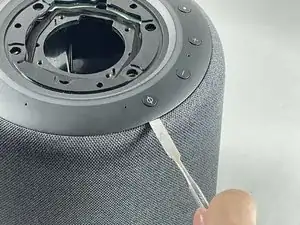

Pry up the edge of the rubber base panel with a spudger, then pull the rest of it off by hand.

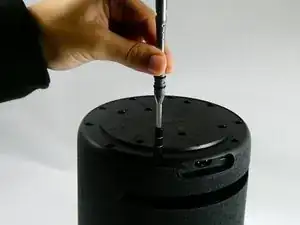

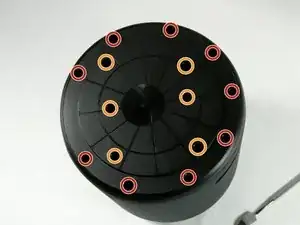

Use a T15 Torx screwdriver to remove the ten 3.2 mm screws.

Use a Torx T10 screwdriver to remove the six 2.7 mm screws.

After removing the screws, gently lift the base off, with care not to damage any of the connected cables.

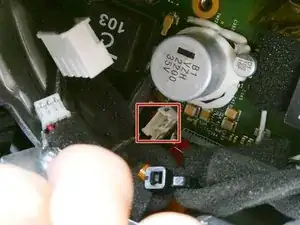

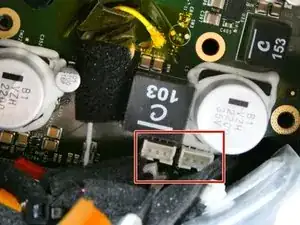

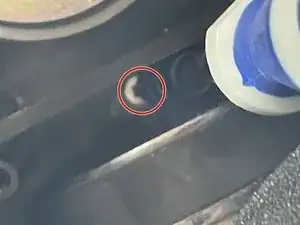

Before fully removing the base, remove the three attached connectors.

Now unscrew the the single 10 mm Phillips screw.

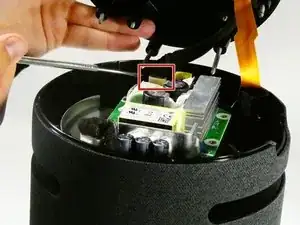

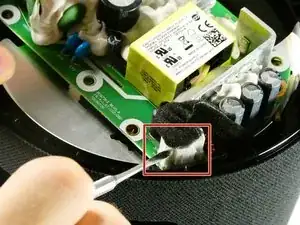

Remove the power supply board.

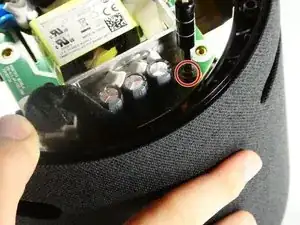

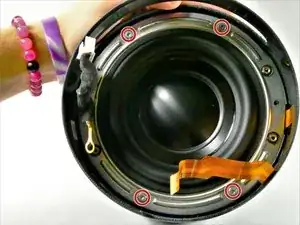

Remove the two screws located across from each other on the outside of the plastic ring shown.

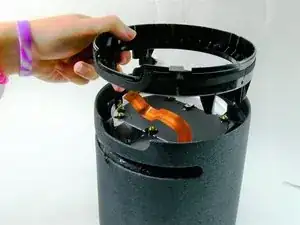

Remove the plastic outer ring that hugs the inside of the edges of the device.

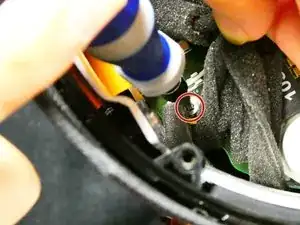

Remove the two 2.7 mm screws with a T10 Torx screwdriver.

Once the screws are removed, take the power supply's baseplate out of the unit.

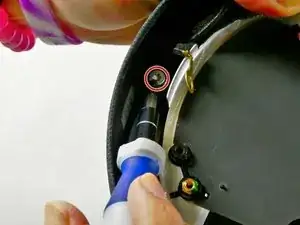

On the silver ring located on the outer edge of the plastic portion of the subwoofer, you will see four 2.7 mm screws. Use a Torx T10 screwdriver to remove them, in order to remove of the subwoofer.

Follow the wires from the subwoofer to the main board and disconnect the connector attaching them.

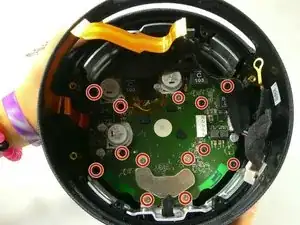

Remove the thirteen 9 mm Phillips #00 screws.

Unfasten the Phillips 9mm screws, using the Phillips #00 Screwdriver.

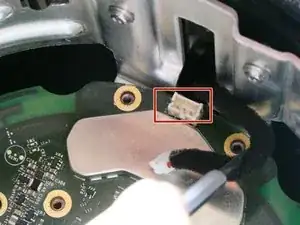

After removing the screws, locate the four power connectors on the motherboard and detach them from the motherboard.

Remove the motherboard from the device by pulling it out.

First, locate the six 10 mm screws at the top of the inside of the shell and unscrew them with a T10 Torx screwdriver.

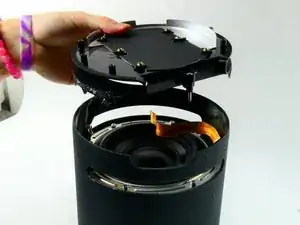

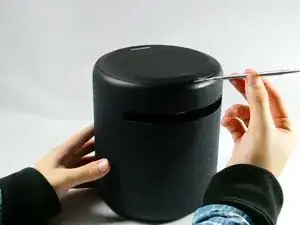

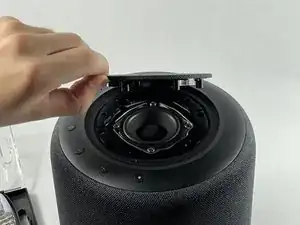

After removing the six screws from the inside, lift the top speaker cover.

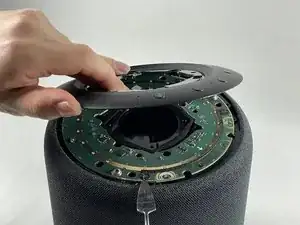

Lift the top plastic cover that has the buttons.

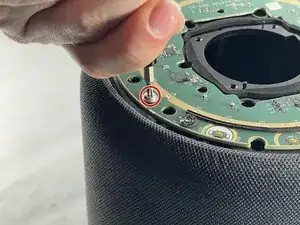

Remove the two 2.7 mm screws with a T10 Torx screwdriver.

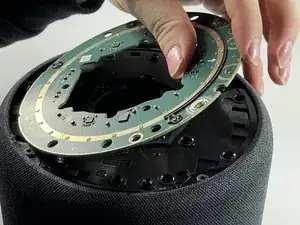

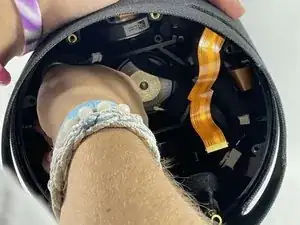

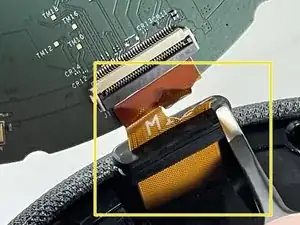

After the screws are removed, carefully lift the lightboard and disconnect the ribbon.
