Amazon Echo Studio Speakers Replacement

Flip the device upside down.

Pry up the edge of the rubber base panel with a spudger, then pull the rest of it off by hand.

Use a T15 Torx screwdriver to remove the ten 3.2 mm screws.

Use a Torx T10 screwdriver to remove the six 2.7 mm screws.

After removing the screws, gently lift the base off, with care not to damage any of the connected cables.

Before fully removing the base, remove the three attached connectors.

Now unscrew the the single 10 mm Phillips screw.

Remove the power supply board.

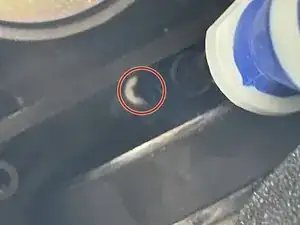

Remove the two screws located across from each other on the outside of the plastic ring shown.

Remove the plastic outer ring that hugs the inside of the edges of the device.

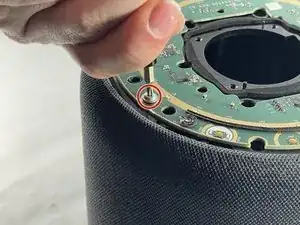

Remove the two 2.7 mm screws with a T10 Torx screwdriver.

Once the screws are removed, take the power supply's baseplate out of the unit.

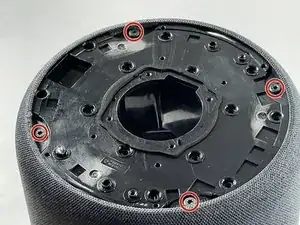

On the silver ring located on the outer edge of the plastic portion of the subwoofer, you will see four 2.7 mm screws. Use a Torx T10 screwdriver to remove them, in order to remove of the subwoofer.

Follow the wires from the subwoofer to the main board and disconnect the connector attaching them.

Remove the thirteen 9 mm Phillips #00 screws.

Unfasten the Phillips 9mm screws, using the Phillips #00 Screwdriver.

After removing the screws, locate the four power connectors on the motherboard and detach them from the motherboard.

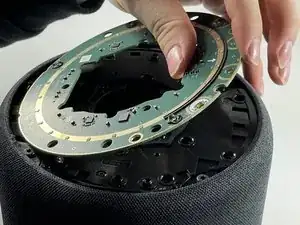

Remove the motherboard from the device by pulling it out.

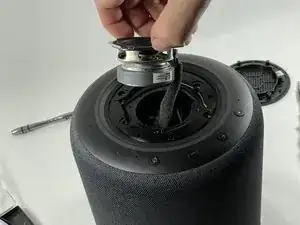

After removing the motherboard, you should be able to see both of the side speakers and top speaker.

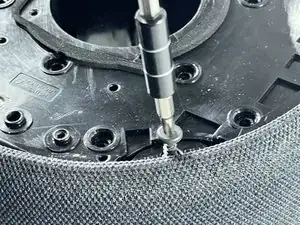

You will need to find and remove six 10mm screws to take off the top speaker's cover.

After unscrewing the lid on the inside, you should be able to lift off the cover

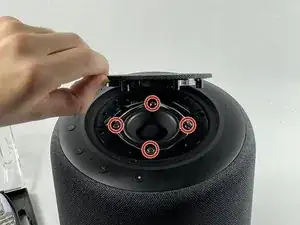

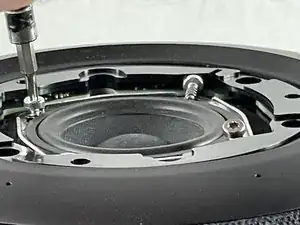

Now remove four 2.7 mm screws with a Torx T10 screwdriver.

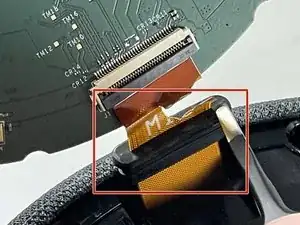

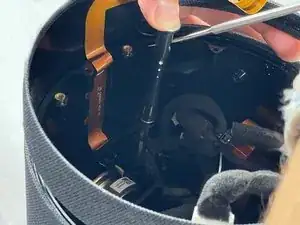

Before taking out the top speaker, first find and remove it's connector inside.

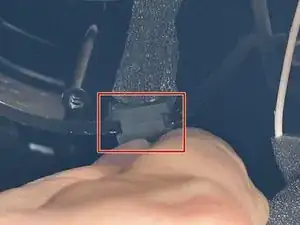

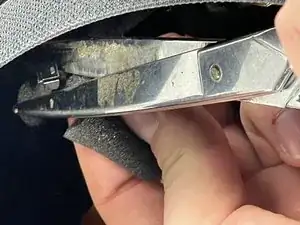

After snipping the tie, now pull the speaker out from the top.

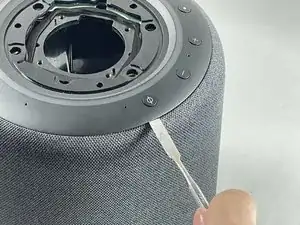

Lift the plastic lid with the buttons on top of the case.

Unscrew and disconnect the lightboard.

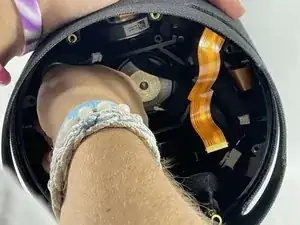

Once the lightboard is out, you should be able to see the frame inside of the case. You can unscrew it from the case, and then take it out.

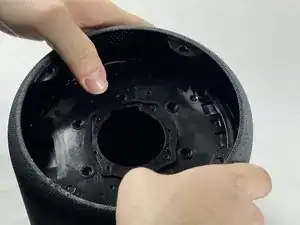

With the frame outside of the case, you can now spot the 3 side speakers.

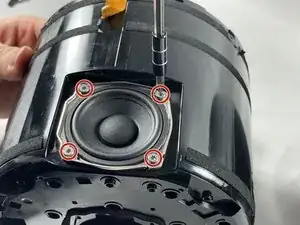

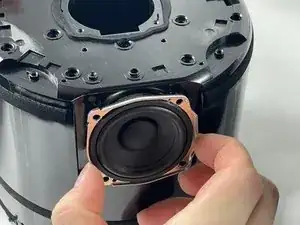

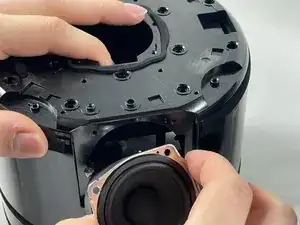

To take the speakers out, unscrew the four sets of four 2.74 m screws with a T10 Torx screwdriver, and they should lift right out.
