Amazon Fire Game Controller Outer Shell Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to properly replace the outer shell of the Amazon Fire game controller. This procedure may be necessary when a part of the outer shell becomes damaged, and will remedy both functionality and cosmetic issues.

  1. IfNZpcCG4SEIDf1I

    • Use a Triangle #2 screwdriver to remove the six 10 mm screws from the back of the controller.

  2. avrTSm2kUaWAYxSo

    • Pry the two shell pieces from one another from the top orientation with a plastic opening tool.

    • The weights will fall out.

  3. hJMjQd335LpQQDej

    • Disconnect the battery terminal wires and the play, pause, and stop wires from the motherboard.

  4. eStMoZ3MQ4xffIdf

    • Use a J1 screwdriver to unscrew the four 7 mm screws from the motherboard.

  5. KBIUDevamm4gRyNa

    • Lift the motherboard out of the controller casing.

  6. kgw1yGEKNPe5sVOS

    • Use a JIS #0 screwdriver to remove the two 7 mm screws from the retaining bracket that secures the play, stop, and pause button wiring.

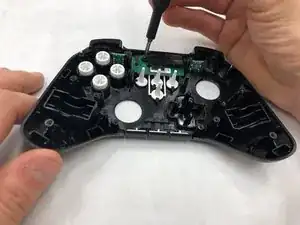

  7. cZRyAuaurgl51XiR

    • Use a JIS #0 screwdriver to unscrew the 5 mm screws from the LED indicator assembly.

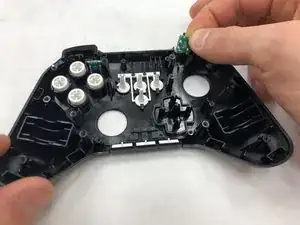

  8. 2BSjFTTTARKaKJZN
    2BSjFTTTARKaKJZN

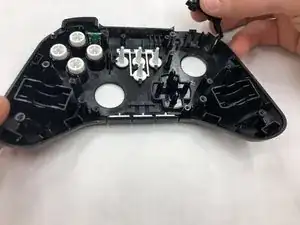

    tgsLhpCJkRtl1HKL

    • Slide out the triggers and bumpers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
