Amazon Fire HD 10 Front Facing Camera Replacement

Geschrieben von: Jaie Hillery
  • Kommentare: 5
Amazon Fire HD 10 Front Facing Camera Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

6 Minuten

Einleitung

You will need to use the screen replacement guide as a prerequisite.

  1. pMUsf5gRYMNi2hgC
    pMUsf5gRYMNi2hgC
    RDROMVPXqogIgTOT
    J2ufhOZpVSFQKTKJ

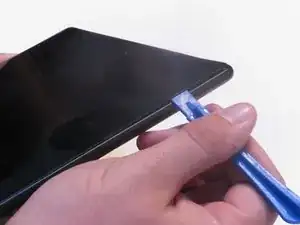

    • Avoid prying near bottom right hand side due to LCD Connector

    • Use a plastic opening tool to pry the screen up in the right hand corner.

    The right side with the power switch on top?

    Sonny Shear -

    Where is the right hand corner? Is it the corner nearest the USB connector? Farthest from USB connector?

    Thanks!

    Steve Ciciora -

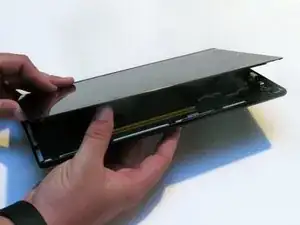

  2. lTqFQgEFiHSNgYWJ

    • Do not completely remove the screen yet as there is a ZIF connector connected.

    • Lift the screen and digitizer from the case.

    • You may need to use some force due to the glue.

    What is a ZIP connector? What does it look like?

    Beldenr -

    Hi Beldenr! We happen to have a handy guide for a lot of different types of connectors, including ZIF connectors.

    Adam O'Camb -

  3. 3xBWtELWfcZnMODd
    3xBWtELWfcZnMODd
    6EwvG6oFoBRvcsxI

    • Be mindful of the ZIF connector.

    • Disconnect the ribbon connector from the digitizer side using your hands or the plastic opening tool.

  4. 3H6ELaVaCoPLtFTQ

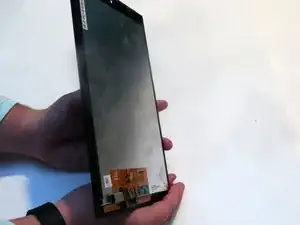

    • Remove the screen and digitizer from the case completely.

  5. As6xo1ek6MATHkNn
    As6xo1ek6MATHkNn
    oNYiJ1nPpUatcXxR
    IyPTdv3UvEAtVWAS

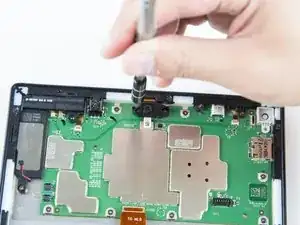

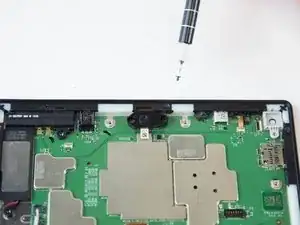

    • Remove the two screws from front facing camera using the T5 Torx Screwdriver.

    • Make sure you place the screws in a safe location nearby.

  6. ljDMqrFRU1TqDUZE
    ljDMqrFRU1TqDUZE
    HXL21iAuygPrVbKG

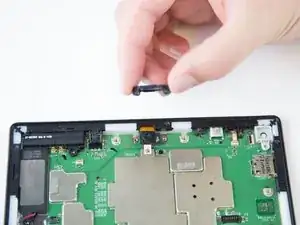

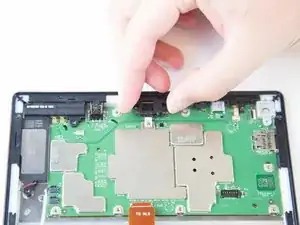

    • Lift the black plastic cover once the screws are removed.

    • Place aside for later reassembly.

  7. XlHEqnPskGcLTPVP
    XlHEqnPskGcLTPVP
    THQJx1uejOH2OIJP

    • Detach the connector using a plastic opening tool or spudger.

    • The camera is still connected to the motherboard.

  8. Fk1WIDHLETLluB2R
    Fk1WIDHLETLluB2R
    imECW3GpXywOxkXq

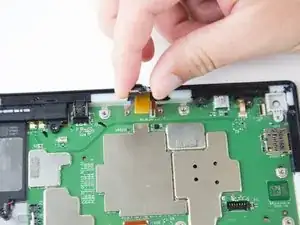

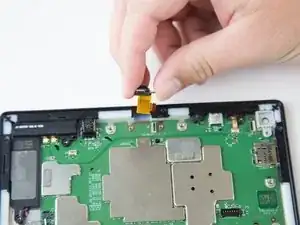

    • Grip the camera and lift up to detach the ZIF connector from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
