Amazon Fire HD 10 Motherboard Replacement

Geschrieben von: Jaie Hillery
  • Kommentare: 13
Amazon Fire HD 10 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

35 - 40 Minuten

Einleitung

Use this guide to replace the motherboard in your Amazon Fire HD 10.

  1. pMUsf5gRYMNi2hgC
    pMUsf5gRYMNi2hgC
    RDROMVPXqogIgTOT
    J2ufhOZpVSFQKTKJ

    • Avoid prying near bottom right hand side due to LCD Connector

    • Use a plastic opening tool to pry the screen up in the right hand corner.

    The right side with the power switch on top?

    Sonny Shear -

    Where is the right hand corner? Is it the corner nearest the USB connector? Farthest from USB connector?

    Thanks!

    Steve Ciciora -

  2. lTqFQgEFiHSNgYWJ

    • Do not completely remove the screen yet as there is a ZIF connector connected.

    • Lift the screen and digitizer from the case.

    • You may need to use some force due to the glue.

    What is a ZIP connector? What does it look like?

    Beldenr -

    Hi Beldenr! We happen to have a handy guide for a lot of different types of connectors, including ZIF connectors.

    Adam O'Camb -

  3. 3xBWtELWfcZnMODd
    3xBWtELWfcZnMODd
    6EwvG6oFoBRvcsxI

    • Be mindful of the ZIF connector.

    • Disconnect the ribbon connector from the digitizer side using your hands or the plastic opening tool.

  4. 3H6ELaVaCoPLtFTQ

    • Remove the screen and digitizer from the case completely.

  5. FXqt3U5VENyryUIM
    FXqt3U5VENyryUIM
    NL3QsGE1YymEQKLm
    36iapYXxIaXSmBHK

    • Locate the power cable that links the battery to the motherboard.

    • Carefully unplug the battery power cable to disconnect the battery from the motherboard.

    • The third image shows what it should look like with the battery power cable is disconnected.

    Battery removal is optional for the motherboard, but is a great addition to this guide for completeness.

    scottpickles -

  6. YFNwGjjTFJOGhJPs
    YFNwGjjTFJOGhJPs
    WjTRBfnCBcXsLiLt
    KuoLIeDlSr2lYc2M

    • Begin by locating the double sided pull tape locations.

    • Do not lift on the battery when doing the following step. You will bend it. It is very pliable.

    • Pull the black soft tabs to release the tape's adhesion.

    • Make sure you pull the tabs slowly and continuously away from the case until the adhesive is completely out.

    • Do this to all 4 tabs until the battery is completely free of adhesion to the device's backing.

    Why not heating the tabs a little to take battery easier

    Engin Isleyen -

  7. 2vGnRDVoHaN1hOjy
    2vGnRDVoHaN1hOjy
    sNYOXZybPcvah5f6
    xiD26PaPUGfFJRGW

    • Make sure all the adhesive is removed before trying to lift the battery from the case.

    • After the battery is totally free of any adhesion, simply lift the battery from the case.

  8. DX4KwOiOFDpGTydG
    DX4KwOiOFDpGTydG
    hgGTTpfHCASKwEIc
    U3iC4eZgeBiQ3giB

    • Inspect battery for any leakage.

    • Please follow all U.S. regulations and laws when disposing or recycling the battery.

  9. Dr5nmGcs2KdCqJCy
    Dr5nmGcs2KdCqJCy
    1XqnXIIPRF3qdROU

    • Remove the single T5 Torx screw at the base of the camera.

    • Once removed, place the screw aside in a safe location.

  10. J3kj6EZU3fro2QEI
    J3kj6EZU3fro2QEI
    yAhmtVcIqxvGgQUE

    • Lift the camera from the case using the plastic opening tool.

    • The camera is still connected to the motherboard via the ZIF connector.

  11. MTT5eLFuAdYGMQl5
    MTT5eLFuAdYGMQl5
    h25Bpjn4X2qn1lOW

    • Gently grab the camera and pull to remove.

    • The camera is now free from the motherboard.

  12. As6xo1ek6MATHkNn
    As6xo1ek6MATHkNn
    oNYiJ1nPpUatcXxR
    IyPTdv3UvEAtVWAS

    • Remove the two screws from front facing camera using the T5 Torx Screwdriver.

    • Make sure you place the screws in a safe location nearby.

  13. ljDMqrFRU1TqDUZE
    ljDMqrFRU1TqDUZE
    HXL21iAuygPrVbKG

    • Lift the black plastic cover once the screws are removed.

    • Place aside for later reassembly.

  14. XlHEqnPskGcLTPVP
    XlHEqnPskGcLTPVP
    THQJx1uejOH2OIJP

    • Detach the connector using a plastic opening tool or spudger.

    • The camera is still connected to the motherboard.

  15. Fk1WIDHLETLluB2R
    Fk1WIDHLETLluB2R
    imECW3GpXywOxkXq

    • Grip the camera and lift up to detach the ZIF connector from the motherboard.

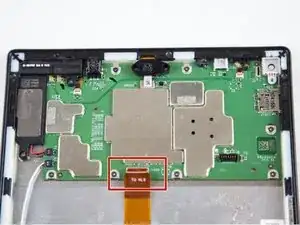

  16. DjOcNanaQeM14YEo

    • Lift the ZIF connector up to disconnect from the motherboard.

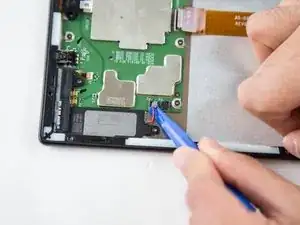

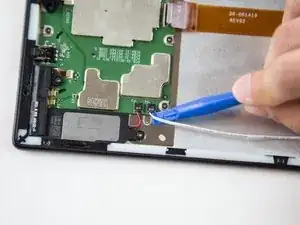

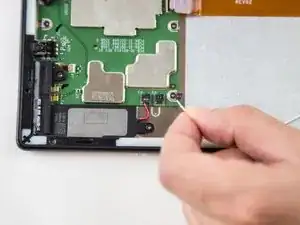

  17. klOxcOHCLhdFYoJD
    klOxcOHCLhdFYoJD
    iNtgjwyDcHYZ2vct
    oLknZs1FaxxbG4iB

    • Disconnect the connectors using the plastic opening tool.

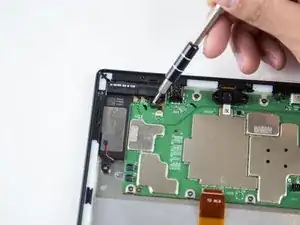

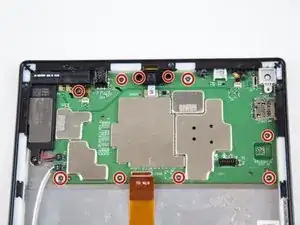

  18. VOjjPLDspqSj2TiV
    VOjjPLDspqSj2TiV
    1hgFpl5ssqIKUqii

    • Remove the ten T5 Torx screws securing the motherboard to the case.

    • Keep the screws together in a safe place for reassembly.

    Before moving to the removal of the motherboard, there are VERY small and EXTREMELY breakable ZIF sockets for the power button and volume buttons. I didn't realize this and started to pull the motherboard out. Thankfully they disengaged but the flaps that lock them back in are nearly paper thin. Use caution, particularly when reinstalling and closing the ZIF sockets. Lastly the power button was lose in my deinstallation because I removed the screw. It's not necessary to remove that screw.

    scottpickles -

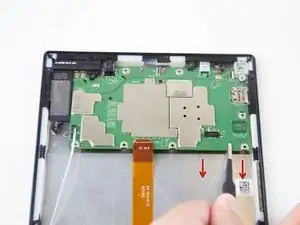

  19. RsKWvOddSMT4Cua2
    RsKWvOddSMT4Cua2
    qei44OQCMZauENwP
    ZbIrISUWqJHaQMpE

    • Lift and pull the motherboard down, gently, towards the case using the tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
