In this guide, we outline how to properly disassemble this device and replace the LCD display screen.

  1. 3dG3ju6gGmCWwJTD
    3dG3ju6gGmCWwJTD
    l11lYybpJJrAdxhC
    xCUYYxSungT6xZko

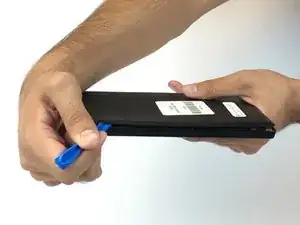

    • Insert the plastic opening tool behind the rear case to free the clips holding the case together.

    • Work your way around the device to free all the clips.

  2. hAY5HVXFTBxkA5YT

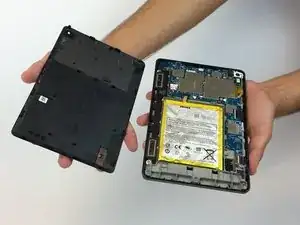

    • Once all clips have been released, remove the back case to reveal the inside of the device.

  3. gTFO44ca1iipbygA
    gTFO44ca1iipbygA
    fVvRBTLgKkEmJcbs
    kMs12XUjYNUhv5vh

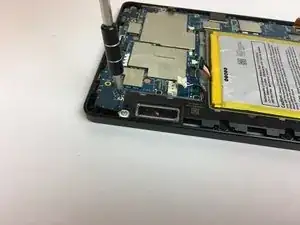

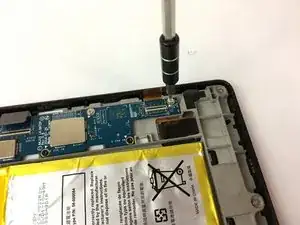

    • Remove the nine silver screws located around the motherboard with the T5 Torx screwdriver.

  4. g1lBGa5m64tTyaGc
    g1lBGa5m64tTyaGc
    DkDCMovDWfkMyrag
    aNqZMMAWEXaJ4WP1

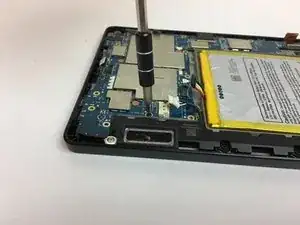

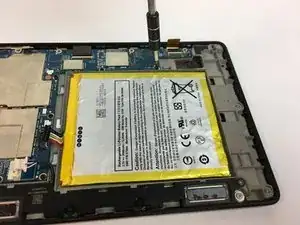

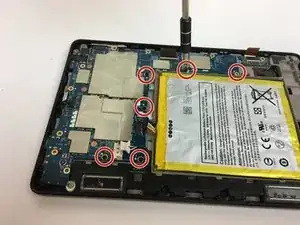

    • Remove the six black screws located around the battery and the speaker with the T5 Torx screwdriver.

    • Make your way around the battery and speaker to remove all of them.

  5. 3ORaM3spbVvKjTEy
    3ORaM3spbVvKjTEy
    dUeLU1XlKr3BqBmD
    mTeZqiWQ1yi62DVF

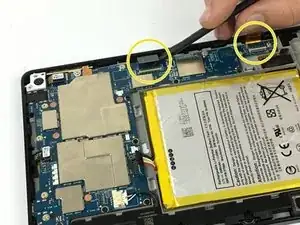

    • Carefully unplug the three wire connections by placing a plastic spudger under the connections and lifting up.

    • Disconnect the battery and speaker connections by placing the round handle spudger under the wires and lifting up and out.

    • Disconnect the display connections from the motherboard by using the plastic spudger to lift the clamp holding the ribbon cable. Then, using the tweezers, grab the ribbon wire and pull away from the motherboard.

  6. 1AapTLWXCsORVYFl
    1AapTLWXCsORVYFl
    r2PVJACQLFNSDsYF
    • Remove the two screws holding the rear camera in place using the T5 Torx screwdriver.

    • Once freed from the screws, gently lift and remove the rear camera.

    • The camera lens is sensitive. Be careful when removing and handling the rear camera.

  7. HU5cAsYDKE3CBZbR
    HU5cAsYDKE3CBZbR
    3BiwkCH2LWs6bX3P

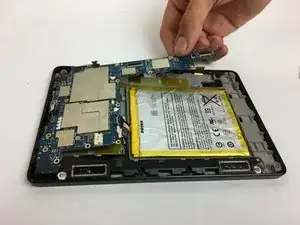

    • Now the motherboard is free to be removed.

    • Lift the motherboard up to remove it as shown in the picture.

  8. qQWpvwA2YI6vZCjv
    qQWpvwA2YI6vZCjv
    duBWWUv1w5RdfKLb
    gPPPkOuSMqMWRCMG

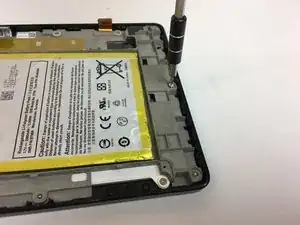

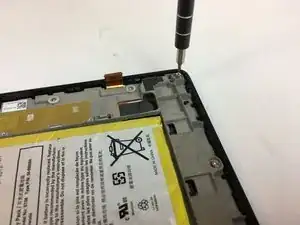

    • Following the bottom edge of the device, remove the (3) T5 hex silver screws with the T5 torx screwdriver.

  9. QmQnuYYfkKVcOPCb
    QmQnuYYfkKVcOPCb
    jEvRaUFRsuhxNEoR

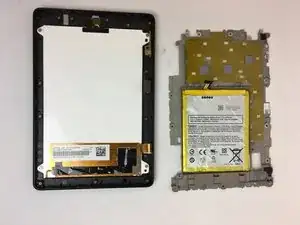

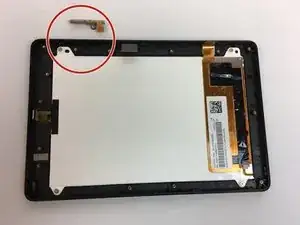

    • The motherboard chassis can now be removed to reveal the display screen.

    • Remove the volume button components.

  10. HFEZh4SabEcQxI5a
    HFEZh4SabEcQxI5a
    I4yulYMqtHvTfJeN
    NGROqMMqHIDJVmJt

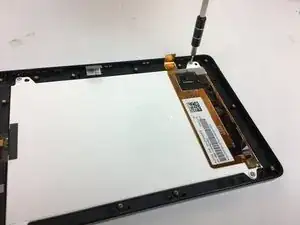

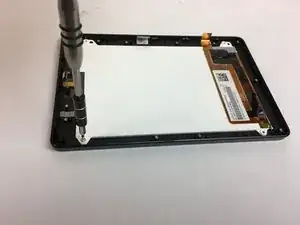

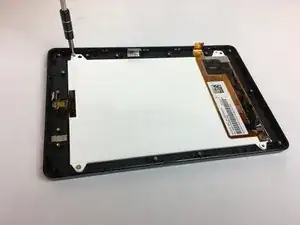

    • Remove the (4) T5 hex silver screws in the corners of the display screen using the T5 torx screwdriver.

  11. qUWM3FXPvaN3vCFu
    qUWM3FXPvaN3vCFu
    VEC6TSfUTKHWAFFb
    oINQteytSNFspEDA

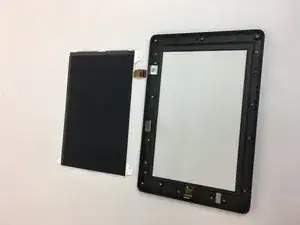

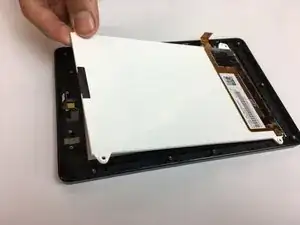

    • The LCD display screen may now be removed and replaced.
