Amazon Fire HD 8 Rückkamera tauschen

Geschrieben von: Alyssa Barrack
  • Kommentare: 9
Amazon Fire HD 8 Rückkamera tauschen

Schwierigkeitsgrad

Schwierig

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

Diese Anleitung zeigt, wie die Rückkamera ausgetauscht werden kann. Schalte das Gerät vor der Reparatur aus.

  1. d4VfZpt5vDlUAmQl
    d4VfZpt5vDlUAmQl
    2QlFM1WBffYPgpct

    • Erwärme die Kanten des Displays mit einem Heißluftgebläse auf niedrigster Stufe. Bewege das Gebläse dabei aus etwa 20 bis 25 cm Abstand hin und her.

    • Achte darauf, dass der Luftstrom hin und her bewegt wird und nicht an einer Stelle bleibt.

  2. CrTvuUW3fCiNFCAV

    • Nach 1 -2 Minuten kannst du das Display mit einem Kunststoffwerkzeug loshebeln. Beginne damit in der oberen rechten Ecke.

    • Drücke das Display nicht zu weit vom Gerät weg, damit er sich nicht verbiegt.

  3. e6OSXdDyrOewpNXO
    e6OSXdDyrOewpNXO
    fiF2mCbZHaSanNZs
    HXMPKY3PQH65TAdZ

    • Lasse das Öffnungswerkzeug und einen Spudger an der Unterseite des Displays entlang gleiten. Setze dabei ausreichend Kraft ein, so dass sich das Display und der Klebestreifen von der anderen Gerätehälfte löst.

    • Achte auf das orangene Kabel, welches das Display mit dem Mittelteil des Gerätes verbindet.

  4. vXhfFidYqvQu64Yf
    vXhfFidYqvQu64Yf
    AdiyUpFpNYsUTOIH
    pJLlpPW5O5jkcGsL

    • Ziehe behutsam das orangene Kabel mit einer Pinzette aus seinem Anschluss heraus und entferne das Display.

    Hello,

    I followed this tutorial, and it was very helpful. However, the screen does not react to touch. Its there some sort of hard reboot required? Or is my problem likely a screen malfunction problem?

    Thanks,

    Keegan Fregeau -

    Hi Keegan.  Did you ever get a response to your question on this?  I just replaced my screen on a kindle fire hd8 today and am having issues with the touch screen.  it turns on and apps come up but when I try to enter a passcode certain numbers won’t populate and certain areas of the screen won’t respond.  It’s very touchy in some areas and not so much in others. :(

    Cheryl Waltz -

    Mine is doing that NO response thing also. Have inspected for any tiny hsrd to see damages. Looks perfectly fine. Why it no response now?

    Kitty Morgan -

    I think no one has an answer for why the touch screen doesnt feel touchy any more after a quick freedom from attachment time. Maybe that super tough sticky adhesive,once its been conquered successfully, lets the magic touch electrons escape from the screen so it doesn’t recognize the touch as completing the circuit. Any ideas on that? I’ve heard of the smoke theory before, but no smoke escaped that was visible. And the Olofonz Theory, that I learned a bunch of years ago in the USN, doesnt apply to this mystery either. Anybody out there? Please, ET geeks, I need some help so I can grow my skill levels higher to prevent the total destruction of my budget by replacing one cell phone, or tablet, right after another. Ouch!

    ’

    ’

    ’

    Kitty Morgan -

    I’m confused, other videos online give the suggestion that to remove the screen is a longer process. Also the pictures don’t appear to illustrate the actual glass being removed, between step 3 & 4 the glass cover has disappeared and there’s no mention of it.

    Steve Chapman -

    You will need to reheat the screen so it can adhere to the LCD.

    cl0udwatcher -

    I'm having a similar issue with the touch screen not responding to touch, Hadn't used it in 2 months since my son got sick all over it and it didn't seem to want to charge or hold a charge after cleaning and drying it up,.. until today I decided to check it out, which it was able to charge and powered on, which soon after jumped to 9% charge then 50%, I checked to see if there was a new system update, which there was one downloaded/ready to install and one pending or something like that and it mentioned that it would auto install the next time the Kindle wasn't in use or I could choose to update now, clicked now to get it over with and ever since the screen has been non responsive. now the screen will come on but I am unable to slide unlock or press anything, I can hold the power button and the option pops up to restart or turn off and I can't select either,… the volume buttons work, and the power button, which I've tried the “hold the power button for 40seconds “ to restart but it doesn't help…..

    I'm lost….

    tripnoticntx -

    I read from another site that you should disconnect the battery not just power off and to also ground yourself or get a grounding strap from a electronic supply place do that you do not short anything out. I have not done mine yet I am still researching. I will send a link if I can find a good one . Thanks for the warnings.

    imememine -

    I just successfully replaced the glass and digitizer on a Kindle Fire HD 8 Plus 10th generation (as a complete novice). This is NOT all it took. The digitizer has to replaced and the glass replacement should come with that attached. It has to be threaded through and carefully inserted into the port. There were no instructions that came with the kit I ordered off Amazon for $26.99 and no videos of the 10th generation model. I watched some older ones…went for it…and it worked!

    best video: https://youtu.be/biasTJcB6GQ

    Amy Bennett -

  5. PstIUcsjbYuGdLeJ
    PstIUcsjbYuGdLeJ
    BFacbxeyGtFYyOBM

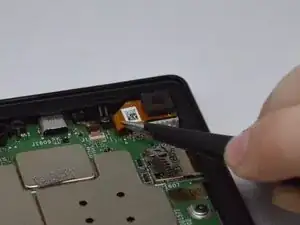

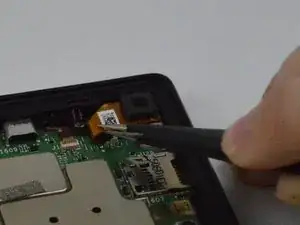

    • Ziehe mit der Pinzette behutsam am orangenen Kabel und hole die Kamera aus ihrer Fassung heraus.

  6. SJpxeyXd16vUv1Nk
    SJpxeyXd16vUv1Nk
    CF3NKMieWxFsa53K

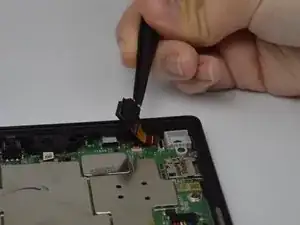

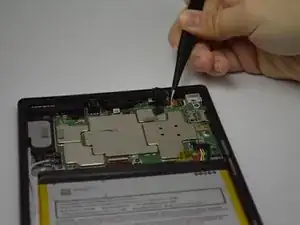

    • Klappe den Sicherungsbügel am ZIF-Anschluss des Flachbandabels hoch.

    • Fasse das Flachbandkabel unten mit einer Pinzette und ziehe es vorsichtig aus dem Anschluss heraus.

Abschluss

Um dein Gerät wieder zusammenbauen, folge den Schritten in umgekehrter Reihenfolge.
