Einleitung

There are many fragile pieces to the motherboard, so be very careful when disassembling. Good luck.

  1. TTVmwxKO21YOaoNc
    TTVmwxKO21YOaoNc
    clduZODy3Jdj3Abu
    NYS2h16kLoHg1UFL
    • Ensure that the device is turned off.

    • Holding the device firmly, wedge a plastic opening tool between the speaker cover and the device. Then pry up to separate it from the device.

    • Then begin to firmly pry up the plastic cover with the plastic opening tool.

    • The backing is connected with adhesive so force may be necessary.

    • Be careful to not damage the plastic in any way.

    • Once you can fit your finger under the plastic cover, begin to slide your finger down the cover while simultaneously prying up.

  2. ECsdjYjegFmUID2Y
    ECsdjYjegFmUID2Y
    tvXdtRLuVqaKaED5
    • Once you reach the end of the plastic cover you should be able to completely remove it from the device.

  3. K22YFLtKFHOiBAIv
    K22YFLtKFHOiBAIv
    wup1wAYEYWJfX34T
    • Use a T5 screwdriver to remove the four 3.5 mm T5 screws at the top of the device, where the black plastic trim was located.

  4. JbjWwvFoBFiQaMrd
    JbjWwvFoBFiQaMrd
    y2gqLUPEFroqLlYj
    mIcuYoJSO1d6n6Wu
    • Release the two clear plastic clips at the top of the device near the speaker using the spudger.

    • Simply push down the clip with the tip of the spudger.

    • Push lightly to ensure that the clips aren't damaged.

  5. AuyLYGPCMnMqQKp2
    AuyLYGPCMnMqQKp2
    yW1l53rgafVV5XED
    XgjTS3usyP2uu6HF
    • Use a plastic opening tool to wedge between the screen and the device, while simultaneously holding the clip open from step 4.

    • Pry the screen very gently to avoid cracking the glass

    • Start to remove the screen from where the black plastic trim was removed and work the tool around the sides of the device. You will here small pops from the clips on the sides being released.

    • The Amazon Fire can now be opened with the two flex cables at the base still connected

  6. tgd3IKynBoQUUmHc
    tgd3IKynBoQUUmHc
    FVJBMDAebNuLaNLN
    • Now we have to remove the two flex cables attached to both the screen assembly and body of the device.

    • The cable addressed in step 8 is highlighted in orange.

  7. t6gwgh4bvBHIuRws
    t6gwgh4bvBHIuRws
    5rxhFdNfXLfsCX5a
    tHLAJMyebqZKbCaA
    • First turn the device 90 degrees counterclockwise.

    • Wedge a spudger or plastic opening tool under the black flap of the larger connector and lift up.

    • Pull the belt out of the connector and lift it up.

  8. JISjZcSdJWB5GMYT
    JISjZcSdJWB5GMYT
    DVE2Ub3X1FRGoalv
    61bRSLtc32H1jfFl
    • Turn the device 180 degrees.

    • Repeat step 7 for the smaller flex cable connection.

  9. LOPjJvFvR5UFnR2P
    • Your screen assembly has now been removed and can be replaced.

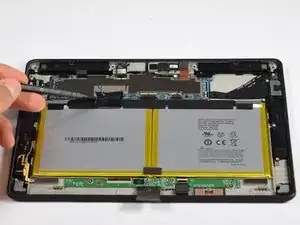

  10. eXpxOfIOs3WJMXsj
    eXpxOfIOs3WJMXsj
    i4JQLBS2WsBl6aTd

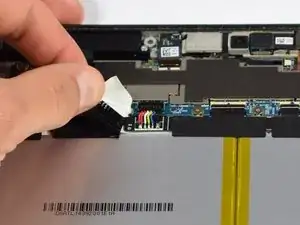

    • Orient the device by rotating the body 90 degrees clockwise.

    • Peel off the black tape covering the main battery connection.

  11. YLbf4MOwKyIprIej

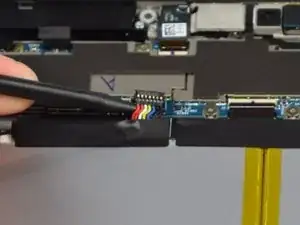

    • Use the spudger to lift up and release the battery connector.

  12. Q1aBFZYxENLhLRgZ

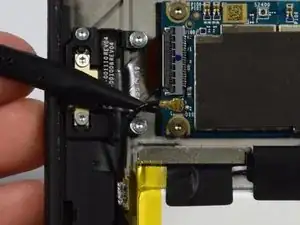

    • Locate the circular gold plug to the left of the battery connection.

    • Use the spudger to lift this up from the motherboard.

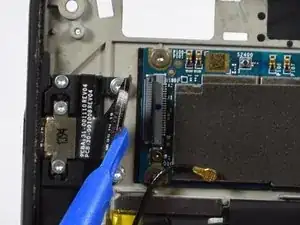

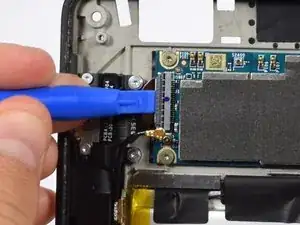

  13. IEmSJmAaGbIHcxaw
    IEmSJmAaGbIHcxaw
    lgOpWS4eUEbaQpDZ
    • Now use the plastic opening tool to lift up the black flap directly above the gold plug.

    • Pull the flex cable out.

    • This is the procedure that will be followed for all flex cables indicated.

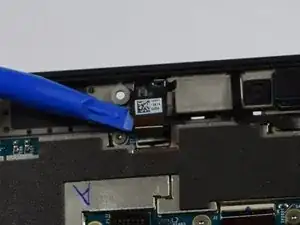

  14. xRM3MxMQaPujHIXf
    xRM3MxMQaPujHIXf
    YYrvh2g122savUaa
    • Locate the third clip at the top center of the device, up from the first battery connector.

    • Follow the same procedure from the last step.

    • Lift up the black flap and pull out to release the flex cable.

  15. LOB2scZTnTPqkNxQ
    LOB2scZTnTPqkNxQ
    oXOdTVeUt4SGLFMH
    OKWMIFnusbI1rQod

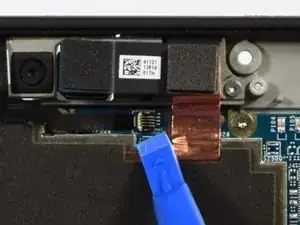

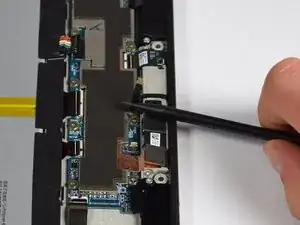

    • Locate the white tab to the right and flip it up using the plastic opening tool.

    • Rotate the device 90 degrees clockwise.

    • Use the spudger to pull up the narrow black cable out and move it out of the way to the left.

  16. TGBvBWNX5xEVNDP5
    TGBvBWNX5xEVNDP5
    LeM2WtAJQAbV1FU1

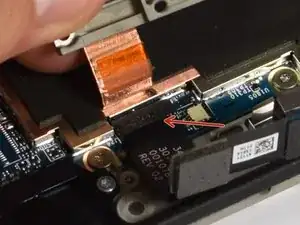

    • Now you will have to lift up the rear camera assembly that is covering the end of the copper strip.

    • Once you see the sharp corner of the copper strip, use a spudger to lift it off of the camera housing. Under the strip will be another connector cover in a small piece of black tape. Follow the steps from step 5 to remove the cable from this connection.

  17. w5qHTeanKA6FGV1C
    w5qHTeanKA6FGV1C
    FA1TyHZaGK4ccRDu

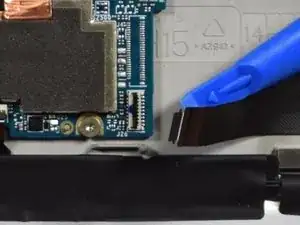

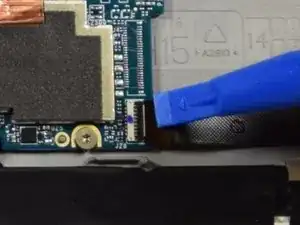

    • Use a plastic opening tool to disconnect the ZIF connector by flipping up the black retaining flap.

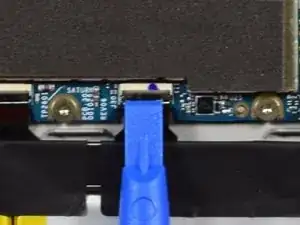

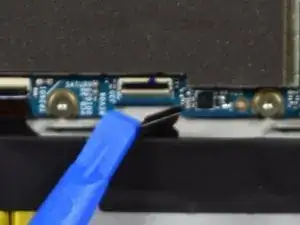

  18. lRfMuBSY4UQYwdcb
    lRfMuBSY4UQYwdcb
    XUYNgS6EZAU4FpwI
    • Use a plastic opening tool to disconnect the ZIF connector by flipping up the black retaining flap.

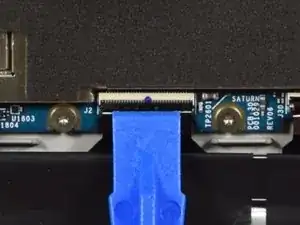

  19. 2QWcHrxh4EsFPhSD
    2QWcHrxh4EsFPhSD
    yfeqEPUUUcbWQKWn

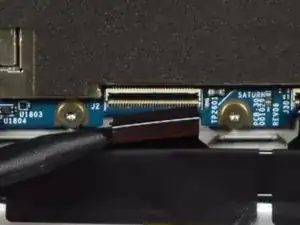

    • Use a plastic opening tool to disconnect the ZIF connector by flipping up the black retaining flap.

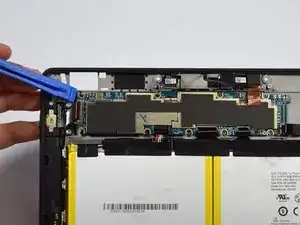

  20. cKe6N3TUkVuC1Evg
    cKe6N3TUkVuC1Evg
    3cS6OoR222CTvZpG
    Edvt5SfDREusEMiR

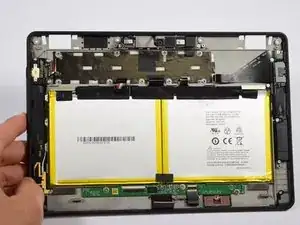

    • Using a T5 screwdriver remove the nine 1.5 mm T5 screws securing the mother board to the body.

    • When all screws are removed use a plastic opening tool to lift the mother board off the body.

    • The mother board has been completely removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
