Einleitung

If your camera has stopped working or has become damaged this guide will be the solution to your problem. We are confident that anyone can fix this. Good luck!

  1. TTVmwxKO21YOaoNc
    TTVmwxKO21YOaoNc
    clduZODy3Jdj3Abu
    NYS2h16kLoHg1UFL
    • Ensure that the device is turned off.

    • Holding the device firmly, wedge a plastic opening tool between the speaker cover and the device. Then pry up to separate it from the device.

    • Then begin to firmly pry up the plastic cover with the plastic opening tool.

    • The backing is connected with adhesive so force may be necessary.

    • Be careful to not damage the plastic in any way.

    • Once you can fit your finger under the plastic cover, begin to slide your finger down the cover while simultaneously prying up.

  2. ECsdjYjegFmUID2Y
    ECsdjYjegFmUID2Y
    tvXdtRLuVqaKaED5
    • Once you reach the end of the plastic cover you should be able to completely remove it from the device.

  3. K22YFLtKFHOiBAIv
    K22YFLtKFHOiBAIv
    wup1wAYEYWJfX34T
    • Use a T5 screwdriver to remove the four 3.5 mm T5 screws at the top of the device, where the black plastic trim was located.

  4. JbjWwvFoBFiQaMrd
    JbjWwvFoBFiQaMrd
    y2gqLUPEFroqLlYj
    mIcuYoJSO1d6n6Wu
    • Release the two clear plastic clips at the top of the device near the speaker using the spudger.

    • Simply push down the clip with the tip of the spudger.

    • Push lightly to ensure that the clips aren't damaged.

  5. AuyLYGPCMnMqQKp2
    AuyLYGPCMnMqQKp2
    yW1l53rgafVV5XED
    XgjTS3usyP2uu6HF
    • Use a plastic opening tool to wedge between the screen and the device, while simultaneously holding the clip open from step 4.

    • Pry the screen very gently to avoid cracking the glass

    • Start to remove the screen from where the black plastic trim was removed and work the tool around the sides of the device. You will here small pops from the clips on the sides being released.

    • The Amazon Fire can now be opened with the two flex cables at the base still connected

  6. tgd3IKynBoQUUmHc
    tgd3IKynBoQUUmHc
    FVJBMDAebNuLaNLN
    • Now we have to remove the two flex cables attached to both the screen assembly and body of the device.

    • The cable addressed in step 8 is highlighted in orange.

  7. t6gwgh4bvBHIuRws
    t6gwgh4bvBHIuRws
    5rxhFdNfXLfsCX5a
    tHLAJMyebqZKbCaA
    • First turn the device 90 degrees counterclockwise.

    • Wedge a spudger or plastic opening tool under the black flap of the larger connector and lift up.

    • Pull the belt out of the connector and lift it up.

  8. JISjZcSdJWB5GMYT
    JISjZcSdJWB5GMYT
    DVE2Ub3X1FRGoalv
    61bRSLtc32H1jfFl
    • Turn the device 180 degrees.

    • Repeat step 7 for the smaller flex cable connection.

  9. LOPjJvFvR5UFnR2P
    • Your screen assembly has now been removed and can be replaced.

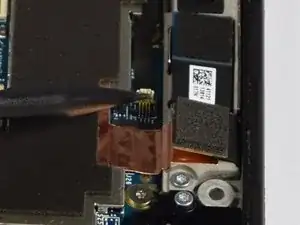

  10. hefFPbGlNBLRFIfG
    hefFPbGlNBLRFIfG
    Akkmc3lIl6xQHUC5
    SSMYjMHODhYst4CS
    • Use the spudger to lift the the small white flap holding the narrow cable down.

    • Pull the narrow flex cable up and out to detach it from the motherboard.

    • Push the band off to the side so it is out of the way.

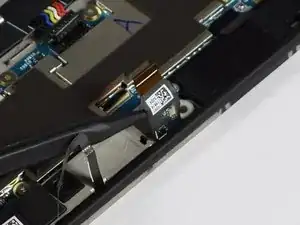

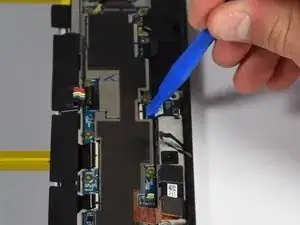

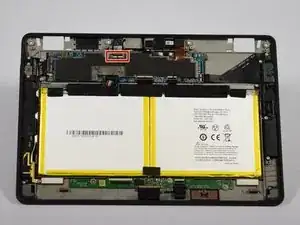

  11. MtgZbAskfFZatxbV
    MtgZbAskfFZatxbV
    VrwCrdKqrJ4RMYb4
    ureLqnchWHSBl5wj
    • Now we have to detach the second flex cable connected to the camera housing.

    • Use a plastic opening tool to flip up the flap of the connector cable.

    • Once the flap is flipped up you can pull the flex cable up and out using the spudger.

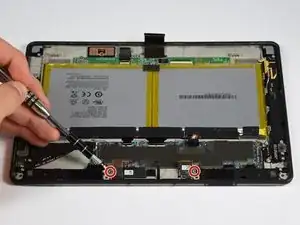

  12. LQB2oZbxUeKl2YBF
    • Using a T5 screwdriver remove the two 2.5 mm T5 screws securing the grey camera housing to the device.

  13. N4EdJePGQmRSgioU
    N4EdJePGQmRSgioU
    A6AGAprDvcORLaeP

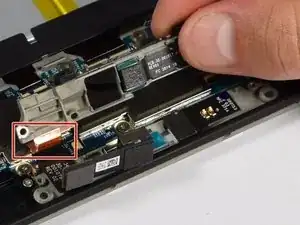

    • Using a spudger gently lift the camera housing from the device.

    • The housing is held in by two pins at the edge of the device so you have to pull the housing from the edge of the device inward and then up.

    • The camera housing is still attached by one cable, so do not attempt to remove yet.

    • Under the copper strip you will see one more flex cable that needs to be detached. Proceed to step 5 to remove.

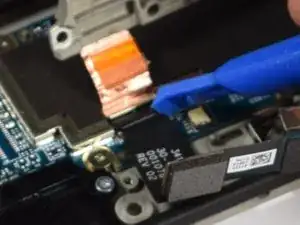

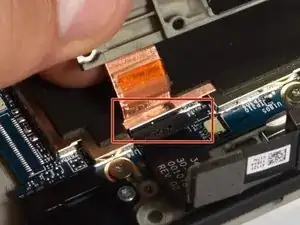

  14. 5bjpkIHVJfIHGAtT
    5bjpkIHVJfIHGAtT
    16THoQA3VMKAxGj2
    • Gently peel back the copper strip until you can see the flex cable connection under the black strip indicated.

    • Be careful not to tear the copper strip.

    • Use a plastic opening tool to release the flap on the plug and pull out the cable.

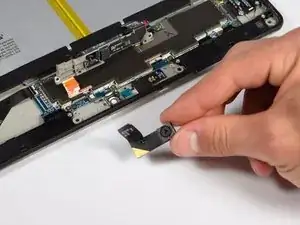

  15. WBneumGoWaKSKgHw
    • Once the flex cable is detached you can now remove the rear camera from the camera housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
