Amazon Fire Phone Display Replacement

Geschrieben von: Lissandra Ilcyn
  • Kommentare: 7
Amazon Fire Phone Display Replacement

Schwierigkeitsgrad

Difficult

Schritte

19

Zeitaufwand

20 - 30 Minuten

Einleitung

Remove the display screen in order to fix a broken screen.

  1. RpnHTM4UOkuJRXYV

    • If the display is damaged use clear packing tape to contain any glass shards.

    • Make sure the entire surface of the display is covered with tape.

    • Wear safety glasses to protect your eyes.

  2. OAKDl3vTJLF4NlMV
    OAKDl3vTJLF4NlMV
    OFpIJqxWCjVUiGkE
    KnvxgeEbSVrjATGm

    • Power off your phone.

    • Remove the SIM card from the left side of the phone by pressing the small hole and allowing it to eject using the 0.8 screwdriver head.

    • Remove the two 4mm screws on the bottom of the phone using the Torx T3 screwdriver.

  3. cgQU2VXhJXDoo1M1
    cgQU2VXhJXDoo1M1
    GZJvFwCnvOR6xFWm
    4gRlkdQZ65XIgfZD

    • Press the small suction cup just above the home button.

    • While lifting up on the suction cup insert an opening pick into the crevice between the screen and back casing to pry the screen off carefully.

    • Carefully separate the two halves to avoid tearing the volume rocker ribbon cable.

    • Using the opening tool, disconnect the volume rocker ribbon cable from the base of the phone freeing the two halves of the phone.

  4. ZjNcPUvTNmvFDFcj

    • Using the J000 screwdriver head, remove the three 3mm screws holding the bracket in place.

    • Remove the silver bracket that was held into place by the three screws just removed.

    I kind of like the way the battery just “disappears” between step 5 and 6; mine was glued in with a REALLY good quality adhesive tape that took some chiseling to get free; happily, the battery didn’t explode, hopefully it will still work.

    vincentfasano -

  5. xEmcKGWBbnkvFyM4

    • Disconnect the battery connection cable by using the plastic opening tool and applying light pressure upwards on the cable.

    Single hardest step, removing this battery takes both time and the jaws of life, it has an adhesive strip that will nearly RIP the battery or motherboard of the phone part, just keep careful while your at it, both mine and my wifes survived the tearing of this battery out, iv never been so sure I was breaking something while removing the battery but they went back together very easily once the devil adhesive let the battery go. This battery the the differential between a 1star difficulty and the 5star difficulty.

    Isaaru Narom -

  6. q4rvHFhLHonwD1cM
    q4rvHFhLHonwD1cM
    6rTKQyORnCpSftTI

    • Unscrew the 1mm screw on the top left side of the phone

    • Maneuver the bracket off slowly

  7. 1bcTvDtSUBgEtsud
    1bcTvDtSUBgEtsud
    AhkfgBcDuLoMxDBC
    H1lCisHguuPokTZa

    • Disconnect the 9 cables along the top and right side of motherboard using the plastic opening tool

  8. tMSOemD42ZVvVLL1

    • Unscrew the 3mm screw located on the top left side of the phone with a flat head

  9. 6nsSXtS6cGZXax56
    6nsSXtS6cGZXax56
    E5NamqOyBmkCV1gK
    luI4DCTJIJiddQHX

    • Unscrew the four 2mm screws along the right side of the motherboard with a philips head

  10. YBAWrjVBkDA6h3qq
    YBAWrjVBkDA6h3qq
    ge1spHPkdfwLZwao

    • Carefully lift up the motherboard and using the spudger pry camera from the camera holder

    Boy, that could use a little more detail - pry camera from camera holder accompanied by a pic in which the fingernails and only the fingernails are in focus kind of leaves us wanting more…

    vincentfasano -

  11. MJ5BUuvJsZ3mSwWT

    • Lift off bottom plastic piece with flat antenna cables

    we really don’t have a feel for focus in this camera, do we?

    vincentfasano -

    how to change the charging port

    hamzahassan22222 -

  12. xBXAy5ESceGqrABi

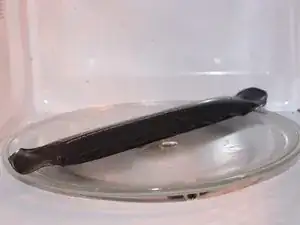

    • We recommend you clean your microwave before preceding to heat up the iOpener.

    • Place the iOpener in the center of the microwave.

    • Heat the iOpener for thirty seconds.

    • Be careful not to overheat the iOpener and always wait at least three minutes before reheating the iOpener

  13. svVfHcdKsc1ZieTR

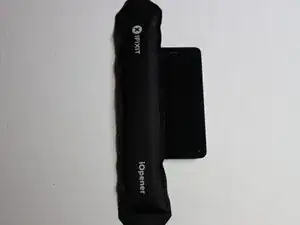

    • Lay the iOpener on side 1 of the phone for 90 seconds before attempting to open the front panel

  14. deDvDSLPtiEYTLJe

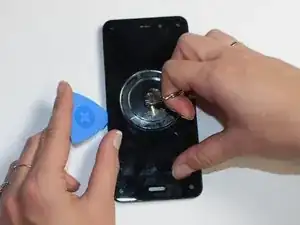

    deDvDSLPtiEYTLJe

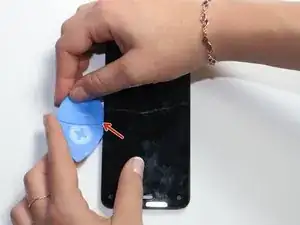

    1aGCgOTXmTLvLIC6

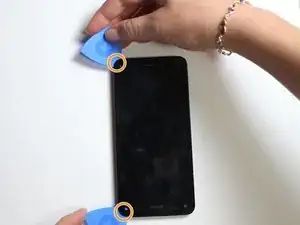

    uPrdqrQMrahiXcy2

    • Using the Suction Cup to slightly lift the screen, pry one opening pick into side of the phone.

    • Insert another opening pick next to the first one.

    • Slowly slide the two Picks to the corners of the phone.

  15. igSJpMpUECptrCSX
    igSJpMpUECptrCSX
    EdvGXi1tSPQ42L1c

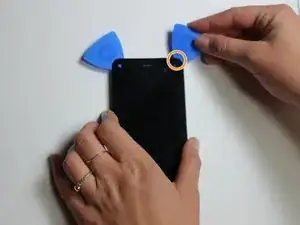

    3QIW4L5QqQksLCpO

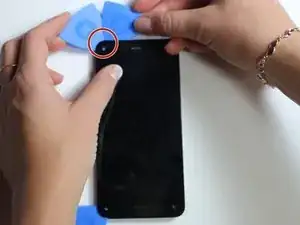

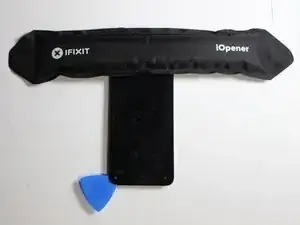

    • Place the iOpener on side 2 of the phone for 90 seconds.

    • Insert another pick into side 2 of the phone.

    • Slowly slide the pick to the next corner.

    • If necessary, reheat the iOpener. Don't reheat it more than once every 3 minutes.

  16. yP1ShvPI2Q2Kjt3V

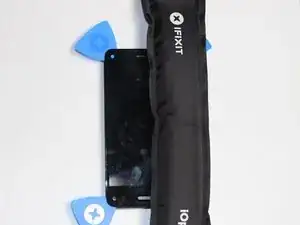

    yP1ShvPI2Q2Kjt3V

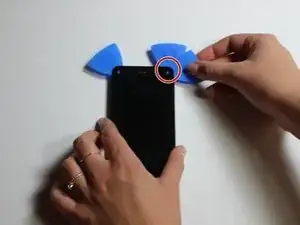

    YslmgqoRwObWU62U
    hfB6SiIquX1pEwyI

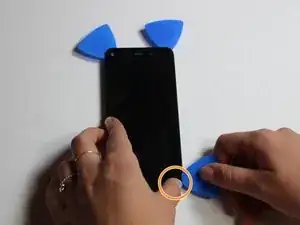

    • Place the iOpener on the 3rd side of the phone for 90 seconds.

    • Place a pick in the corner of the phone.

    • Slowly slide the the pick to the opposite corner of the phone.

  17. BoABotGLcKA4X2sh
    BoABotGLcKA4X2sh

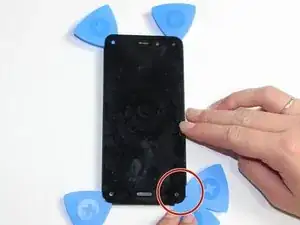

    YLfNt1RiGqOti1qO
    xjsdMMfUYfYhqoN5

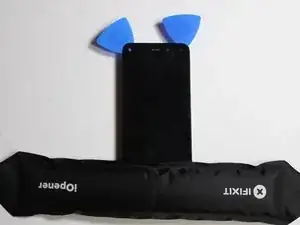

    • Place the iOpener on the last edge of the phone for 90 seconds.

    • Place the pick in the corner.

    • Slowly slide the pick to the opposite corner.

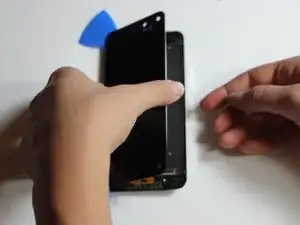

  18. G1xVJhewJup4ZLAL

    • Carefully separate the screen from the front panel of the phone by inserting the picks farther towards the center and pulling the screen off.

    • Slowly and carefully do this to avoid breaking, bending or shattering the screen.

    • If part of the screen isn't easily coming off try reheating the iOpener and placing it on the problem area.

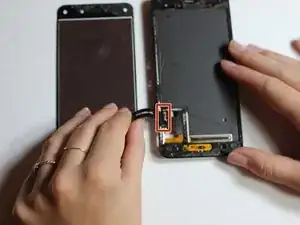

  19. 4BBLiNvo5sfIv4Fp

    • Remove the screen slowly.

    • Pull the cable out of the hole carefully.

Abschluss

To reassemble your device, follow these instructions in reverse order.
