Amazon Kindle DX LCD Replacement

Geschrieben von: Lori White
  • Kommentare: 4
Amazon Kindle DX LCD Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

10 - 30 Minuten

Einleitung

This guide will show users how to replace the LCD screen on the Amazon Kindle DX in just a few simple steps.

Note: This guide is incomplete, the motherboard will need to be removed before the screen can be replaced.

  1. J4xxLgWyNc5RWqra

    • Take your Kindle and place it screen side down in order to open it from the back. Use the opening tool from the ifixit tool kit and insert it between the metal casing and plastic top piece.

  2. mD2ywvNNv2O1GTGN

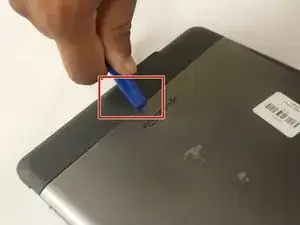

    • Once enough pressure is applied the small piece will pop open.

  3. OqGuqA51lgmKpaMr

    • Remove the plastic piece.

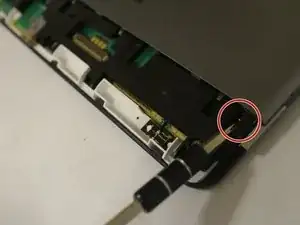

  4. aBY2mjuCBRoeqZSQ
    aBY2mjuCBRoeqZSQ
    l1uwrMXPjFgtAV3Q

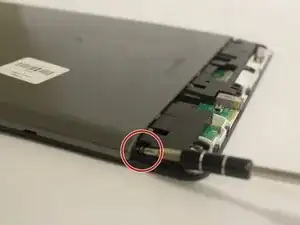

    • Once the small plastic piece is removed you will need to locate two 40mm screws on both corners of the remaining casing. Use the PH000 Philips Head Screwdriver from the tool kit to remove both screws.

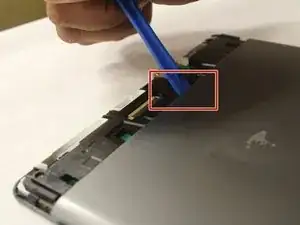

  5. qQlc4gEIFf2nKpaZ

    • Use the opening tool again to take the off the bigger metal piece.

  6. 6IEuG6DJ13iFi4GV

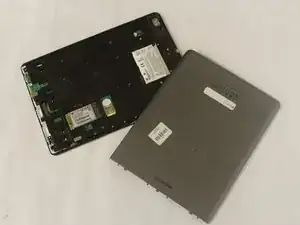

    • Once the piece removed, locate the battery.

  7. tT2d6pwj1du1fJJq
    tT2d6pwj1du1fJJq
    aXyhVyxvpRucpwFs

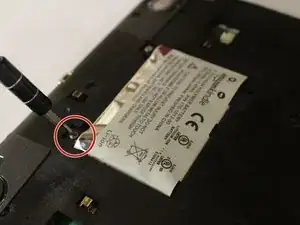

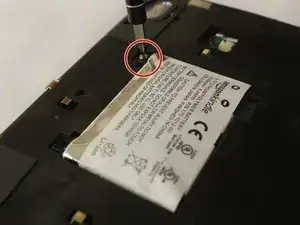

    • Locate the two 30mm screws securing the battery on the bottom of the Kindle DX. Use the PH00 Philips head screw driver from the tool kit to remove both screws.

  8. KJLPwSqLxX52fGnM
    KJLPwSqLxX52fGnM
    GmG1btLFGbWVCigb

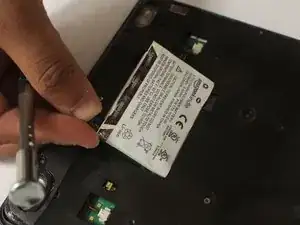

    • Take the battery off once the screws have been removed.

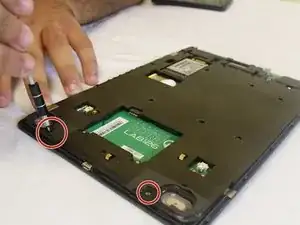

  9. JlvNxZLKvMefgDZw
    JlvNxZLKvMefgDZw
    MnMfEoThEC2qTUdY

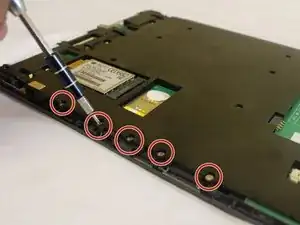

    • Unscrew the 30 mm screws using a Phillips #000 screwdriver as shown in the picture.

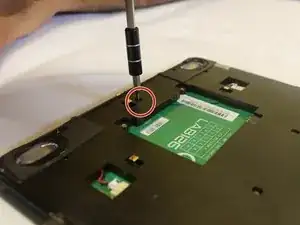

  10. BpxGqTUsjsrA1d5A
    BpxGqTUsjsrA1d5A
    5WKjMdloWWVdQA6k

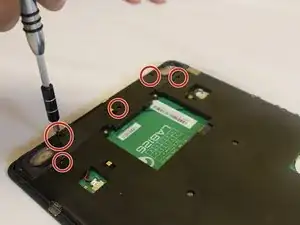

    • Unscrew the 30 mm screws using a Phillips #000 screwdriver as demonstrated in the picture.

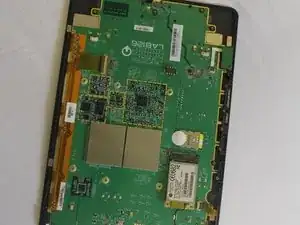

  11. BDZMwjhPlEWhvOXk

    • Remove the black case to reveal the mother board.

    The back case will still be attached to the motherboard here because the two speaker wires are still connected. You made no mention of removing the speaker wires? These connectors are small and stubborn while removing.

    airshack -

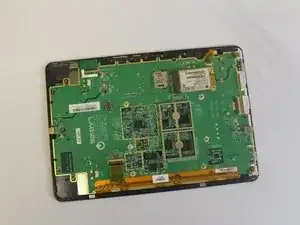

  12. JADUNHR2LtFLkIGO

    • Remove the motherboard from the display assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
