Einleitung

The On/Off switch located on the front panel may become damaged and no longer function correctly. With a dysfunctional switch, you may not be able to get the shredder to operate.

  1. O6W2RTMS2wlp3O3j
    O6W2RTMS2wlp3O3j
    CgsLHl4dj3fpZsPI

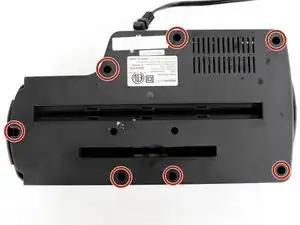

    • The unit head needs to be switched to the off position and unplugged before any disassembly.

    • When removing screws in the following steps, make sure the unit is resting on a flat surface because pieces will easily come apart.

    • Remove seven 11 mm Phillips #1 screws from the underside of the head unit.

  2. FCPrRKUVhCxNlhEh
    FCPrRKUVhCxNlhEh
    cKoVXy45jAjSOEXQ

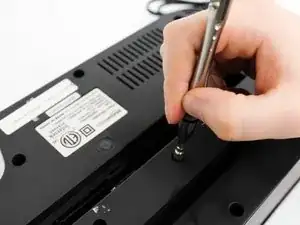

    • Upon removal of the next screws, the front panel and the shredding component attached to it will fall apart from the back panel so have the unit resting on a flat surface.

    • Remove two 50 mm Phillips #1 screws from the middle of the underside of the head unit.

  3. 3NGmJwCdVENQFAVo

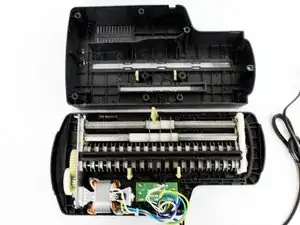

    • Lay the back panel away from the front panel on a flat surface.

    • The back panel will be light because it is only the plastic, while the front panel will be heavy with the shredding component attached to it.

  4. ISBOUT5KELTCtKMU
    ISBOUT5KELTCtKMU
    Y12tDQP3rvuBUX1U

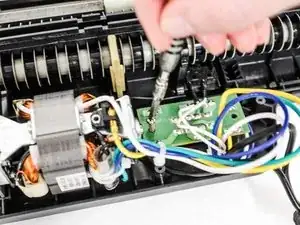

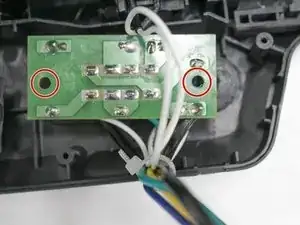

    • Find the green control board that is located next to the shredding motor.

    • Remove two 11 mm Phillips #1 screws located on opposite sides of the control board.

    • You may need to move wires over to find the screws.

  5. r1QQiYEwD1euWYan
    r1QQiYEwD1euWYan
    MSuyYwaOItWNCRY5
    e23BAxYpYjXSyAAJ

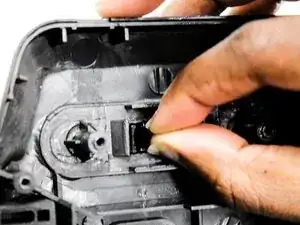

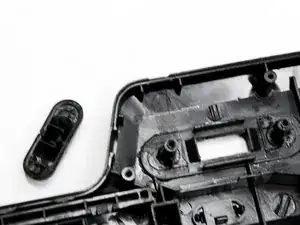

    • Pull the front panel away from the shredding unit.

    • Locate the black On/Off switch attached to the front panel where the control board was once attached.

    • Squeeze the wings of the On/Off switch from the inside of the front panel to detach it from its slot in the panel.

    But, what do I replace the On/Off Switch with? What is the part number of the replacement switch? How much does it cost?

    Mike Greenawalt -

Abschluss

To reassemble your device, follow these instructions in reverse order.
