Andis 1875-Watt Fold-N-Go Ionic Hair Dryer Outer Casing Replacement

Geschrieben von: Scott Havard
  • Kommentare: 1
Andis 1875-Watt Fold-N-Go Ionic Hair Dryer Outer Casing Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

No-one likes hot air coming from broken plastic. Use this guide to replace the outer casing of your Andis Fold-N-Go Hair Dryer to keep hot air in a happy home.

  1. KNFBQTyVVTUKsDlF

    • Remove the two Phillips #00 screws:

    • One Phillips 16mm screw

    • One Phillips 14 mm screw

    • All of the hair dryer's components are held together by these two screws. Parts may quickly separate after screw removal. Tape can be used to hold everything in place.

  2. vHEY6FyMH12QovYZ
    vHEY6FyMH12QovYZ
    vZxa1CfBXEO3AZtn
    qVdSTMRZn46Z1uOA

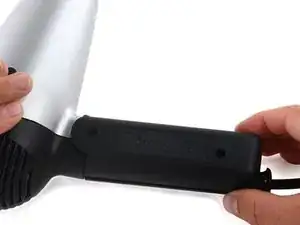

    • Remove the top portion of the handle.

    • The model information and warnings are engraved on the top portion.

  3. 2YqXssGhr5ibbY4n
    2YqXssGhr5ibbY4n
    BMMwHPpGahVjOvKK

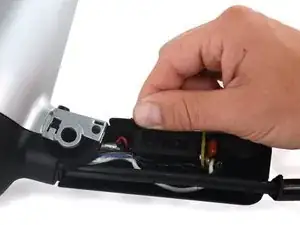

    • Remove the settings switch by lifting straight up.

    Excelente tutorial creo que aquí puede que encuentre lo que andaba buscando resulta que tengo un blower parecido a ese en fin tiene un capacitor de tres alambres se le despego uno y no se donde va a ver si me pueden ayudar agradeceré su ayuda

    Leury -

  4. Kk3Pkdy4sRYSiX5V
    Kk3Pkdy4sRYSiX5V
    crcZDXoddrI2d3nD
    X5RWbNdTAbfCEB2j

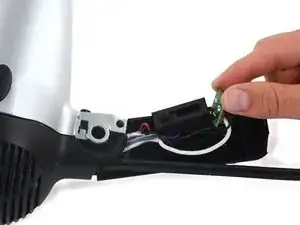

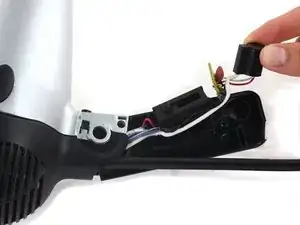

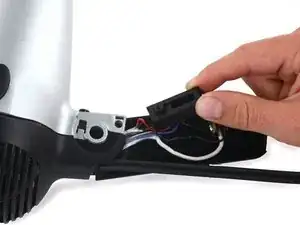

    • Remove the internal components from the rear portion of the handle.

    • Remove the switch

    • Remove the circuitboard

    • Remove the capacitor in black plastic

    • These parts are not secured to the handle by anything, but are all connected to each other by wires. They shouldn't be difficult to remove, but remember that they will come out together.

  5. XqbeRwAVebhlVR4U
    XqbeRwAVebhlVR4U
    UUcZEng1bYlqiLAY
    fFAqUkFu4crNoXyD

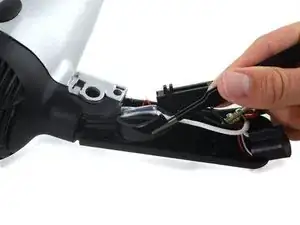

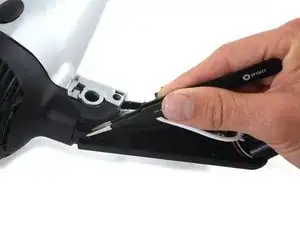

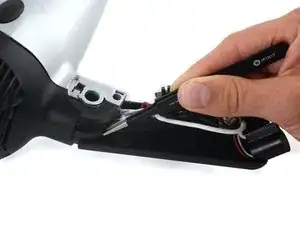

    • Remove the sliding black cover at the top of the handle.

  6. kqg64DJDndKF5ZhX
    kqg64DJDndKF5ZhX
    sZZyGCr1OPkMxex3

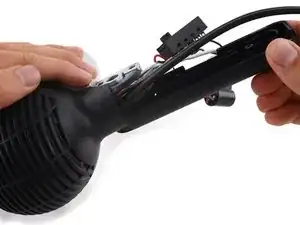

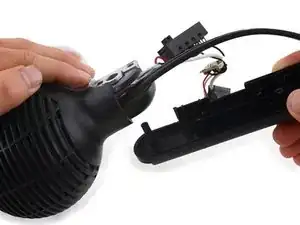

    • Remove the lower portion of the handle by sliding the peg out of the slot at the top of the handle.

  7. GqwYxLJWooEQtDpm
    GqwYxLJWooEQtDpm
    Rid4JIKCCV1YUMv5

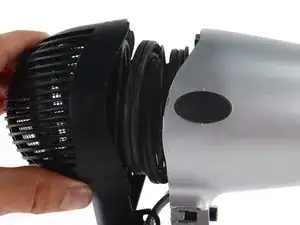

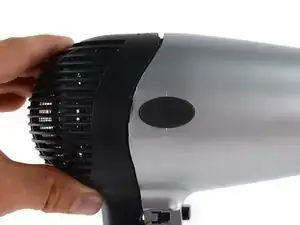

    • Separate the silver front casing from the black rear vent.

Abschluss

To reassemble your device, follow these instructions in reverse order.
