Einleitung

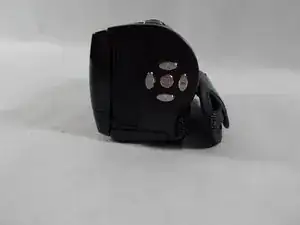

This guide will show you how to replace the directional buttons in case they get jammed or break.

  1. D4vi6TtCaWbFGCKc
    • At the bottom of the camera you will see the battery compartment cover as seen in the picture

    • To open this compartment, apply pressure in the direction of the arrow and remove it.

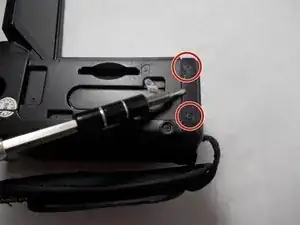

  2. doGVmfQJmha2QBpk
    • Remove the 1mm screws above and below the screwdriver.

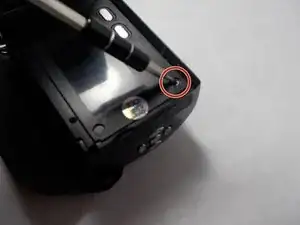

  3. JTJurQ3IB4wDyBVQ
    • Remove the 1 mm screw shown in the picture

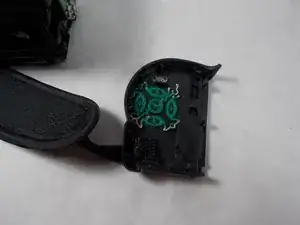

  4. SKAdEAtFMQUvhrvt
    • Once all previous screws have been removed, remove the panel.

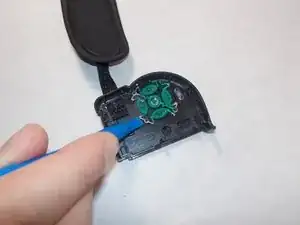

  5. YlZMraWHGCCORGin
    • Now remove the directional button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
