Einleitung

This guide is useful for anyone who wants to replace the strap on this camcorder.

  1. D4nb3U6BFOSrxgxM
    • At the bottom of the camera you will see the battery compartment cover as seen in the picture

    • To open this compartment, apply pressure in the direction of the arrow and remove.

  2. yYSSpHYW1VPOd41K
    • Remove the 1 mm circled screws with the Phillips head #000 screwdriver.

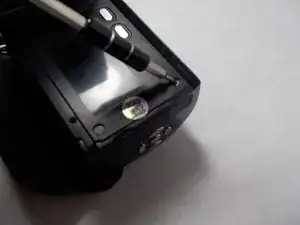

  3. GgEqcfcYqKQHHQ4N
    • Remove the 1 mm Phillips head screw.

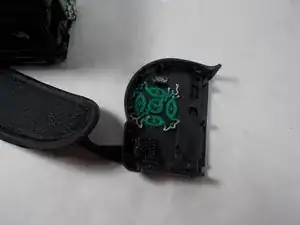

  4. 11VkQCwcK4IiQlIJ
    • Once all previous screws have been removed the panel can be pulled off of the camera.

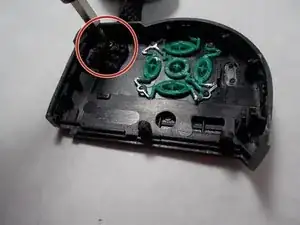

  5. 4otcLSQ12Gnyk4Jq
    • Use your screwdriver to remove the 1 mm Phillips head screw and release the strap.

Abschluss

To reassemble your device, follow these instructions in reverse order.
