Angelcare AC401 Baby Monitor Disassembly

Geschrieben von: Kevin D
  • Kommentare: 13
Angelcare AC401 Baby Monitor Disassembly

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

35 Minuten

Einleitung

hello all, today we will try to repair the angelcare baby monitor.

two rechargeable battery's exploded, the acid was around an electric power cable. so there were two problems :

1 bad connection

2 battery damage.

we will check also the second unit.

  1. iGJwFVBFQDmOvZGd
    iGJwFVBFQDmOvZGd
    hWlSDFJF6EWKqTUu

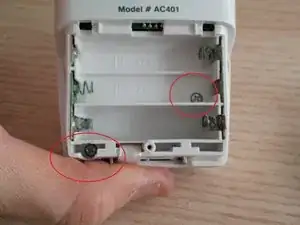

    • first remove the 2 screws at the green plastic plate.

  2. chWbFIxKYbyWVtDC

    • remove the plastic plate ( battery compartment)

    • you'll see that there are 2 more screws. Remove them.

  3. HCyGoJetblXYYWER
    HCyGoJetblXYYWER
    XowBrG6cWgNtqT2a

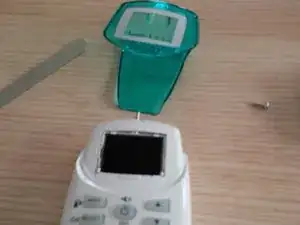

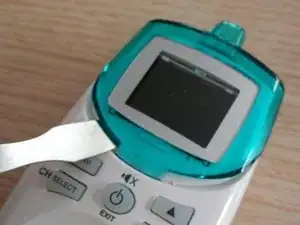

    • now gently remove the green plastic plate arrounf the baby monitor ( arround the screen) use a spudger to click it open.

  4. RBTGN1uPyhf4tekX
    RBTGN1uPyhf4tekX
    vpITcoETFL5KWdk1

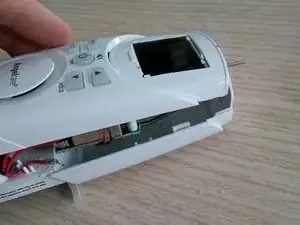

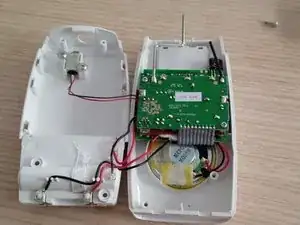

    • now open the monitor by clicking it open or slide it open. Sometimes its easier to use a spudger.

    • be carefull for the electric wires.

  5. DEomMNRQYiWiyWR4
    DEomMNRQYiWiyWR4
    v2ocQcqENaZXgCuB

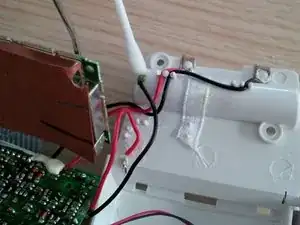

    • 2 battery's were exploded so the acid was on the black electric power wire.

    • use a cotton swab with a little bit of destilled water.

  6. eXKQWPoRJ2jRBZHD

    • remove the 2 PCB's by removing the screws shown in the picture.

  7. 5sZIBGulytLqkQeF

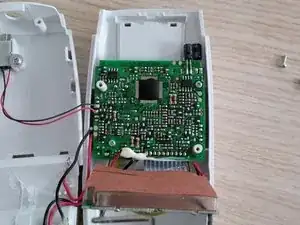

    • pull the first PCB up and remove the screws of the second PCB.

    • after removing the two PCB's, clean the acid on the PCB.

    • after cleaning the PCB's put it al together again.

    • first remove the battery lid. 1 screw.

    • slide it out like you see in picture

    • remove battery's

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kevin D

Mitglied seit: 02/05/14

7102 Reputation

13 Kommentare

Thanks for this. I couldn't figure out how to get the blue clip off without breaking it to clean some dirt on the screen. Googled it, found this, job done.

Pete H -

Sometimes the activity of the reference quartz is 11,150 MHz, and the devices do not find each other.

I have so repaired the parent module.

Dmitriy, the city of Volzhsky.

Dmitriy N -

Hi Dimitriy - I am experiencing the issue with not finding devices each other. How have you fix it ? Is it a matter of replacing the reference quartz with new one ?

Jan -

Hi. At my Angelcare (AC401) parent unit the screen has slowly become worse and worse. At first, parts of the temperature figures dissapeared, then the symbols around and now I no longer see anything... But the unit still works! (And alert me if the baby's crying) What do you think, is there anything I can do or do I need to buy a new one?

Terese Rehn -

Hi There. I’m having the same problem. Did you find a fix or did you buy a new unit?

Eugene -

If your screen is losing display segments, this guide shows the required repair.

https://scottyau.blogspot.com/2014/06/ba...

Colin -

I had the exact same problem, so, I opened the unit as per the instructions above, warmed the ribbon that leads from the little circuit board to the screen with a hair dryer until it was too hot to touch, then pressed the ribbon into the screen AND at the end where it touched the circuit board as I was unsure where the problem lay, waited for it to cool down completely by assembling the unit and it worked completely again!!!

Hinata Cloete -

Screen repair:

1. Disassemble according to the above instructions. There is no need to take the screen out of its plastic housing.

2. Position the screen so you can see the ribbon coming to it and its contacts. From now on, the screen should not be moved.

3. Use a hair dryer or similar device and heat the PCB at the spot where the ribbon contact cable is attached to the PCB, leading to the screen. Heat it well enough its hotter than you can touch - the plastic on the nearby condensers and other glues should become soft.

4. The screen shall become transparent when hot, and black when getting colder. Worry not.

5. Use a tool to press the ribbon harder onto the PCB.

6. While at it, press with your fingers also where the ribbon enters the screen, I cannot say on which side of the ribbon your problem lies. Both shall be hot, they’re near.

7. Blow some cold air over it, leave it to cool.

8. Assemble it back to the original Step 4, test.

9. Mine works all but the two lower bargraphs!

10. Else, new PU is 36eur.

maybezweistein -

Hi there. I am having a problem with the monitor unit. Whenever I connect the power or the breathing monitor. It stops broadcasting. Only on batteries it broadcasts to the parent unit. Parent unit is fine, and the connection is also fine.

Lukas -

Lukas,

PCB have no corrosion due to battery leakage?

Kevin D -

Hello. Thanks for disassembly hints. I had issue with blank screen. This helped:  https://www.instructables.com/Repair-a-M...

HINT: Instead of hot-air gun use hot melt adhesive (https://en.wikipedia.org/wiki/Hot-melt_a...) gun. Just use its hot spike, and you will be able to point precisely to the place you need a heat.

Leos Poruba -

Thank you so much! Worked great!

Hinata Cloete -

Please, can somebody tellme the Speaker specs , mine got broken and i want to replace it.

Serge Urrutia -
