Anker SoundCore 2 Battery Replacement

Geschrieben von: Tripp Lersch
  • Kommentare: 3
Anker SoundCore 2 Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

This is a step by step guide to replace the battery in the Anker SoundCore 2.

Before replacing anything, be sure to take a look at the troubleshooting page for this device.

  1. JkA2VGpvuBLI6fSn
    JkA2VGpvuBLI6fSn
    UO1XwAHAEtjSM5RF

    • Insert a spudger between the front panel and the body of the speaker.

    • Pry around the edges of the front panel with the spudger to pry it away from the speaker body.

  2. AxUycqLUNoDDRIXj
    AxUycqLUNoDDRIXj
    YvHVYUThMOD2saNr
    BDLS5NUuQcAqbsrt

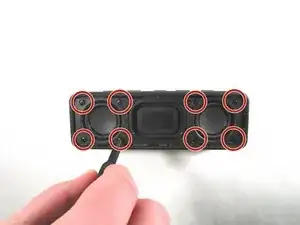

    • Remove eight 10 mm screws from the speaker mount using a Phillips #0 screwdriver.

    • Insert a spudger in the gap between the speaker mount and speaker body to remove the speaker mount.

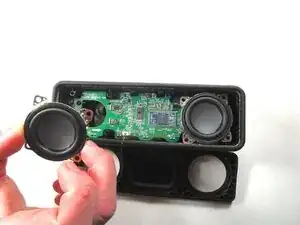

    • Use your hand to remove the speakers.

  3. B31XEXDC2ViW6GGt
    B31XEXDC2ViW6GGt
    usBDdrwMnSRnY4fB
    VcqxGiPGKc4KyvWX

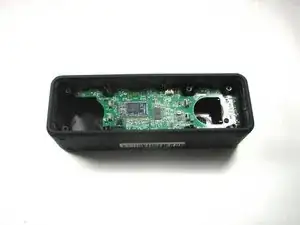

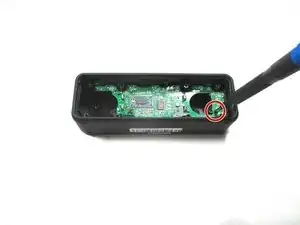

    • Remove the 10 mm screw that is holding the motherboard in place using a Phillips #0 screwdriver.

    • Flip up the motherboard to expose the battery.

  4. bLheilDy1MVJush5
    bLheilDy1MVJush5
    ErsjppYIsgugCuGh

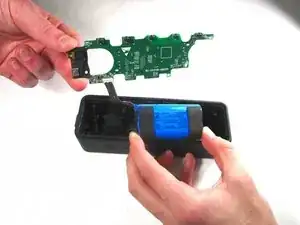

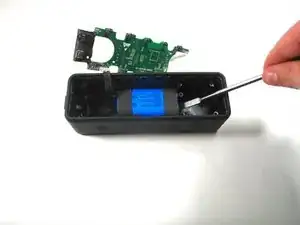

    • Use a nylon spudger to remove the battery from the speaker casing.

    • Caution: Do not use metal prying tools on a battery—these can puncture an unprotected battery, potentially causing a fire.

    • The battery is glued down so it may be difficult to remove.

  5. GbUOxMrSv2QKmASj
    GbUOxMrSv2QKmASj
    I1D6XMRAolDSgENo

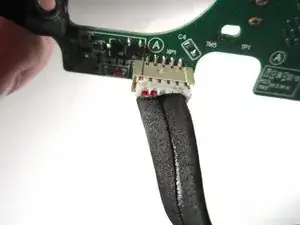

    • Unplug the wire that connects the battery with the motherboard.

    • When replacing the battery, plug in the new battery where the old one was plugged in.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Tripp Lersch

Mitglied seit: 14/01/21

402 Reputation

3 Kommentare

It would be nice to have the specifications of the battery so availability can be checked before disassembly.

Michael Anderson -

7.2V, 2550 mAh, 18.36 Watt - Hour

Kang Le -
