Anker Soundcore Flare Mini Battery Replacement

Geschrieben von: Ethan Holland
  • Kommentare: 3
Anker Soundcore Flare Mini Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 Minuten

Einleitung

The battery of the Anker Soundcore Flare Mini speaker is what holds a charge and creates power for the device. Without the battery, the speaker would not be able to function which makes it an essential component.

Before starting the replacement, make sure the speaker is turned off and is unplugged from the power cord!

  1. uBnFT52JF3D5cpOD
    uBnFT52JF3D5cpOD
    2grDyQbCLtKGqpvw
    3DDbVHZP1CpHZo1x

    • The rubber cover of the speaker is glued down.

    • Use precision tweezers to peel the rubber cover off of the bottom of the speaker.

  2. Lb1yyRE1V5Ny3tjL
    Lb1yyRE1V5Ny3tjL
    e2RY1kAAkBUQCd23
    feDkDWcg6bgpWsOs

    • Remove six 10 mm screws holding the plastic cover in place using a Phillips #000 screwdriver.

    • Use your hand to pull the plastic cover off the bottom of the speaker.

  3. 2PY6vpFWgyHKtoSH
    2PY6vpFWgyHKtoSH
    MBXnfEQnbCoNgGKY
    1gyF1bRNCMGqLxju

    • Remove the single 10 mm screw holding the motherboard in place using a Phillips #000 screwdriver.

    • Lift the motherboard up.

    • The motherboard is still attached to several wires underneath.

  4. SSuoObwPZMtHFxTM
    SSuoObwPZMtHFxTM
    tK5js1BbpGBQantQ
    TGdu6ODW46VxQ3x3

    • Use precision tweezers to firmly grasp the five power connectors and detach them from the back of the motherboard.

    • When removing the power connectors, do not pull the wires themselves.

    • Remove the motherboard from the speaker.

    The question I have a problem with me connect the electrical system

    Mary Luz Antonsdóttir -

  5. iRGRcPuGf1d6gxZP
    iRGRcPuGf1d6gxZP
    s3dslBWkSQrARNRX
    FWbSJux1oohdXNbM

    • Remove the four 11 mm screws from the white plastic cover using a Phillips #1 screwdriver.

    • Remove the white plastic cover from the speaker.

  6. 2evoNBeaFctKOQPA
    2evoNBeaFctKOQPA
    ofiMoyGqchTwnYMi

    • Remove the other four 11 mm screws holding the outer shell in place with a Phillips #1 screwdriver.

  7. MvImvfVfwmtfxCco

    • Pull the charging port away from the side of the speaker.

  8. GVkunpwgJJU64GtZ
    GVkunpwgJJU64GtZ
    TFFHG1MTSadJWh6g
    MJoNlbQMNCBFIpoV

    • Use a spudger to loosen the cover from the inner components of the speaker.

    • Slide the cover completely off.

    • One wire will still be connected to the shell.

    It could help to explain how remove the last connector

    Ryan Reish -

  9. AsrII5TsIXAx3Bup
    AsrII5TsIXAx3Bup
    l1XS6KWMgIuLbUbb
    T5NYDq3CLt6S6Cxd

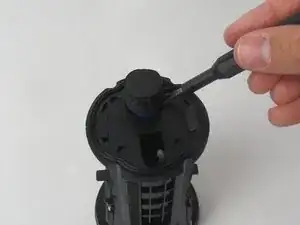

    • Use a spudger to pry the battery out.

    • It will be tough to start, but once you work the top part of the battery out with the spudger, you can pull it the rest of the way by hand.

Abschluss

To reassemble your device, follow these instructions in reverse order.
