Anki Vector Battery Replacement

Geschrieben von: Shay Takei

Kommentare: 32

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

7 - 30 Minuten

Einleitung

This guide details how to fully remove the battery of the Anki Vector. Due to its location, this procedure requires many steps accessing the battery.

Remember to only embark on this guide if you have followed the Anki Troubleshooting Page and the device is still broken.

You should be using this guide if vector fails to charge, power on, or has an extremely short battery life.

While disassembling Vector, make sure to look out for disconnected cables and other broken parts, as often times these can be fixed without entirely replacing the battery.

Werkzeuge

Schritt 1

Using the iFixit opening tool, insert the corner under Vector's golden side panel and lightly twist.
Repeat this step on the other side.
The panel should pop off without much force.

Where can i buy a display for vector?

Can you help me?

carlosanjo - 23/01/21

See the comments below

Russell English - 23/01/21

Schritt 2

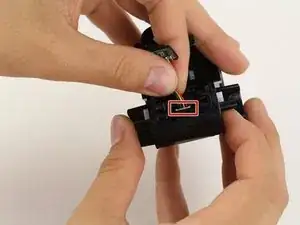

Insert the corner of the square end of the spudger under the side plate above the partially visible screw.
Lightly turn the spudger to separate the plate from Vector's head.
Work the spudger around the plate until it comes off.
Repeat this step on the the other side.

This is easiest to do by starting near the top screw hole.

David Tock -

Schritt 3

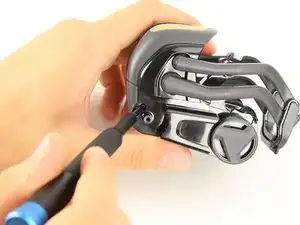

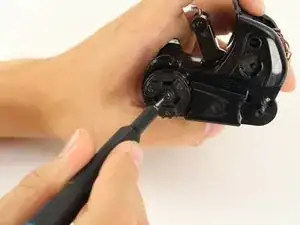

Using a Phillips #0 screwdriver, unscrew the two 2 mm screws on the side of Vector's head.
Repeat this step on the opposite side.

Where you can buy the lcd screen

NOT_me: D - 03/04/20

Schritt 4

Pull apart Vector's head. It should separate down the middle.
Remove the screen protector by gently pulling it free from the two face halves.

Schritt 5

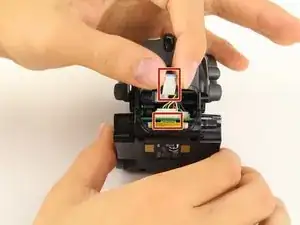

Using your thumb and index finger, unplug the display from the plug in Vector's neck.
Pull the LCD and speaker assembly from Vector's head.
There is a very thin insulating rubber sheet located at the base of the screen. Be careful not to tear it when removing the display.

This board contains a lot of his tech. CPU, GPU, Wi-Fi, Bluetooth, camera, screen, storage, etc. Replacing this will replace his personality, and may mess up his sensor calibration.

Kerigan Creighton - 20/05/20

Schritt 6

Gently pull out the two halves of Vector's head from between his arms.

Pull his forklift up while doing this

Adm - 07/11/20

When putting him back, don't assemble these two parts at this point: do the one with the gear teeth only.

Then, go back up the steps to attach the LCD and speaker assembly, and then come back and do the other side of this along with the screen protector.

In this case, it helps to lower the arms and rotate the head up.

Paul Chavez - 06/12/20

Schritt 7

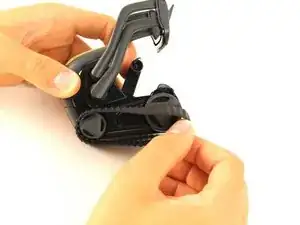

Remove the Anki Vector's belts on both sides of its body by gently sliding them off.
You should be able to pull them off without much effort.

Schritt 8

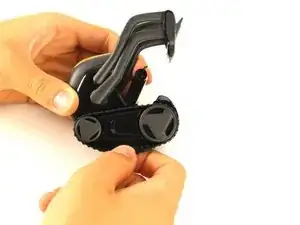

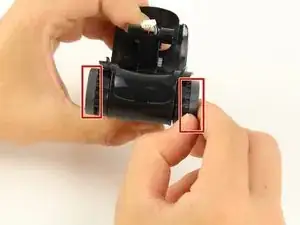

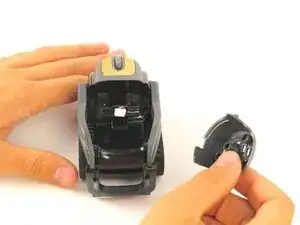

Pull off the covers attached to Vector's rear wheels.

Schritt 9

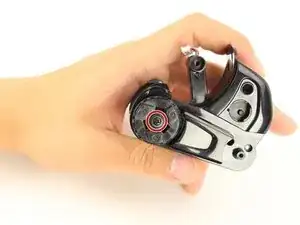

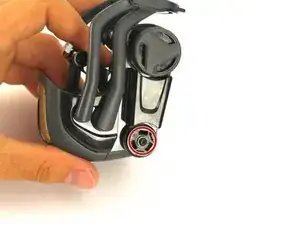

Unscrew the 2 mm screws located under the wheel covers using a Phillips #0 screwdriver.
Remove the rear wheel.

Schritt 10

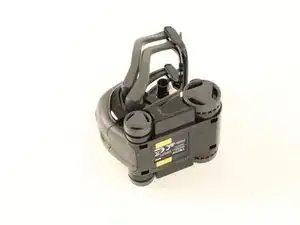

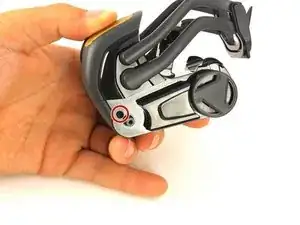

Unscrew the two 2 mm body screws using a Phillips #0 screwdriver.

Schritt 11

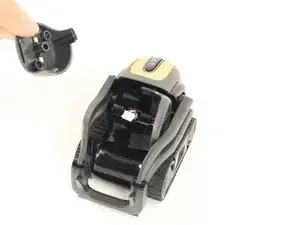

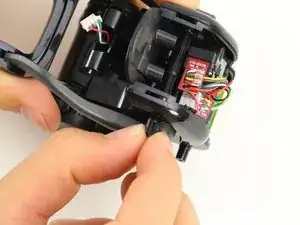

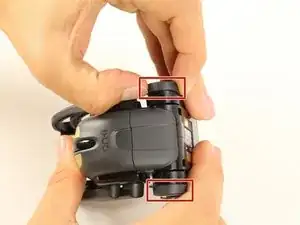

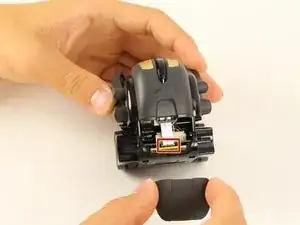

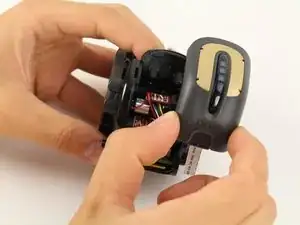

Using two fingers gently pull off the lower rear panel.
Using your fingers, unplug the ribbon connector.

Schritt 12

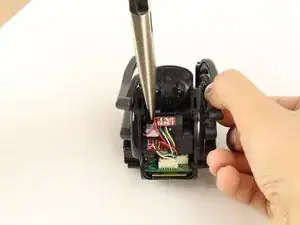

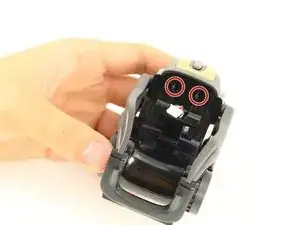

Unscrew the two screws behind vector's neck.

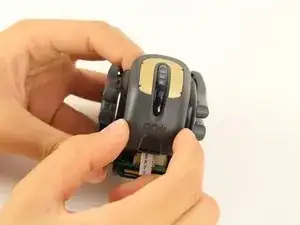

Remove the capacitive touch assembly.

*using a Phillips #0 screwdriver

Adm - 07/11/20

Schritt 13

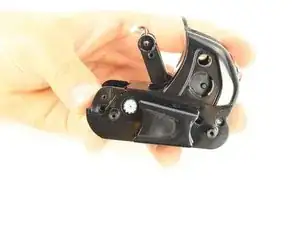

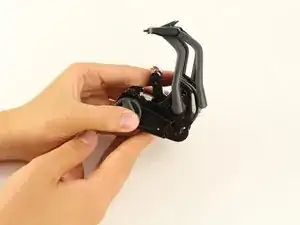

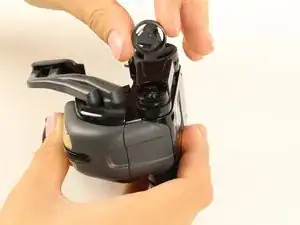

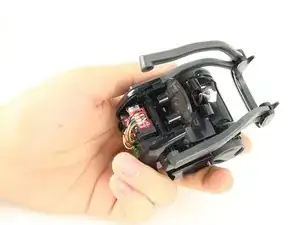

With a moderate amount of force pull one of vector's top arms away from his body until it disconnects from the shaft.

To help remove the risk of breaking an arm, remove the surround of the forklift U (it's clipped on lightly), then remove the screws (4) holding his arms on at the lower end - this reduces the risk of breaking his arms as you remove them.

Mike Curtis-Rouse -

Schritt 14

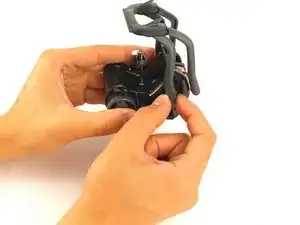

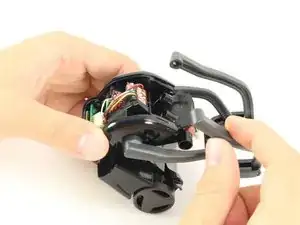

Gripping the shaft with needle nosed pliers, pull the opposite top arm off the main shaft.

Schritt 15

Pinch one end of the arm shaft and push it into the body.
Grab the other end and pull the shaft out of the body.

I very much recommend doing this at the beginning. It makes the rest of the repair a lot easier. You can pry it off at one side then push in at the bottom of the other side with a screwdriver or other pointy object if it doesn’t snap away from the shaft.

Kerigan Creighton - 20/05/20

Schritt 16

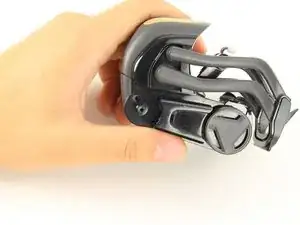

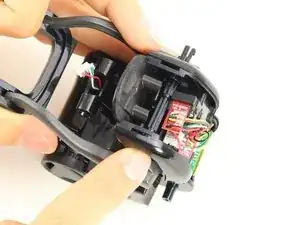

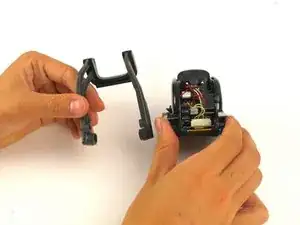

Raise vectors arms all the way up and gently pull each arm out of its socket.

Schritt 17

Pull the wheel covers off of Vectors forward wheels.

Schritt 18

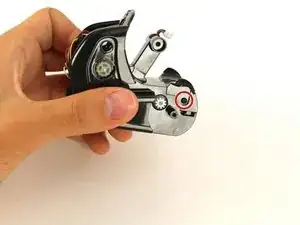

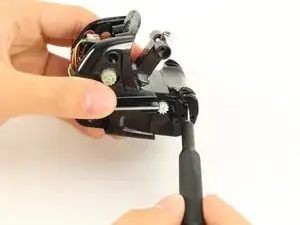

Using the same Phillips #0 screwdriver, unscrew the 2 mm screw under the wheel cover.

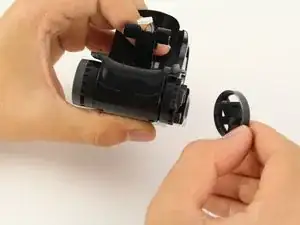

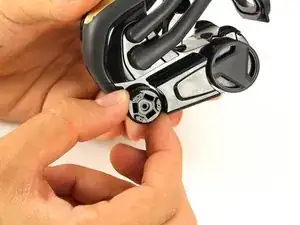

Gently pull the wheel off.

Schritt 19

Unscrew the two body screws located behind the front wheels.

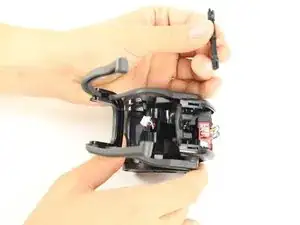

Gently pull the cover from Vector's body
Be careful when removing the cover. The infrared sensor connects the cover to the body by wires.

Schritt 20

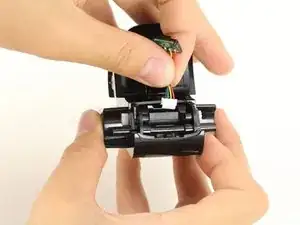

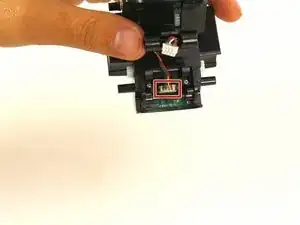

Gently unplug and remove the infrared sensor.

Schritt 21

Insert your Phillips #0 bit into a 4 mm nut driver and insert both into your bit driver.

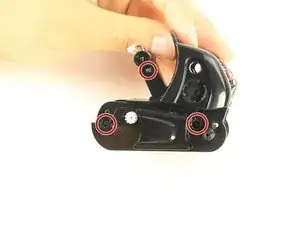

Unscrew the three body screws.

Schritt 22

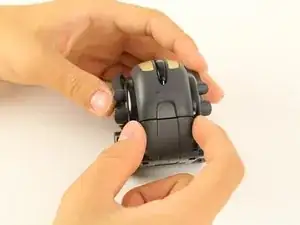

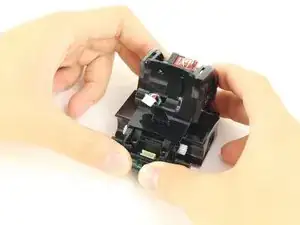

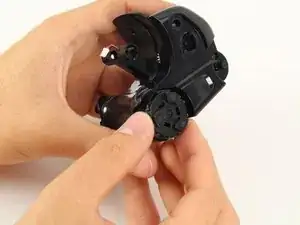

Gradually increasing applied force, pull the body apart.

Schritt 23

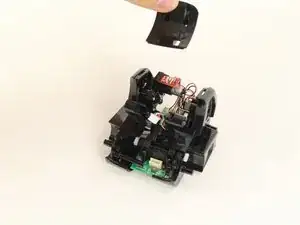

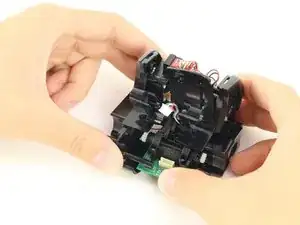

Remove the shoulder panel.
Remove the weight.

Schritt 24

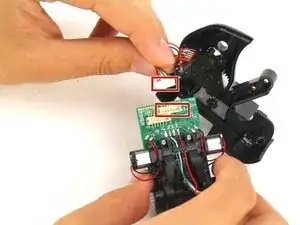

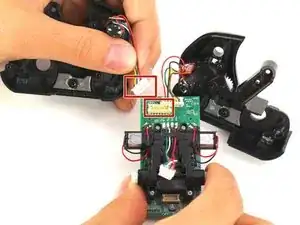

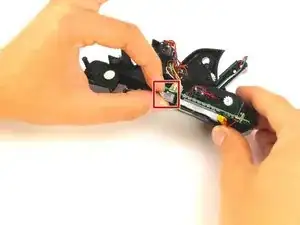

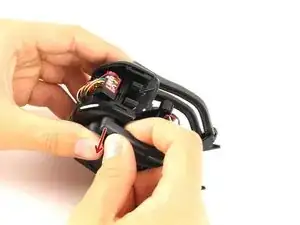

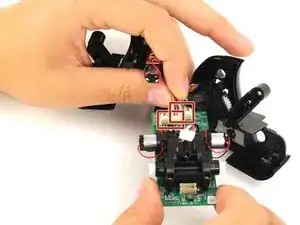

Unplug the two motor connectors from the motherboard.

can this be done without a soldering iron?

Elizabeth Wallace - 08/08/20

Schritt 25

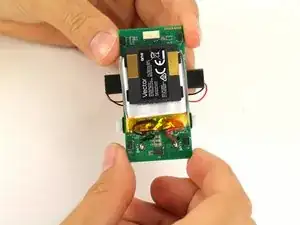

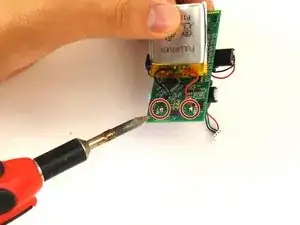

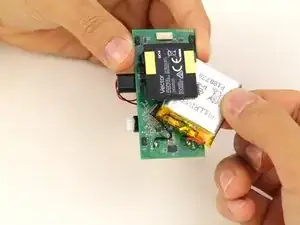

Wriggle the battery free from the motherboard.
Using a soldering iron, desolder the connections from the battery to the motherboard.

What are the dimensions of the battery?

Adm - 04/08/20

can you do this without a soldering iron?

Elizabeth Wallace - 08/08/20

Fml what is this

Murdox_ Mix - 20/10/20

hi..can i replace it with 850 m.amperes?

codreanuburtea594 - 20/12/20

Abschluss

To reassemble your device, follow these instructions in reverse order.
