Anki Vector Infrared Sensor Replacement

Geschrieben von: Shay Takei
  • Kommentare: 0
Anki Vector Infrared Sensor Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

2 - 3 Minuten

Einleitung

This guide will illustrate the process to remove or replace the infrared sensor of the Anki Vector. The only bit of equipment you will need to complete this guide is a screwdriver.

This guide should be helpful if your Anki Vector is having trouble distance tracking or mapping its environment.

  1. nefLmy5ODJTZImSe

    • Raise Vector's arms above his head.

  2. GyMLF2G1UqPxpPdk
    GyMLF2G1UqPxpPdk
    yyyxRbHegcruhYcQ

    • Using your thumb and index finger, grab the lower portion of the belt near the large wheel and pull the belt off.

    • Repeat on the other side.

  3. DaxXuV2xGtXUYYLl
    DaxXuV2xGtXUYYLl
    u6JKDKGfQVQ4F2Ba

    • Pull each front wheel cover off.

    • This will require a good amount of force due to the three clips holding it in place.

  4. LqTWgU2Tgk2Q53XA
    LqTWgU2Tgk2Q53XA
    kTKsKjcMxATN1vfk

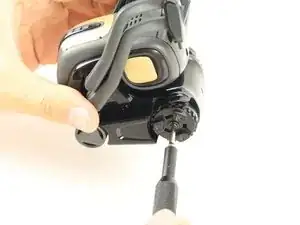

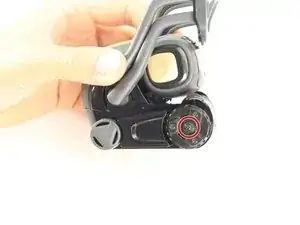

    • Unscrew the wheel with the Phillips #00 screwdriver and gently remove it.

  5. QqgL1INkJFWPchfO

    • Unscrew the two body screws beneath the wheel using the same screwdriver.

  6. 1wVcYBrXfUOAxjNF
    1wVcYBrXfUOAxjNF
    XgjxWBFj1pDKMNKj

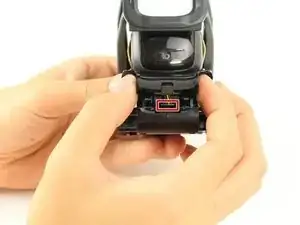

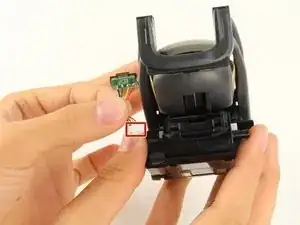

    • Gently pull off the front panel to unplug the Infrared sensor.

    • Be careful when pulling off the front panel. The Sensor is connected by wires to both the panel and the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
