Anschließen eines XLR Kabels am Shure SM58

Geschrieben von: nat coll
  • Kommentare: 21
Anschließen eines XLR Kabels am Shure SM58

Schwierigkeitsgrad

Sehr einfach

Schritte

3

Zeitaufwand

30 Sekunden - 1 Minute

Einleitung

Das XLR Kabel ist für die ausbalancierte Übertragung von Audiosignalen notwendig. Es wird unten am Mikrofon mit dem XLR Mikrofon Stecker verbunden

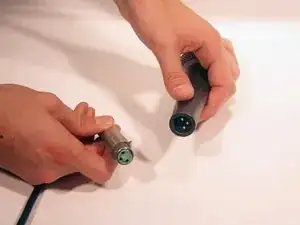

  1. BKFBGqpUKO3t4XXA

    • Überprüfe, dass du ein passendes 3 Pin XLR Kabel hast.

    • Nehmen sie das Kabelende mit dem weiblichen Anschluss (Stecker mit 3 Löchern).

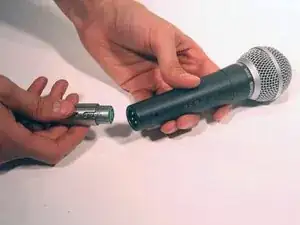

  2. VHFAq1ouY3IgUki6

    • Richten sie die Pins im Anschluss des Mikrofons auf die Löcher im Kabelende aus.

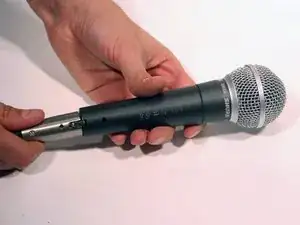

  3. XKMUidqV2yuTHDS2

    • Wenn die Pins richtig ausgerichtet sind stecke das Kabel in das untere Mikrofonende. Du solltest dabei einen Klick hören.

Abschluss

Um das Kabel vom Mikrofon abzustecken, arbeite die Schritte in umgekehrter Reihenfolge ab.
