Apex TM772 Touchscreen Replacement

Geschrieben von: Doran Van Bemmel
  • Kommentare: 0
Apex TM772 Touchscreen Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

Instructions on how to replace a damaged touchscreen display.

  1. FKBXeaU2JPyBcjNo

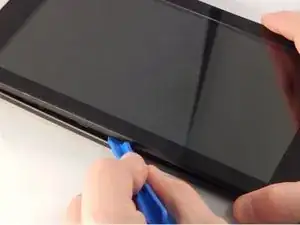

    • Begin by inserting the plastic opening tool into the seam between the back and front of the case and carefully pry the back from the front.

  2. dDiVUvEoMgODdLF3

    • Moving along the seam continue to pry the case apart.

    • The internal speaker is adhered to the inside of the back casing. There are two wires that connect the speaker to the circuit board and may be damaged if care is not taken. Once open the speaker may be removed from the back casing by removing the tape holding the speaker with either tweezers or your fingers.

  3. JLKDOld6FhJW2AOW

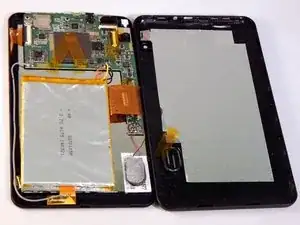

    • The back panel should now be disconnected from the device. This provides access to the components of the device for repairing and replacing parts of the tablet.

  4. k3nei5vI2UtFekAP
    k3nei5vI2UtFekAP
    VG52qHYRAJDaPRnN

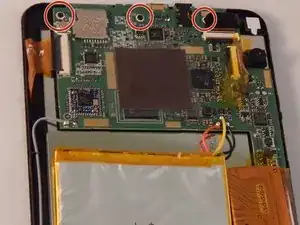

    • Remove the three screws that are located at the top of the circuit board with the screwdriver. (2.4 mm head, 3.9 mm in length)

  5. udXZwRPGAmwKTwmZ
    udXZwRPGAmwKTwmZ
    kXuScn6i3B1Uscsk

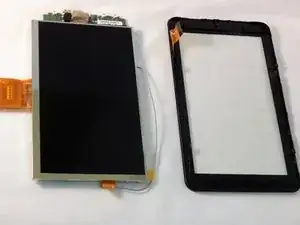

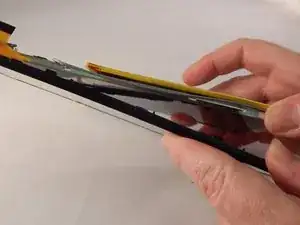

    • Remove the touchscreen.

    • Replace the touchscreen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
