Apple AirPort Extreme Model A1034 Internet Card Replacement

Geschrieben von: Michael Garcia
  • Kommentare: 1
Apple AirPort Extreme Model A1034 Internet Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

  1. MP3bLTWGyqeyHKaV

    • Remove the three 14.3mm T7 Torx screws from the bottom of AirPort.

  2. CcqUKHsY6CAQByMl

    • Remove the 5.1mm Phillips screw from the bottom of the AirPort. This screw is located under the identification sticker. You will have to remove the sticker or make a hole to remove it.

  3. P6T5COMpqXRHOpeq
    P6T5COMpqXRHOpeq
    vmZMCGYYCSSWgfAw

    • Lift the bottom and top casing straight apart and then lift metal casing straight up from the bottom plastic casing.

  4. wZbP5hHQWqZInTUQ

    • Unplug the black connector on the top of the metal casing by gently pulling horizontally.

  5. ZLbHHyJ5XGvDANaw

    • Remove four 1mm phillips screws from the bottom.

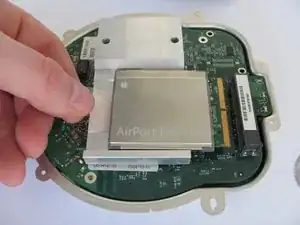

  6. yakc2Y4PAYXeAY5A

    • Separate the top and bottom of the metal casing. You will now expose the motherboard and AirPort card.

    • To remove the AirPort card, gently pull the plastic tab horizontally.

Abschluss

To reassemble your device, follow these instructions in reverse order.
