Apple IIc Power Converter Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

If you are having trouble with powering your computer, it is possible that your power converter needs to be replaced. If that is the case, this guide will show you how to locate and carefully remove the power converter step by step.

  1. jMPpumGVtEeYUdii
    jMPpumGVtEeYUdii
    fbhG6bYPrCVoABPD

    • Remove the six 19 mm long screws with a #2 Phillips head screwdriver.

  2. ojUoJKcfdTIjppMN
    ojUoJKcfdTIjppMN
    kqUDuZNkwHOKxdsW

    • Release the catch by pushing it in using a plastic opening tool.

    • The catch is off-center, but in line with the middle of the speaker underneath.

  3. REWjmRkgwdjbbAPk
    REWjmRkgwdjbbAPk
    SBPPd6rMkOyvmdTv

    • Slide the case toward the ports on the back, then grip under the catch and pull up while moving toward the ports to remove.

    This step is wrong. The ports cover should be removed with a plastic disassembly tool first. Failure to do this will lead to a set of broken plastic hooks.

    cybernesto -

  4. CZqfLpwObewXSGpX
    CZqfLpwObewXSGpX
    LYtjTVZ5YN46GQdj

    • Lift the handle straight up to remove.

  5. F4YvTcEYl3FF1oIC

    • Remove the two 7.7mm length Phillips screws that secure the power converter.

  6. HgpIpJebTZExSIKH
    HgpIpJebTZExSIKH
    EKlNK3rEqTHMHIYT

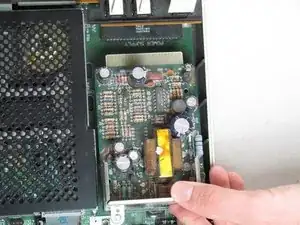

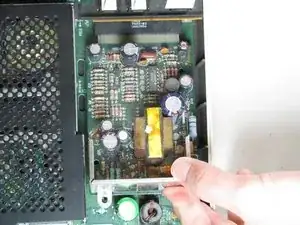

    • Grab the back of the power supply and pull out while lifting up so that it will clear the other components.

    • The power supply can be difficult to remove so be careful not to bend or damage any nearby components while you pull out the power supply.

Abschluss

To reassemble your device, follow these instructions in reverse order.
