Einleitung
Ersatzteile
-
-

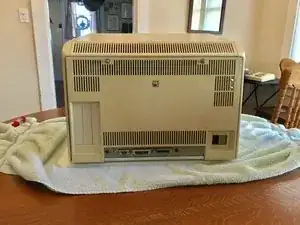

Follow the Apple Lisa Disassembly Guide to remove the Lisa's real panel.
-

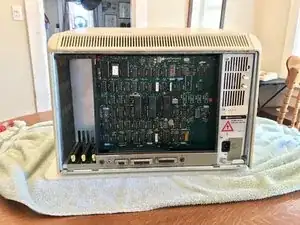

Remove the Lisa's Card Cage.
-
-
-
Locate Lisa's expansion slots.
-
Locate expansion slot 3.
-
Pull the metal rod out from slot 3 and rotate 90º clockwise.
-
Slide the SCSI Card into expansion slot 3.
-
Rotate the metal rod, as described before, 90º counter-clockwise and push in to secure the Lisa DAC.
-
-
-
The SCSI card includes 1 internal connector and 1 external connector.
-
The internal connector is used for connecting a hard disk.
-
If you intend to connect a hard disk then connect it now.
-
Pin 1 is marked.
-

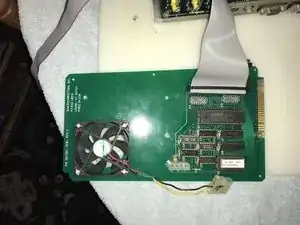

The SCSI Card can also be cut to accommodate a Card Cage fan upon order request.
-
-
-
The SCSI Card requires MacWorks Plus II.
-
To use devices connected to the SCSI card please refer to the device's manual for proper device installation.
-
This SCSI card was installed to use an Apple External SCSI CD-ROM Drive.
-
To reassemble your device, follow these instructions in reverse order.
