Apple PowerBook G3 400 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to replace the keyboard in a simple step by step process.

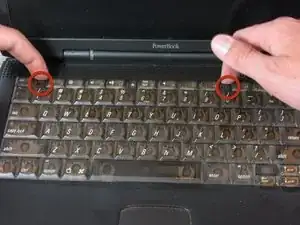

  1. dnVdtC12Z4SymOnd

    • Pull the keyboard tabs toward you while lifting up on the keyboard until it releases from it's hold.

    • To lift the keyboard out pull it up and away from you. Then place the keyboard on the track pad.

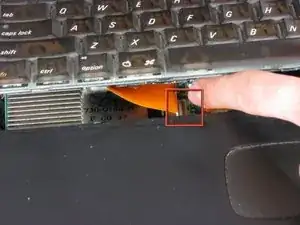

  2. QkhelGLLbaJlyGSh

    • Pull the keyboard ribbon vertically from the logic board to release connection.

    • The connector may be tight and difficult to remove. If stuck try rocking the connector back and forth while pulling up until it releases. This same process can be used for many of the connectors on this device.

    • Remove battery and CD/DVD drives before proceeding any further.

    Don't remove the connector. Just flip the keyboard over and lay it on the hand rest.

    Tobias Welti -

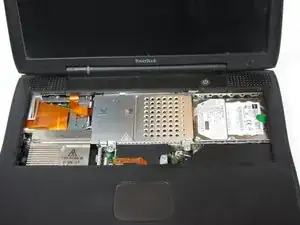

  3. WUSFYkf3PLxY2jTc

    • Your computer should look approximately like this.

Abschluss

To reassemble your device, follow these instructions in reverse order.
