Einleitung

This repair will need:

A T8 Torx Screwdriver.

  1. MFfyaS6hPEuq1hlT
    • With the Generally Disassembly completed, you may proceed to floppy drive installation.

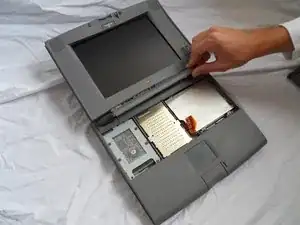

  2. 1CpLnGcM1THd1U1X
    • Remove the plastic panel at the bottom of the display.

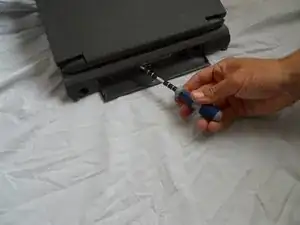

  3. Rm2C2Pi4hL4yffF6
    • Reverse the computer to access the peripheral panel in the back.

    • Remove the two T8 Torx screws on either side of the bar code panel.

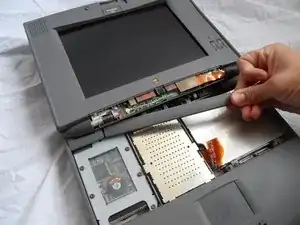

  4. Erx1uQ5mEqyUmbsh
    • Reverse the computer to have the monitor and mousepad facing you.

    • Remove the plastic panel underneath the display.

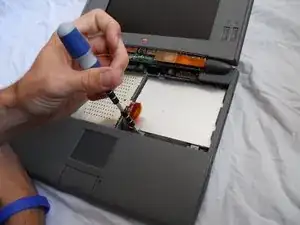

  5. fD6O5ujJLVs2I2iQ
    • Remove the three T8 Torx screws securing the floppy drive to the frame.

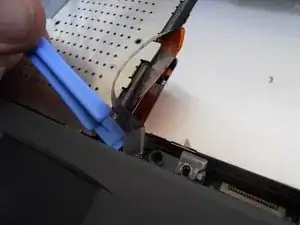

  6. hQ1dYBDTGAESa4Uk
    • Using a spudger, lift the plastic tabs on the floppy drive securing the ribbon cable to the ribbon port.

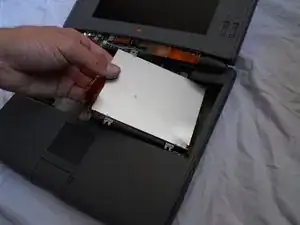

  7. uEqPNZYktRs6wGEs
    • Lift the defective floppy drive from the body of the computer.

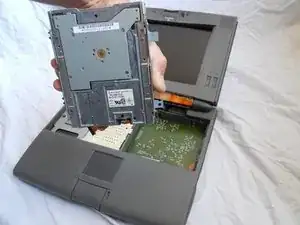

  8. tRwZNVYjYG4HsFK1
    • Replace the defective drive with a new drive.

    • Follow these instructions in reverse order to reassemble the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
