Apple Powerbook 5300 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

Removal of the keyboard requires little technical skill, and only the removal of three screws.

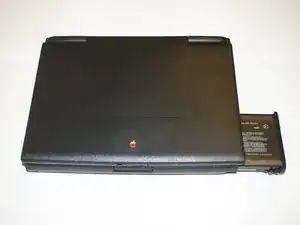

  1. 2lDm2jMLGGlLaiP3

    • Position the Powerbook towards you with the monitor closed.

    • Press the battery removal latch located on the right side of the front panel.

    • Gently slide the battery out.

    • The keyboard, front pane, and hard drive are connected to the laptop's logic board via a ribbon cable. Lift up slowly on each component with one hand and disconnect the ribbons from their ports on the logic board.

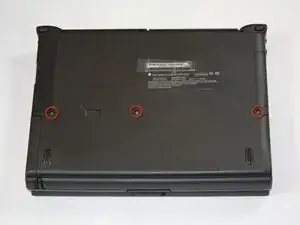

  2. LUFZRNKiuZBqi6FL

    • Turn the laptop over and remove the three T8 torx screws from the bottom panel.

  3. hJg6vB3nHSsnLa2n

    • Turn the laptop back over and open the monitor.

    • With the monitor facing towards you, gently pull up on the keyboard panel from the bottom.

    • With the keyboard turned over as pictured, carefully remove its ribbon cable from the connection port on the logic board. Use a spudger to lift the white plastic retainer about 1/16" to release the cable.

    Use a spudger under one of the keys on the bottom row to very gently lift until you can use your hand to lift the keyboard.

    Mike Polek -

Abschluss

To reassemble your device, follow these instructions in reverse order.
