Apple Studio Display M7649 Logic Board Replacement

Lay the display facing down with the stand away from you.

Remove the three size 2.0 hex screws on the swing arm and remove the swing arm as well as the plastic shield under it.

Remove the size 2.5 hex screws from each corner that connects the panels to the display and remove them.

Rotate the display so the legs of the display are now facing you

Grip the top of the clear panel and lift it upwards, and pull the ADC cable through the hole.

Remove the grey back panel by lifting the bottom and pulling the ADC cable through the hole.

The next layer will be a shiny metal panel, which might have some stickers. Make sure to remove these stickers.

Now locate and remove the lone Phillips screw holding the EMI shield to the display

Now that the screw has been removed, slide the panel towards your body and lift it out.

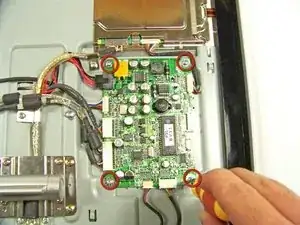

Remove the four screws holding the logic board to the display

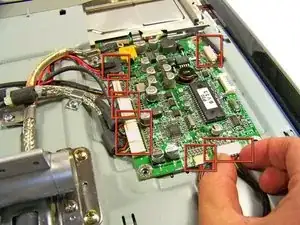

Remove these seven cables connected to the logic board.

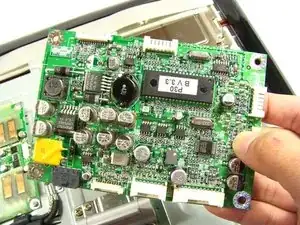

Remove and replace the logic board.
