Einleitung
Replacing the panels of the apple display.
Werkzeuge
-
-
Lay the display facing down with the stand away from you.
-

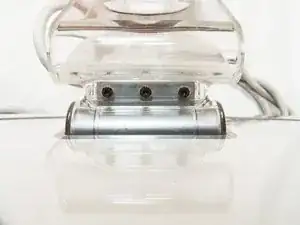

Remove the three size 2.0 hex screws on the swing arm and remove the swing arm as well as the plastic shield under it.
-
-
-

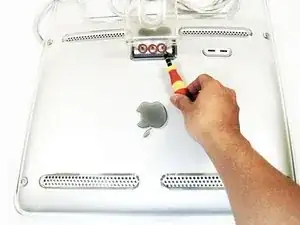

Remove the size 2.5 hex screws from each corner that connects the panels to the display and remove them.
-
-
-
Rotate the display so the legs of the display are now facing you
-
Grip the top of the clear panel and lift it upwards, and pull the ADC cable through the hole.
-
-
-

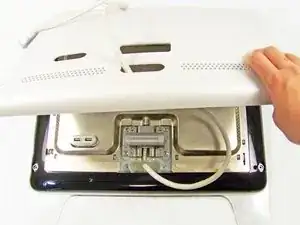

Remove the grey back panel by lifting the bottom and pulling the ADC cable through the hole.
-
