Apple TV 1st Generation Power Indicator LED Replacement

Geschrieben von: John Matheson
  • Kommentare: 1
Apple TV 1st Generation Power Indicator LED Replacement

Schwierigkeitsgrad

Very difficult

Schritte

6

Zeitaufwand

1 Stunde

Einleitung

This repair requires either an extremely fine tipped soldering iron and extremely steady hands, or an SMD rework station.

  1. ygDPoloumoiMkCVg

    • Remove the T8 Torx screw securing the metal shield to the case.

    • To remove the T8 screw, you must insert the screwdriver through the access hole in the metal shield. The access hole is located near the PRAM battery.

  2. q6pMSfVKTgFYiQVD
    q6pMSfVKTgFYiQVD
    fZICh6pa3pCbqUNx

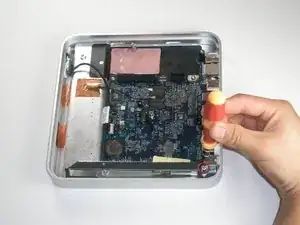

    • Remove the T20 screw located near the digital audio port.

    • Lift and remove the metal shield from the upper case of the Apple TV.

  3. INcFEdGkMoATWlDy

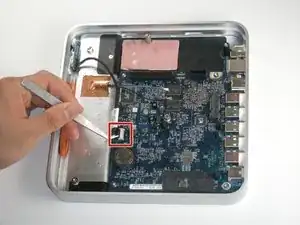

    • Use a pair of tweezers to pull the IR cable straight away from its socket on the logic board.

    • Make sure to pull the connector parallel to the face of the logic board. Do not pull the connector straight up.

  4. FW2JVoPIQEG3sgeR

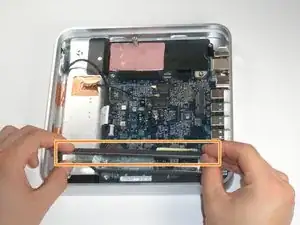

    • Lift the left edge of the logic board (nearest the PRAM battery) upwards and slide it out of the case, away from the ports.

    • Be careful not to damage the ports when sliding the logic board out of case.

    • The logic board remains.

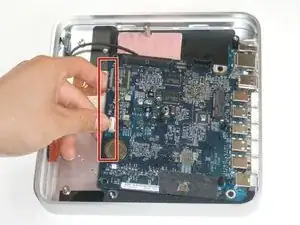

    • Carefully peel back the two copper sticky grounding strips near the LED module.

    • Swing the outer aluminium case up and carefully slide it towards the connector side of the logic board until it comes off. Remove the two Phillips #0 screws securing the LED module.

    • Carefully unplug the module from the logic board and remove it from the case.

    • There are two miniature SMD LEDs. One is clear and one is yellow. Unsolder the YELLOW colored LED. Replace with another high intensity SMD LED. The anode (+) is marked on the circuit board and is located away from the infrared receiver side.

    • SMD LEDs are difficult to find as a spare part. You can carefully ground down a normal sized LED with a Dremil until it is the correct fit.

    • Reassemble the Apple TV following the reverse of these to steps used to disassemble it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
