Apple TV 2nd Generation Logic Board Replacement

Geschrieben von: Nicholas Ouimet
  • Kommentare: 1
Apple TV 2nd Generation Logic Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

Removing the logic board is a very simple procedure. Hopefully you never have to do this to your Apple TV. Just a note... There is nothing wrong with my Apple TV. I made this guide for those that may need to use it one day. My Apple TV is still running well

  1. FTFtPJLVeTQpscJZ
    FTFtPJLVeTQpscJZ
    UOYOePpKMsYtDV6g

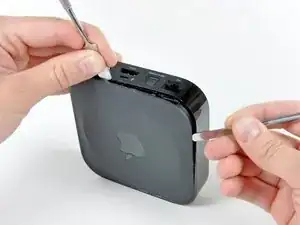

    • Use a spudger to pry the bottom cover off the Apple TV.

    • It may be necessary to use two spudgers (one to hold it open while you pry with the other one)

    You can also use opening picks ;)

    Jace Holmes -

  2. eHKVSVVAaAucLrkT

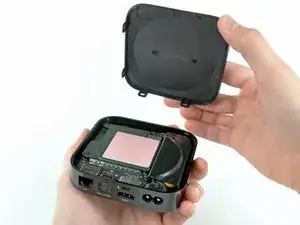

    • Carefully remove the bottom cover from the unit

  3. 26wbku2ZDaqBAJQG
    26wbku2ZDaqBAJQG
    plvQpx3vRY2AlGFE

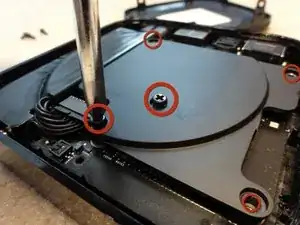

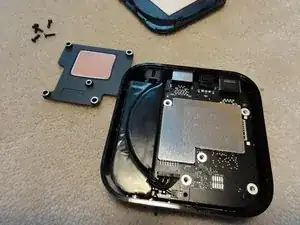

    • Remove the pink thermal pad. (I already removed mine)

    • Remove the five philips #1 screws securing the heatsink and logic board to the upper casing.

  4. ZghIjYE3xLVBVg11
    ZghIjYE3xLVBVg11
    FUXrMAO5L5TKpCXa

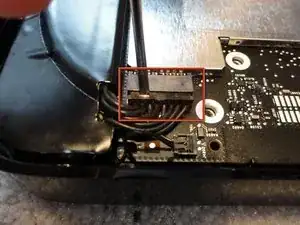

    • Using a screwdriver (flathead) or a spudger, pull the power cable out of the logic board

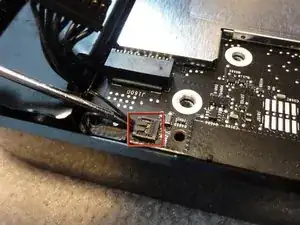

    • Now with a spudger or flathead screw driver, CAREFULLY remove the LED connector. Do this very carefully as this connector is extreme fragile, and easily damaged.

  5. 1YYZhoIyqVSoyW3N
    1YYZhoIyqVSoyW3N
    TeVupnHb6rlLqSYU
    BRtAM1IME5g363MO

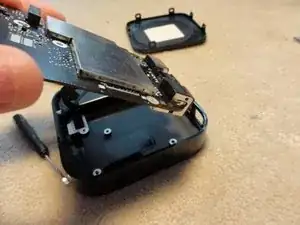

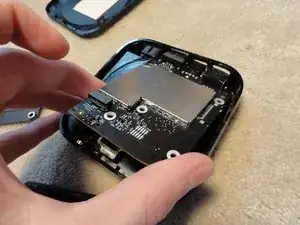

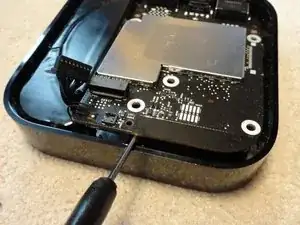

    • Use a flathead screwdriver or spudger to tilit the logic board to an angle so you can grab it with your hands

    • Holding the logic board by it edges, lift it up slightly.

    • And remove

    • Thats all. The logic board has been removed. Just follow the steps (Step 1-5 in reverse to install the board)

  6. tdKXuXffoTxkuNGX
    tdKXuXffoTxkuNGX
    ODbXPeEmk6KC6Zpp
    fs3M6eGCBpiZEVIK

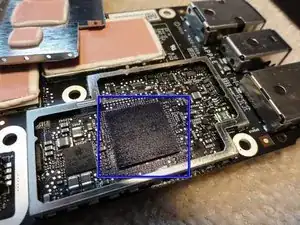

    • The chip with the grease on is the Apple A4 chip. The thermal pad took the silkscreen off, so its hard to read.

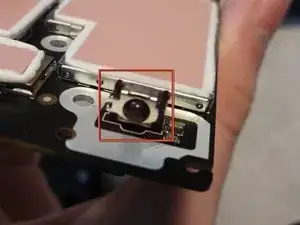

    • The The black ball surrounded by meta is the IR Remote sensor.

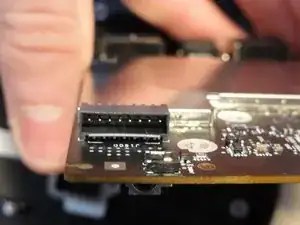

    • In the third picture, the power connector and LED status connector are shown.

  7. lSlLGKLEQ1FsR26d
    lSlLGKLEQ1FsR26d
    PvMTDpkNOT4fZuad

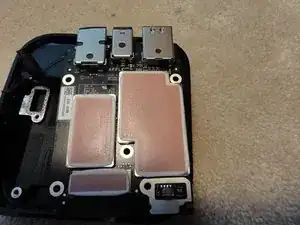

    • HDMI Port

    • Micro USB Port (used for diagnostics, and service)

    • Digital TOS Link out (Optical Out)

    • Gigabit Ethernet

    • The second picture shows the thermal pads (pinkish white edge stuff) this keeps the components of the logic board cool and happy.

Abschluss

To reassemble your device, follow these instructions in reverse order.
