Apple TV 3rd Generation Logic Board Replacement

Geschrieben von: Vincent Monteil
  • Kommentare: 5
Apple TV 3rd Generation Logic Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. IMZUMtDPSY64p23Y

    • As the device base is firmly clipped, insert two metal spudgers to gently release the first clips.

    where so i find a new base to replace it with

    sharpeEZz -

  2. kE1JcbNLWdbvAafS

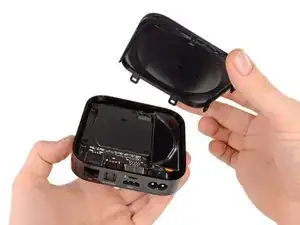

    • Continue releasing the last plastic clips with your hands taking care not to break any of the plastic elements attached to the base.

  3. 3nioPNYkE66fxZwZ

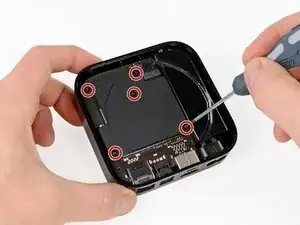

    • Use a philips screwdriver to remove the 5 screws securing the metal heat sink.

  4. NmuGhwGRKNOTegE6
    NmuGhwGRKNOTegE6
    PDMTacPZ1PjWdSrf

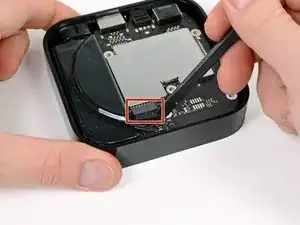

    • Disconnect the power supply connector from the logic board with a spudger.

Abschluss

To reassemble your device, follow these instructions in reverse order.
