Apple TV 3rd Generation Status LED Replacement

Geschrieben von: Vincent Monteil
  • Kommentare: 2
Apple TV 3rd Generation Status LED Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. IMZUMtDPSY64p23Y

    • As the device base is firmly clipped, insert two metal spudgers to gently release the first clips.

    where so i find a new base to replace it with

    sharpeEZz -

  2. kE1JcbNLWdbvAafS

    • Continue releasing the last plastic clips with your hands taking care not to break any of the plastic elements attached to the base.

  3. 3nioPNYkE66fxZwZ

    • Use a philips screwdriver to remove the 5 screws securing the metal heat sink.

  4. NmuGhwGRKNOTegE6
    NmuGhwGRKNOTegE6
    PDMTacPZ1PjWdSrf

    • Disconnect the power supply connector from the logic board with a spudger.

  5. dYSHrKvLBcNdcEC4
    dYSHrKvLBcNdcEC4
    UXrEToSBQyUjkN1B

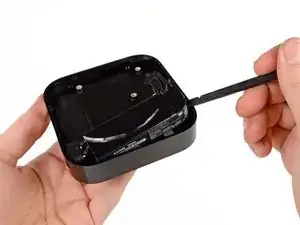

    • Before you remove completely the power supply, unscrew the T5 screws on each side of the socket.

    • You may now be able to remove the power supply with a spudger.

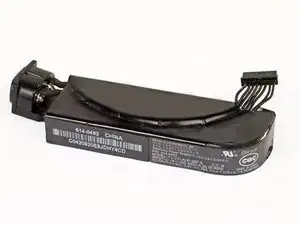

    • The rating of the power supply is 3.4V at 1.75A, which is identical to the 2nd Gen Apple TV's 5.95 watts.

  6. dviSmIsiOBxgxoPF
    dviSmIsiOBxgxoPF
    ETsKsuQ4TPhj24kP

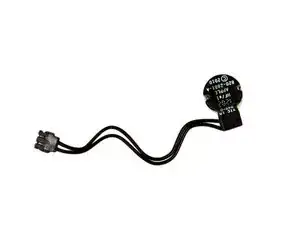

    • The last remaining part in the Apple TV is the status LED. You can remove this part with your plastic spudger.

Abschluss

To reassemble your device, follow these instructions in reverse order.
