Apple TV 4K Remote Logic Board Replacement

Geschrieben von: Keenan Barber
  • Kommentare: 1
Apple TV 4K Remote Logic Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will show you how to properly get into your Apple TV 4K's remote and get access to the logic board for replacement.

  1. iGFfYPUP1ZM6GJjk

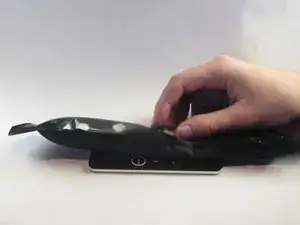

    • Heat iOpener according to manufacturer's instructions.

    • Place over the face of the remote to soften the adhesive under the glass.

  2. aBFXMQ66IIEpqDdr
    aBFXMQ66IIEpqDdr
    G4ttpsWJPEcBatDi

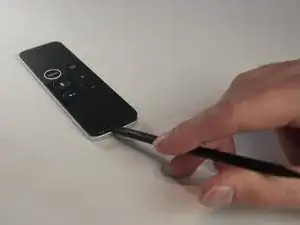

    • Using a spudger, gently lift the face of the remote. Starting from the bottom and working your way to the top.

  3. QEhNXCqpRSJpfKqO

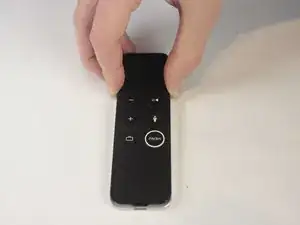

    • Push front face forward to disengage plastic clips at the top of the remote.

  4. lHDdOmnquTkYHVcW
    lHDdOmnquTkYHVcW
    Wxsiw4lTmSkUL56E

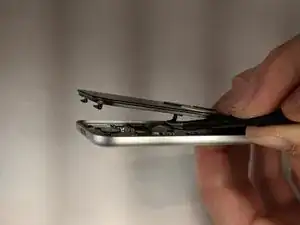

    • Unlatch the connector that binds the touch screen and logic board.

    • Afterwards, use tweezers to detach the connector that binds the touch screen to the logic board.

  5. bcI1TVGWovAs1WQ2

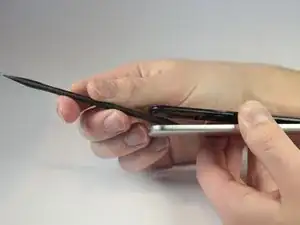

    • Lift the face from the body of the remote.

  6. DQSjUYI3HlVvGQaa
    DQSjUYI3HlVvGQaa
    lGLiwWPOZyX3Z6aB

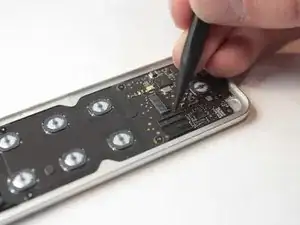

    • Lift the latch holding back the connector to the battery.

    • Use tweezers to disconnect the battery connector.

  7. JODIZJGXvJr1ojlQ

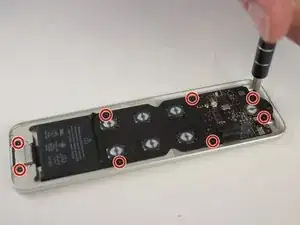

    • Remove the following screws using a T3 Torx screwdriver:

    • Eight 2mm screws

  8. gRZ3FXEtFhUbwKpF

    • Using a plastic spudger, gently remove the logic board from the case of the remote.

Abschluss

To reassemble your device, follow these instructions in reverse order.
