Apple TV 4th Generation Heatsink/EMI Shield Replacement

Geschrieben von: Lisa Kelley
  • Kommentare: 0
Apple TV 4th Generation Heatsink/EMI Shield Replacement

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to remove the heatsink/EMI shield of the Apple TV so it may be replaced.

  1. GHCEKqn1sCAZxbBj
    GHCEKqn1sCAZxbBj
    MmJEjW4uLTAtB2OY
    SKXJdtrAku6vhdUl

    • Unplug all cables from the Apple TV before disassembly and flip the device over.

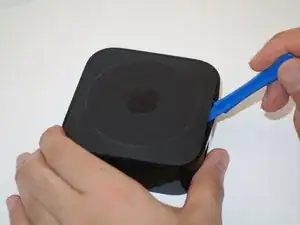

    • Using the widest plastic opening tool, force its sharp end into the seam between the Apple TV's bottom plate and its outer casing. Starting on the side with the ports, insert the tool so its tip is angled upward when leverage is applied.

    • Pry the bottom plate away from the case, starting with the edge closest to the bottom of the apple. Work your way around the plate until all clips are disconnected.

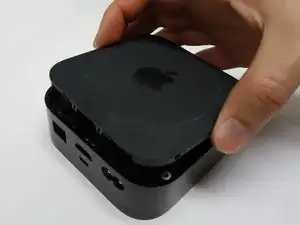

    • With the plastic clips free, lift the bottom plate.

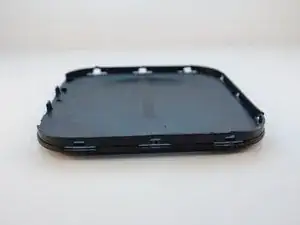

    • The bottom plate is held in place by plastic clips that correspond to indentations on the bottom plate. These indentations break easily, as evidenced by the third photo (breakage will not prevent the plate from going back on). To avoid breakage, apply force at the location of these clips, starting from the middle.

  2. QsSXnnWhftMaU3wh
    QsSXnnWhftMaU3wh
    gsp2YlUkwlPLZZZs
    6B6BKmcJmShsnNrP

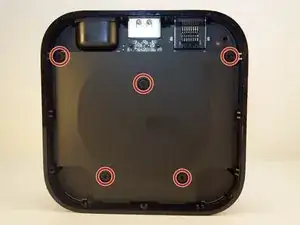

    • Remove the five (5) 7mm T7 Torx screws.

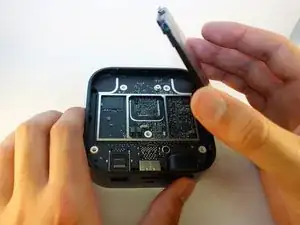

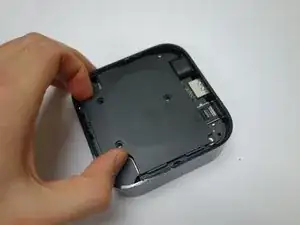

    • Pull upward on the edges of the shield.

    • Avoid disturbing the square of gray thermal paste centered on the opposite side of the heatsink/EMI shield during removal.

Abschluss

To reassemble your device, follow these instructions in reverse order.
