Apple TV 4th Generation Power Supply/Heatsink Replacement

Geschrieben von: Lisa Kelley
  • Kommentare: 5
Apple TV 4th Generation Power Supply/Heatsink Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

This guide will show you how to remove the power supply/heatsink of the Apple TV so it may be replaced.

  1. 6EjZ243bV6d2DtD1
    6EjZ243bV6d2DtD1
    6mJIwFZL4ALRhUoA

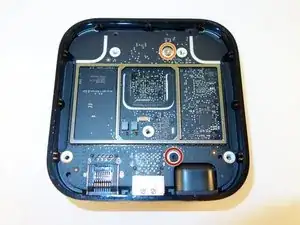

    • Remove the 4mm T7 Torx screw.

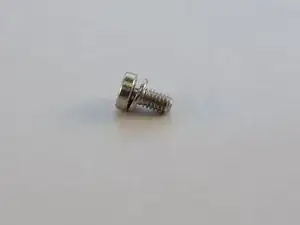

    • Remove the 5mm T7 Torx screw and its accompanying washer.

    • The silver screw is accompanied by a washer that is easily lost.

  2. GgVAs5pICvDg4VvW
    GgVAs5pICvDg4VvW
    pc36p3UCxFL6c6FU

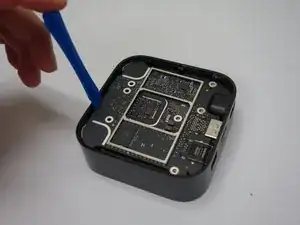

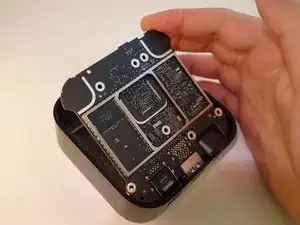

    • Use the plastic opening tool to tip the board upward.

    • Avoid disturbing the square of gray thermal paste centered on top of the power supply/heatsink during removal.

  3. SNqQVyM2ZNwcxhgi

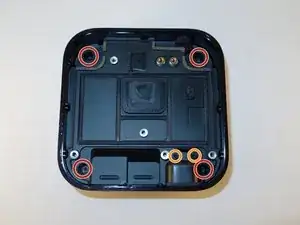

    • Remove the four (4) 4mm T7 Torx screws anchoring the power supply to the case.

    • Remove the two (2) 4mm T6 Torx screws holding the power supply plug.

    • Avoid disturbing the square of gray thermal paste centered on top of the power supply/heatsink.

  4. rrL1DYbpUR1kCMYL
    rrL1DYbpUR1kCMYL
    1DhMZPfZxheo13gf

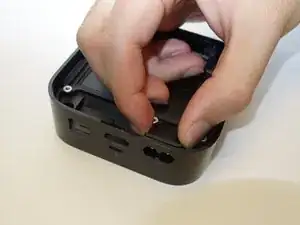

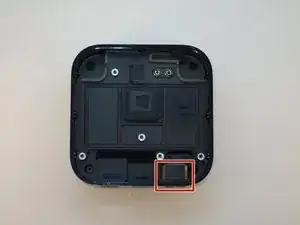

    • Pull the power port away from the side of the casing.

  5. tHOFQjdnsf12YI31
    tHOFQjdnsf12YI31
    XpLtskeMcEsmduYD

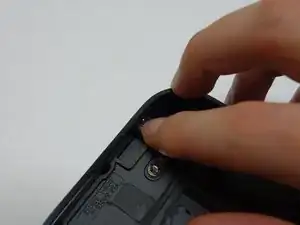

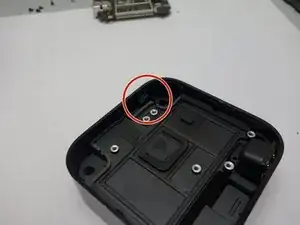

    • Dislodge the rubber power indicator light cowling's adhesive with a fingernail.

  6. U6cScKLG2OPDgDEn
    U6cScKLG2OPDgDEn
    oJXd4BsSdIgdbucE

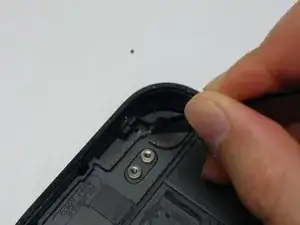

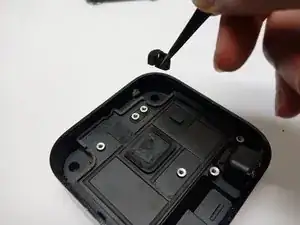

    • Extract the rubber power indicator light cowling with tweezers by first pulling the cowling directly away from the case wall, until it clears the clear plastic nub of the diffuser, and then upwards.

    • The adhesive will still be sticky for reassembly.

  7. 2gPJyjS4P2cBhYYU
    2gPJyjS4P2cBhYYU
    MUnRkXi2CE1JPLoo
    1DjfkNPVC55YyUVt

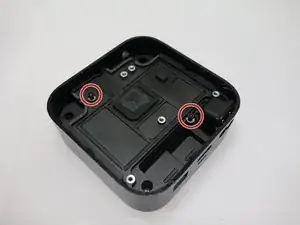

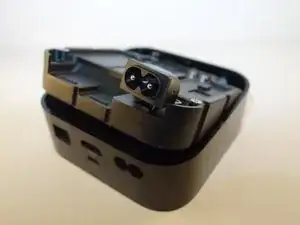

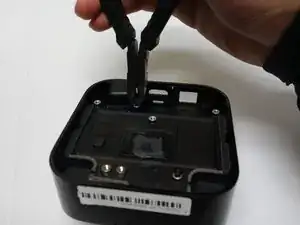

    • Insert two of your 7mm T7 Torx screws into the indicated posts on the power supply/heatsink.

    • Using screw removal pliers, pull up on the screws, alternating between them, until the unit is free from the case.

    • The fit between the case and the power supply/heatsink is very tight. However, the power supply should fall freely into place on reassembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Lisa Kelley

Mitglied seit: 26/10/17

371 Reputation

5 Kommentare

Where could one find such a power supply for the 4th generation Apple TV. Sadly this one went out without even a years worth of light use.

Lewis Gast -

Lewis,

If its under a year just have apple replace it. I just replaced the powersupply with one I aquired on ebay. It didn’t power on when I was done with the fix. I didn’t go all inspector gadget on it, but with the plethora of heatsinks on this thing I bet some circuitry fried due to a heat issue.

gregkutzbach -

Found a replacement power supply on eBay- started working great. Hope it stays that way.

RRS -

This instructions were perfect. Found power supply, replaced in about 15mins. Apple TV powers up again. Saved me from buying another.

THANK YOU

New Power Supply Board PA-1110-7A1 for Apple TV 4th Generation A1625by WFLNHBLearn more: https://www.amazon.com/dp/B07R4LBZ16/ref...

joseediaz1978 -

What value fuse is used in Apple tv 4th gen power supply ?

charifctm -
