Apple Wireless Keyboard Logic Board Replacement

Geschrieben von: Nicola
  • Kommentare: 10
Apple Wireless Keyboard Logic Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 20 Minuten

Einleitung

You need a Metal spudger and a screwdriver

  1. FVSuZSD6nyHA14ov
    FVSuZSD6nyHA14ov
    TKwA3JoBNVkXCD3s

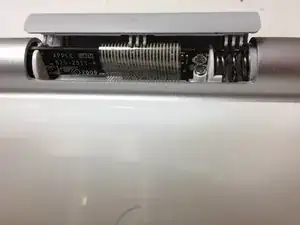

    • Insert a metal spudger to open the plastic part under the Keyboard

  2. 4j6UlvLVTJqbZJIu

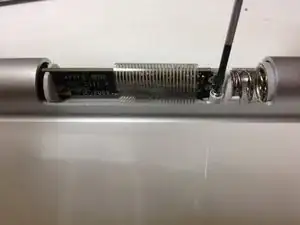

    • Remove the screw

  3. QKNkeWFpAItcpsIs
    QKNkeWFpAItcpsIs
    ZfLFBjCtxPRkpCG4
    GiFSk3LkIZ4CjARw

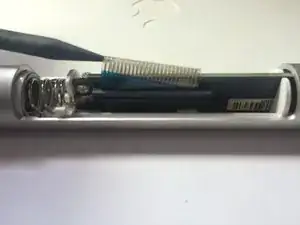

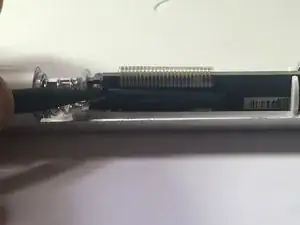

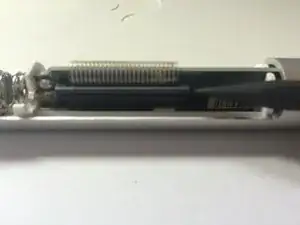

    • Pull the lock up and disconnect the connection cable

  4. hXLlaAQCgDkkSVPN

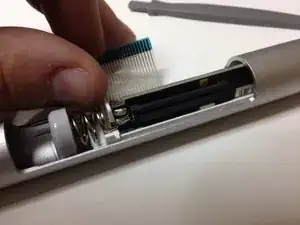

    • Keeping the connection cable, push out the logic board's placement

    On some recent version of the keyboard, there's a plastic pin under the white logic board plastic holder, keeping the whole thing in position in the aluminium tube.

    You may have to pull slightly upward while pushing the logic board out of the tube to disengage the plastic pin.

    Kuf -

  5. V3uYTXwFGGBHZDrE

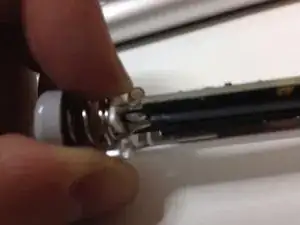

    • Unlock the latch of the logic board

  6. GMUAYGSCgdwNMFjB

    • Remove the logic board from the placement

Abschluss

To reassemble your device, follow these instructions in reverse order.
