Apple iPod Hi-Fi iPod Dock Inserts Replacement

Geschrieben von: Timothy Scheuermann
  • Kommentare: 1
Apple iPod Hi-Fi iPod Dock Inserts Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

40 Minuten

Einleitung

This guide details how to replace the dock inserts of the Apple iPod Hi-Fi speaker system.

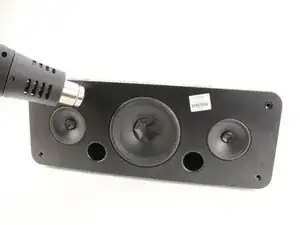

  1. xPiUZShFaV3uAwKk

    • Warm up the glue by using the hair dryer on the grille for 5-10 minutes.

    • You can skip this step if you don't have access to a hair dryer. However, if you skip this step, the next step will take longer and will be harder.

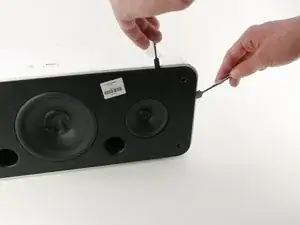

  2. 4cymR2SLelpWYgc5

    • Take one spudger and fit it under the grille.

    • Use your first spudger to pry up and make room to insert a second one.

    • Sever the glue connections between the grille and the device by moving one spudger around, cutting through the glue.

    • Use the other spudger to raise the grille, allowing you to see where you're working.

    • Since you're cutting the glue, the grille may not stick as well when reassembled.

  3. GLgIpiYOxJQHSmEd

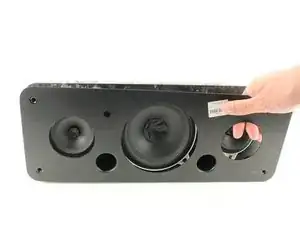

    • Pull the grille off the Apple iPod Hi-Fi with your hands.

  4. XLOZV3ofbWXCfuuH
    XLOZV3ofbWXCfuuH
    kturIy1WEGKDDIXm

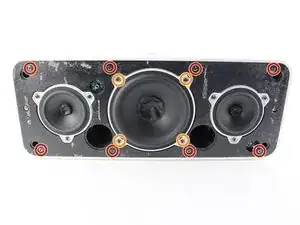

    • Remove all eight 3.3mm JIS #1 screws holding the front panel in place by placing the screwdriver in the head of the screw and rotating counterclockwise.

    • Remove the four 3.3mm JIS #1 screws holding the large speaker in place by placing the screwdriver in the head of the screw and rotating counterclockwise.

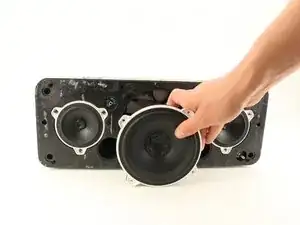

  5. pGRAdcZZQPQLHCgg
    pGRAdcZZQPQLHCgg
    XrkFNvy3gJRcW24E

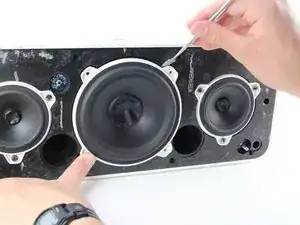

    • Pry out the large speaker with a metal spudger around the edge.

    • Remove the speaker slowly from its socket with your hands.

    • Turning the speaker on its side will make this step much easier.

    • The speaker is still attached by several connections at this point so the speaker will not be able to be removed completely at this step.

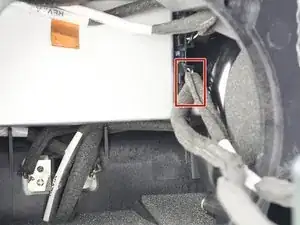

  6. wplDaHqGEv6WclAN
    wplDaHqGEv6WclAN
    jYiMqrgLYKxchKUK

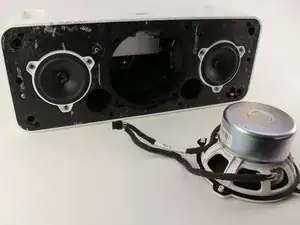

    • Press down on the tab and pull out with your hands to remove the cable connecting the large speaker from the rest of the unit.

    • Pull the large speaker completely out and set aside.

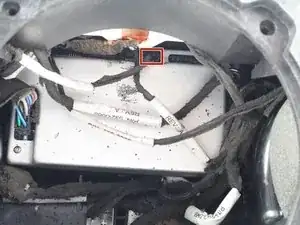

  7. JTHhqAshqPNPGZMZ

    • Remove the sensor connection by pulling it straight out with your hand.

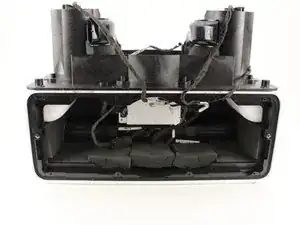

  8. wAy5thWn3ZJl3Zmd
    wAy5thWn3ZJl3Zmd
    OqojVbnlnGKJNAcv
    MYvEoW2diaCySmQQ

    • Pull the entire front assembly off by prying it up with the spudger and lifting the assembly off with your hands towards the top of the Hi-Fi.

    • There are still connections attached at this stage so the front assembly will not completely disconnect from the rest of the device .

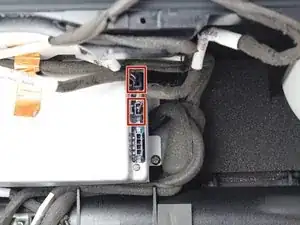

  9. PYHn3LLdJHbs2hLb
    PYHn3LLdJHbs2hLb
    X6WHybEj6hEgYyeX

    • Remove the clips for the remaining two speakers by repeating step 6.

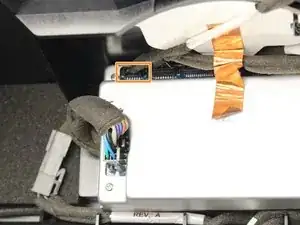

    • Remove the last connection that connects the speakers to the power box.

    • Remove the front panel completely.

    • When reassembling, the ports are labeled "right" and "left" to help you plug in the right speaker to the right port.

  10. lGUHkc4gGLPNMXuw

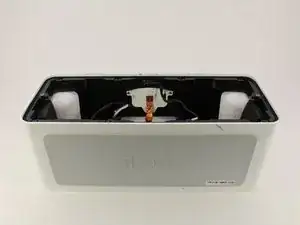

    • Place the speaker on its back with the dock facing away from you.

  11. b1rfK1K3hxnBCBEY

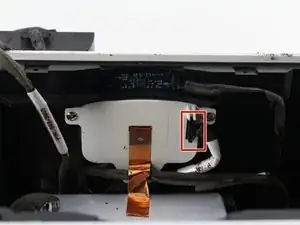

    • Remove the cable connected to the dock insert by pulling the cable straight out.

  12. bxldhsHKe6dMUDDQ
    bxldhsHKe6dMUDDQ
    FULOE3rOmShDHNj6

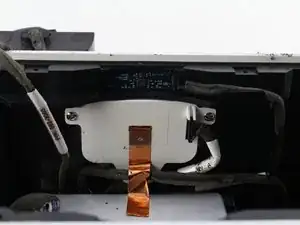

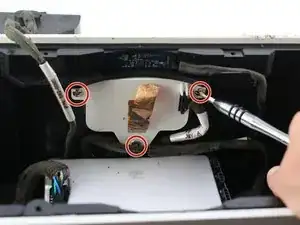

    • Remove the gold tape attaching the insert to the unit.

    • Remove the three 2mm Phillips #1 screws holding the dock inserts in by placing the screwdriver in the head of the screw and rotating counterclockwise.

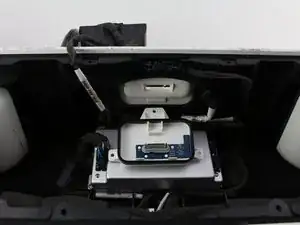

  13. jUCiCEBTHSX6AuHi

    • Remove the dock insert with your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
