You will be separating the camera module from the rest of the device. This include removing 3 pin tabs/ribbons from the circuit board. You will have to do this carefully as any damage done to the pins will be hard to repair. The rest is just unscrewing screws.
Werkzeuge
-
-

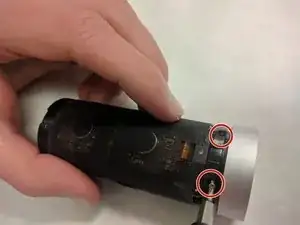

Remove two 3.55 mm screws that hold the body to the ball and socket joint using the PH000 screwhead.
-
-
-

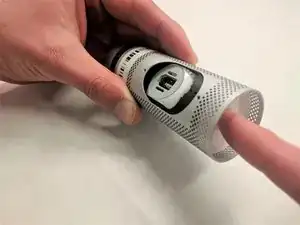

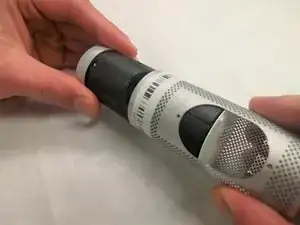

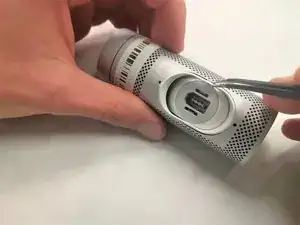

Insert the tweezers into the crevice of the ball and socket joint, and prop up the tabs to remove the white ring from the body.
-
-
-

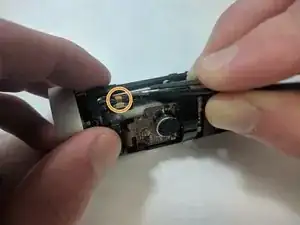

Gently pull out the ribbon cables at the base of the circuit board. The camera module and lens cap are connected to the board via two busses.
-
-
-

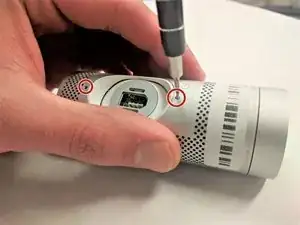

Remove the three PH000 3.55mm screws that connect the end cap that holds the privacy shutter to the rest of the camera enclosure. Once the screw are removed, you can pull them apart.
-
-
-

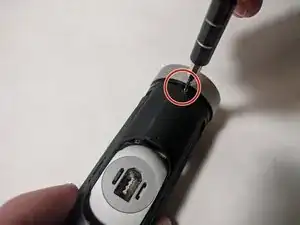

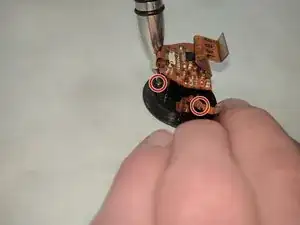

Unscrew the three PH000 3.55mm screws from the connecting plate and the camera enclosure. Pull apart when all screws are removed.
-
-
-

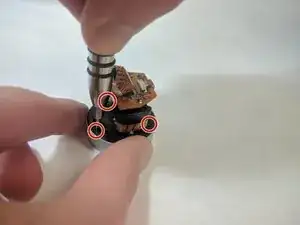

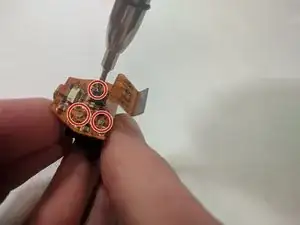

Unscrew the three PH000 3.55mm screws securing the Camera module circuit board and lens enclosure.
-
-
-

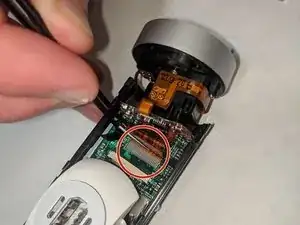

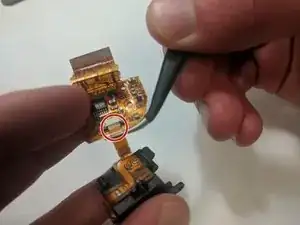

Pull the pin tab from the base of the circuit board to separate the camera module and the lens enclosure.
-
To reassemble your device, follow these instructions in reverse order.
