Aquasana F-300R 300,000 Gallon Whole House Water Filtration System 20-Inch Sediment Pre-Filter Replacement

Geschrieben von: Kathryn Hall
  • Kommentare: 0
Aquasana F-300R 300,000 Gallon Whole House Water Filtration System 20-Inch Sediment Pre-Filter Replacement

Schwierigkeitsgrad

Easy

Schritte

13

Zeitaufwand

15 - 20 Minuten

Einleitung

Use this guide to replace the 20-inch sediment pre-filter for your Aquasana F-300R 300,000-gallon whole house water filtration system.

The sediment pre-filter keeps rust, dirt, and sediment particles from entering the main filter unit.

After 2-3 months of use (when the pre-filter darkens or water flow slows), the sediment pre-filter must be replaced. When this pre-filter is not replaced in a timely manner, water pressure can drop, and sediment particles can enter and clog the main filter tank.

  1. Ae6mebLoDZ13WsAr
    Ae6mebLoDZ13WsAr
    vJrZiS3qGuWPuSKB

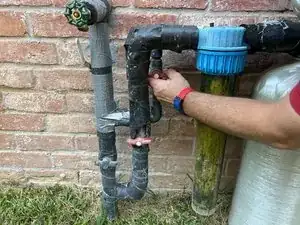

    • Turn off the water supply by turning the water valve(s) to be horizontal, or perpendicular to the water pipe.

    • You may have one or two valves depending on the installation of your system.

  2. qtKM43sKwssxsSkE

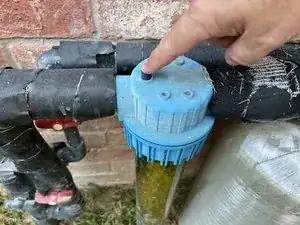

    • Press the black pressure release button on top of the filter housing.

    • Hold the button down for 5 seconds.

  3. wRHMwm21nktRGAnd
    wRHMwm21nktRGAnd
    1BxmcIqy3LDIqkB5
    xDAgIKEoKEQtHdNY

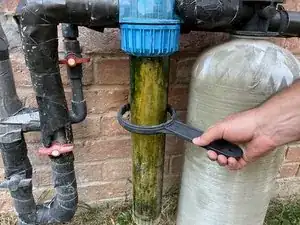

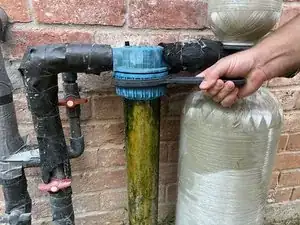

    • Unscrew the filter housing canister clockwise with a water filter housing wrench.

  4. cYHI4A2kAkVRoTFY

    • Remove the dirty pre-filter and dispose of it.

  5. TL1MDrxjsACbUKLW
    TL1MDrxjsACbUKLW
    hS4iIZZ2VSBfbY2F
    W5UeXICLPfupEjeb

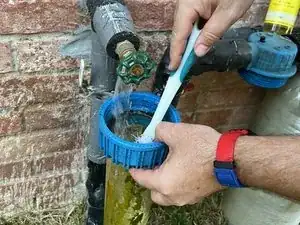

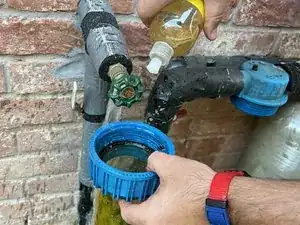

    • Wash the filter housing canister with dish soap and water.

    • You may need a long-handled cleaning brush to scrub off dirt and debris.

    • Rinse and dry the filter housing canister.

  6. lZ5lNSJqN2efOAFh

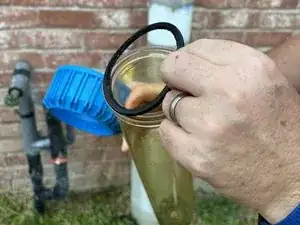

    • Remove the O-ring from the housing canister.

  7. PhIwQER1xx4rLfP6

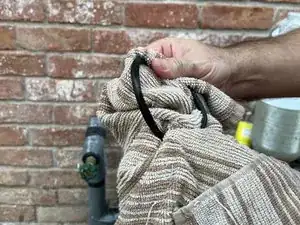

    • Clean off old grease on the O-ring with a towel.

  8. XQW43CXISChSpaV5
    XQW43CXISChSpaV5
    AVHUNIutKGkkvSch

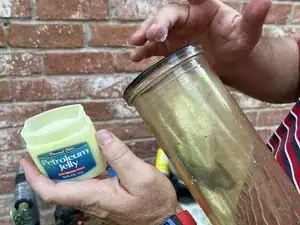

    • Replace the O-ring.

    • Apply Vaseline or lube around the seal.

  9. DoixKsRYcQlPKWeM
    DoixKsRYcQlPKWeM
    D3YrUF1xEQNo5f5k

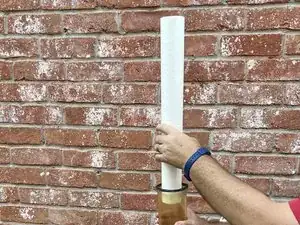

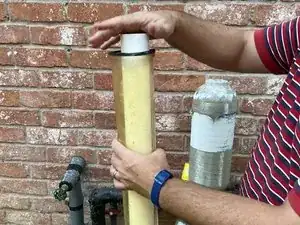

    • Place the new pre-filter in the center of the filter housing canister.

  10. CXEABLrIrjGBTB6V
    CXEABLrIrjGBTB6V
    1Wn2YNdMe1jOPjRg

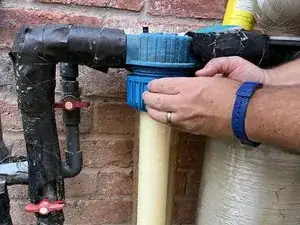

    • Screw the filter housing canister counter-clockwise with your hands.

  11. MlGSUtFKXSG6iReI

    • Tighten the filter housing canister with the filter wrench.

  12. 4ocWQMUi3xsqtLgM
    4ocWQMUi3xsqtLgM
    WDJLsFLJ1Yo5VuNe

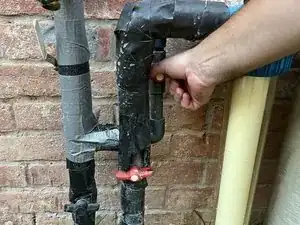

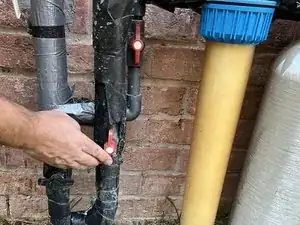

    • Turn on the water supply by turning the water valve(s) to be vertical, or parallel to the water pipe.

  13. gbkDFIoERIXXPQ1c

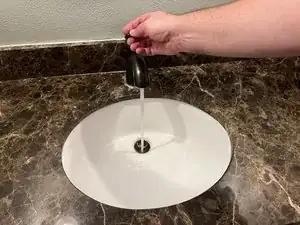

    • Run water in a sink or tub for 1-2 minutes to flush out the system and remove any air in the pipes.

Abschluss

Repeat steps every 2-3 months for best results.
