Archos 5 Screen Replacement

Geschrieben von: Ally Hummel
  • Kommentare: 0
Archos 5 Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

This guide will help you replace the screen on your Archos 5 tablet. Although this repair may take some time, don't be discouraged. You can do this yourself!

  1. p4aHEjZoJABYSmHa

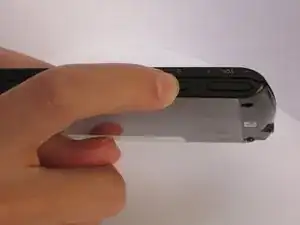

    • Please be sure that your device is powered off before attempting any repairs.

    • Please be aware that any further steps could possibly void the warranty of your Archos 5.

  2. tixExPqJCE5DTtqL
    tixExPqJCE5DTtqL
    suQFdVQrHWuJgIx5

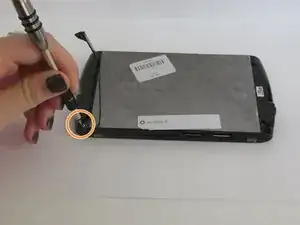

    • Use the plastic opening tool to take off 3 black sticky pads that cover the screws.

    • Use the screwdriver(PH000) to remove the screws located under the pads.

    • Lift the stand in order to get to the fourth screw.

  3. FofrBAos2gkuX6o1
    FofrBAos2gkuX6o1
    LOnByTKR2u2mPl3v

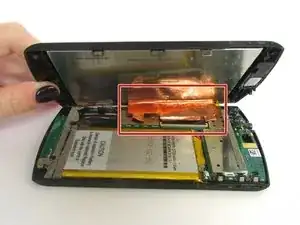

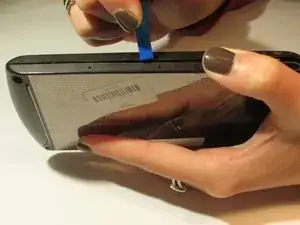

    • Carefully pry open all 4 sides of the Archos 5 using the plastic opening tool.

    • Once all sides of the device are pried open, gently open the device .

    • Be careful not to tear the foil which connects the LCD screen to the motherboard!

  4. 1cXc1oQXRrOYBW4G
    1cXc1oQXRrOYBW4G
    mPXkUEx2JsJyfKCf

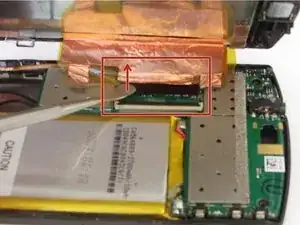

    • Once you have opened your device, fold the screen away from the battery.

    • Unplug the touch pad from the motherboard. Do this by applying pressure on the thin black piece(attached at the bottom of the metallic foil) Press the plastic spudger against the thin black piece and release it.

    • Use a plastic spudger instead of a metal spudger!

  5. WMJgiNWGLnGBDwyn
    WMJgiNWGLnGBDwyn
    OrUWlDRJaEs45jsV

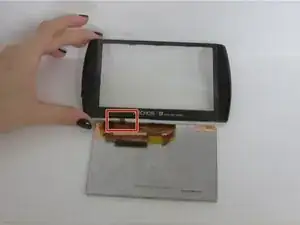

    • Using the plastic opening tool, lift the touch pad away from the cracked screen

    • Be careful not to pull or tear the small film/wires as shown in the picture. These are vital to connecting the glass screen and the LCD screen.

  6. 443qCWSGKC5YVY2Z
    443qCWSGKC5YVY2Z
    NYjOYZlPpMBKsOZF

    • Lift the cracked screen off of your Archos 5 using the regular plastic spudger.

    • Be careful not to rip or tear the film connecting the glass screen and the LCD screen.

  7. FjYIMjAmOXqWnhGo

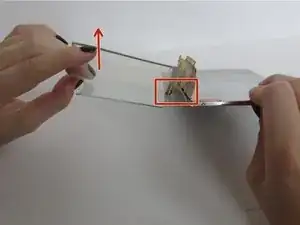

    • Peel the plastic screen away from your shattered glass screen, and replace with your new glass screen.

    • The film connecting the glass screen and the LCD screen is attached the plastic and will peel away with it. Be careful not to rip or tear it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
