Archos 97 Carbon Display Screen Replacement

Geschrieben von: Allyson Seber
  • Kommentare: 1
Archos 97 Carbon Display Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

30 - 45 Minuten

Einleitung

If the display screen on an Archos 97 Carbon tablet is damaged, this guide can aid in replacing the damaged display.

If you are looking to simply reassemble an already removed display screen, you may proceed to Step 5 - Step 1, backward.

Before beginning to remove or replace the damaged display, make sure that the device is completely powered off and that it is not connected to any charging ports or headphone ports. We recommend replacing the display in a well-lit environment to ensure that you can see the repairs you are making on the device.


  1. RJyvImXvLjtraMLM
    RJyvImXvLjtraMLM
    UaVGOASZBkSd6ZXw

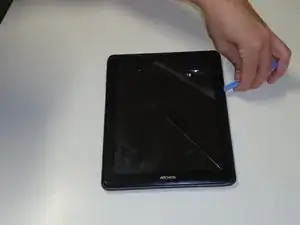

    • Lay your tablet upwards facing you.

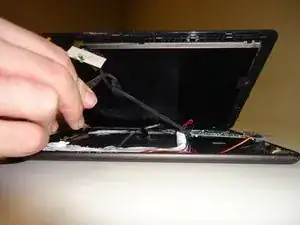

    • Using the opening tool, begin by prying the tablet starting in the top left corner. This can be found near the volume and power buttons.

    • Begin to work your way around the tablet in a clockwise motion to separate the screen from the cover.

  2. bD3VuoQLCshZDjhO
    bD3VuoQLCshZDjhO
    GfLJ6nPdtUc5WJBT
    YEGUEfieWjJZ3VTm

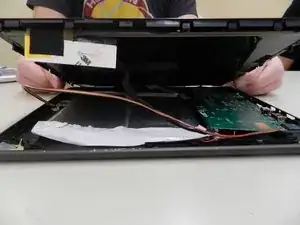

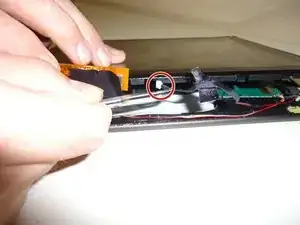

    • Once you have opened the screen, you will see two cables that connect the screen and the interior of the tablet.

    • Remove the white tab located on the right side of the interior by removing the tape and plug that connects it to the tab.

  3. dyqWtcv4pRTJVOYZ
    dyqWtcv4pRTJVOYZ
    sUB4eGACAhLRZZNl

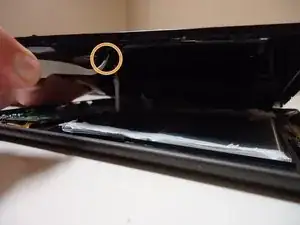

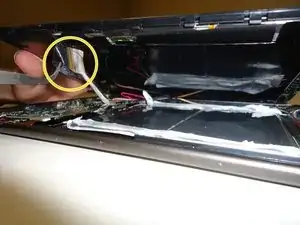

    • On the left side of the tablet, you will see a silver cable connecting the screen to the motherboard.

    • Using the tweezers, remove the black tape that is connecting the cable and screen. This will allow the gold connector to come loose.

    • The screen should be separated from the tablet.

  4. dGbfFXjQrdcCGWv1
    dGbfFXjQrdcCGWv1
    Js4hZ2mTIhg5QIgg

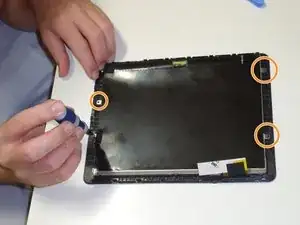

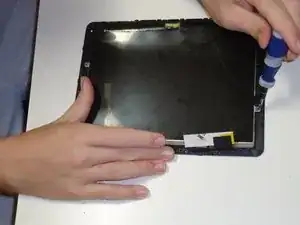

    • Remove the screws on the backside of the screen using a screwdriver.

    • There are four screws; one is covered by tape.

  5. 2BQRVJ5wHNkWZp6u
    2BQRVJ5wHNkWZp6u
    HYZD6iYlA3PngM2f
    KWD4fNYjZoncL31A

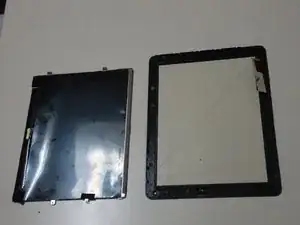

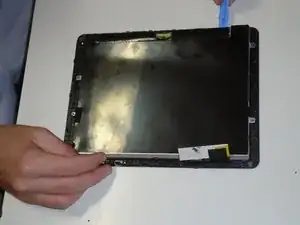

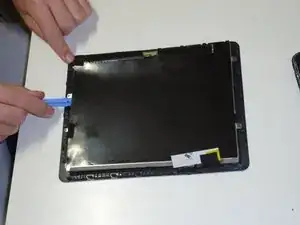

    • Gently pry the screen from the black frame that surrounds it using the opening tool.

    • Work in a clockwise motion until the screen is detached from the frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
