ArmorAll AA255 Motor Replacement

Geschrieben von: YeaJun Yoo
  • Kommentare: 5
ArmorAll AA255 Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 35 Minuten

Einleitung

The device will be disassembled down to the motor, the power cords will be disconnected, and the motor removed of your ArmorAll AA255.

  1. 1XxrClfqPVThO21R

    • Remove the orange main housing unit from the vacuum bucket by pulling outward on the handle tabs while lifting upward as shown.

  2. hEqHudwXeMXdYoBq

    • Remove the five 15mm PH2 screws.

  3. ngcLosmiT3UktImv

    • Remove the 15 mm T20 screw. This screw is located nearest the power cord.

  4. phddWsK1bMJiuSWt
    phddWsK1bMJiuSWt
    qaLEIuVJNBqFtPCj

    • Gently separate the upper and lower sections of the main housing.

    Where do I get the power switch?

    Life Insurance -

  5. kjPgxoF3QtufXf5R
    kjPgxoF3QtufXf5R
    tOZNMgAVrWKQP5RL
    bdbm55RHsl3vOyAq

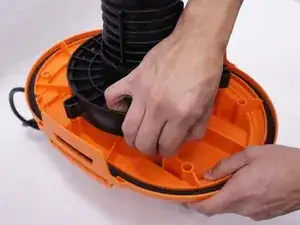

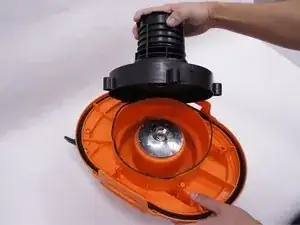

    • Use a PH2 screwdriver to remove the five 15mm screws on the ball cage under the main housing.

    • Pull the ball cage to remove it from the main housing.

  6. ItmYqqO66qE33SYF
    ItmYqqO66qE33SYF
    lAyKrckoTnbTMllp
    oyEfcNOED3KfY3HC

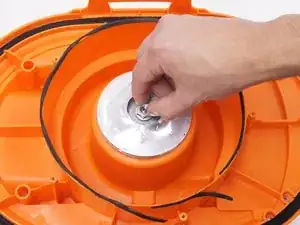

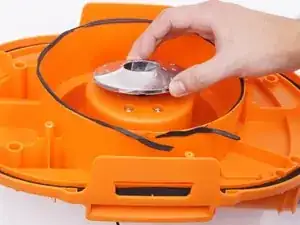

    • Remove one 13mm nut from the main housing.

    • The metal ring under the nut has sharp edges. You may need to use a tool such as pliers to prevent injury.

    • Remove metal ring from the main housing.

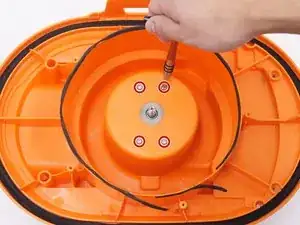

    • Use a PH2 screwdriver to remove the four 12mm screws from the main housing.

  7. TaMhuN2UnWfYol1q
    TaMhuN2UnWfYol1q
    5Aos2Q2eVpNx1cU1
    Us2q2iTVDVqPB5Xf

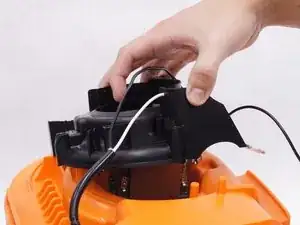

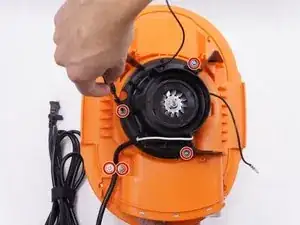

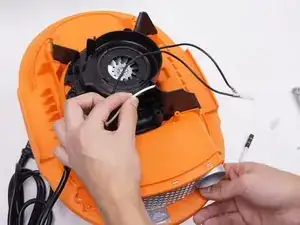

    • Turn the whole body over to separate motor cover.

    • Use a PH2 screwdriver to remove the five 15mm screw.

    • Remove the white power wire from the motor cover.

    • Pull the motor cover from the main housing.

  8. e3SZfNLQxyWCqLnY
    e3SZfNLQxyWCqLnY
    Km1qgnKQqRDOSejj

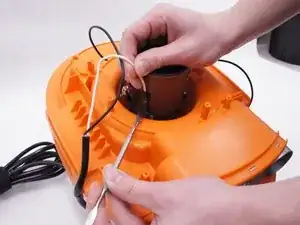

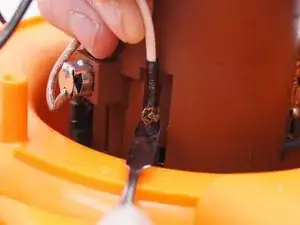

    • Use a plastic opening tool to remove two cables from the motor. One white cable is from the power cord, and one black cable is from the switch.

    • When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The regular black nylon spudger or a plastic opening tool should be used whenever possible.

    • You may need to mark the color of the wire on each terminal for reassembly.

  9. ellJ6XbGWAiNR3Uh
    ellJ6XbGWAiNR3Uh
    bBxZa3qeECeKRTeE

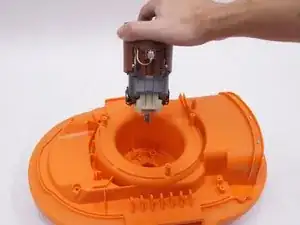

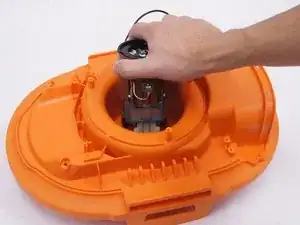

    • The motor is ready for replacement. Pull the motor to separate.

Abschluss

To reassemble your device, follow these instructions in reverse order.
