ArmorAll AA255 Switch Replacement

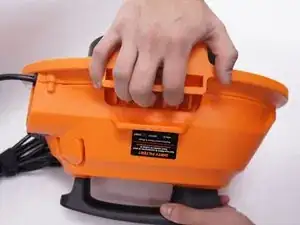

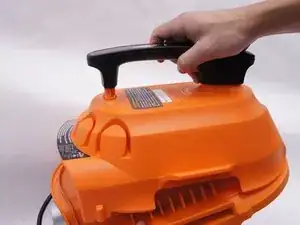

Remove the orange main housing unit from the vacuum bucket by pulling outward on the handle tabs while lifting upward as shown.

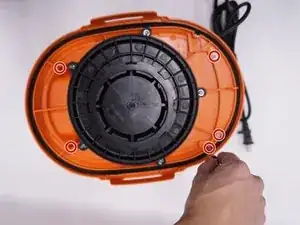

Remove the five 15mm PH2 screws.

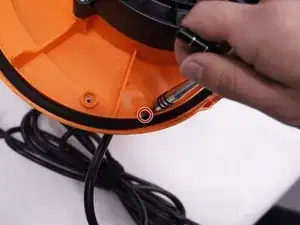

Remove the 15 mm T20 screw. This screw is located nearest the power cord.

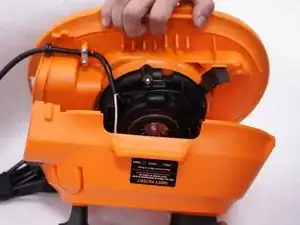

Gently separate the upper and lower sections of the main housing.

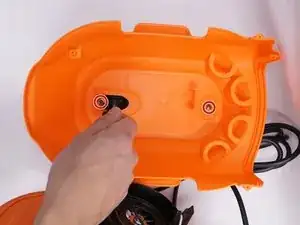

Using a PH2 screw head, unscrew the two 15mm screws as shown.

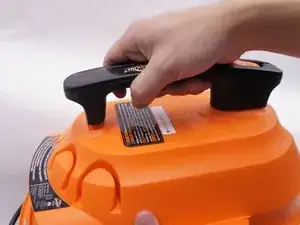

Pull the black handle.

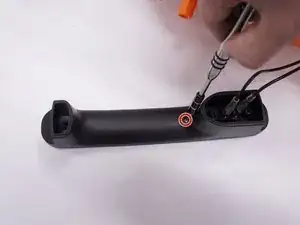

Using a PH2 screwdriver, unscrew the single 12mm screw shown.

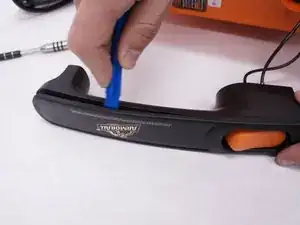

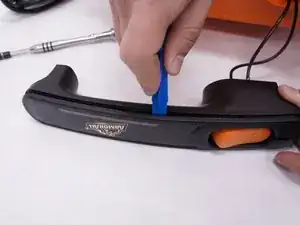

Use the blue opening tool to open up the black handle.

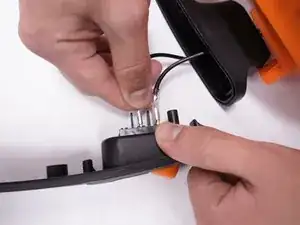

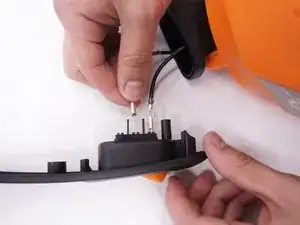

Using your fingers, gently take out the black cords.

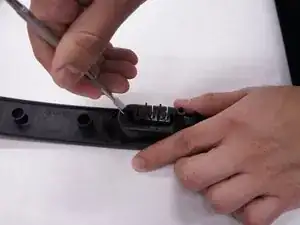

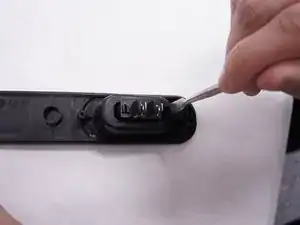

Using the spudger, take out the switch. Do this by pushing the spudger against the switch on both sides as shown and then pull the switch out.

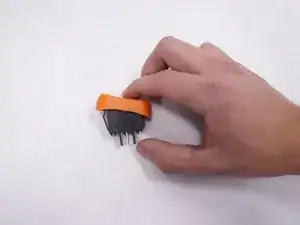

Replace the switch shown.
